Sun Roof Glass Only

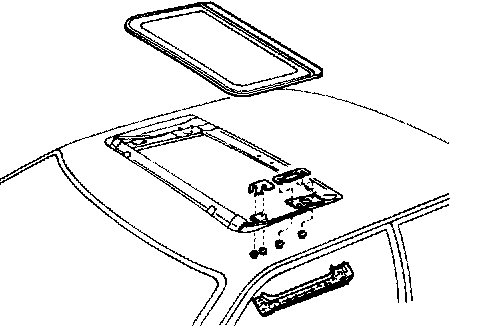

REMOVAL OF SLIDING ROOF GLASS

TO REMOVE ONLY SLIDING ROOF GLASS




(a) Slide the sunshade trim rearward.
(b) Remove the inner panel side garnish.
(c) Remove the front and rear shoe nuts.
(d) Remove the roof glass.
