Sunroof / Moonroof: Testing and Inspection

INSPECT SLIDING ROOF GLASS ALIGNMENT
(a) Start the engine and check the operation time of the sun roof.

Operation time: Approx. 5 secs.

(b) Check for abnormal noise or binding during operation.
(c) With the sun roof fully closed, check for water leakage.

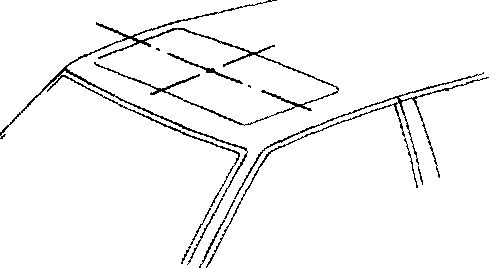

(d) Check for a difference in level between the sliding roof glass and roof panel.

Front side: 1.9 mm +2.0/-1.0 mm (0.075 in. +0.079/-.039 in.)
Rear side: 1.9 mm +2.0/-1.0 mm (0.075 in. +0.079/-.039 in.)

IF THE SLIDING ROOF DOES NOT OPERATE:




(a) Remove the control switch cover.

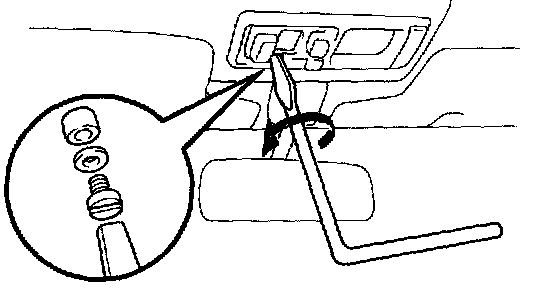

(b) Using a special crank-shaped screwdriver, remove the large screw inside.

NOTICE: Be careful not to lose the spring washer or shim.

(c) Manually operate the sun roof by inserting a special crank-shaped screwdriver into the hole and turning the drive shaft.
