Power Mirror Switch: Testing and Inspection

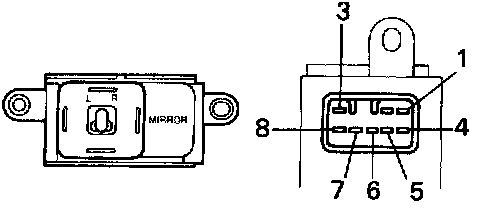

INSPECTION OF MIRROR SWITCH

INSPECT SWITCH CONTINUITV

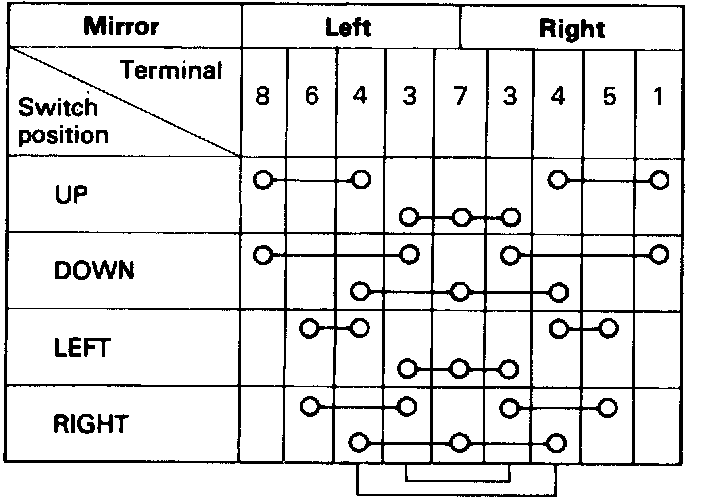

- Inspect the switch continuity between terminals.

If continuity is not as specified, replace the switch.
