Sunroof / Moonroof Limit Switch: Testing and Inspection

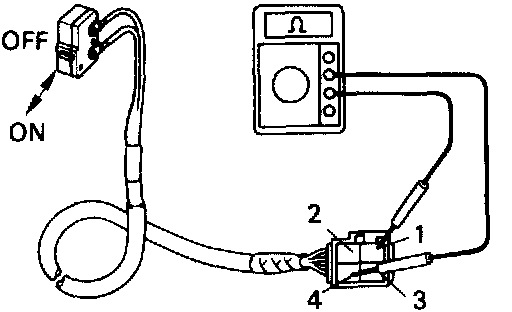

INSPECTION OF LIMIT SWITCHINSPECT SWITCH CONTINUITY
(a) Check that there is continuity between terminals 1 and 4 when the switch is ON.
(b) Check that there is no continuity between terminals 1 and 4 when the switch is OFF.
If continuity is not as specified, replace the switch.
