Diagrams
>>
Fluid Diagrams
Fluid Diagrams

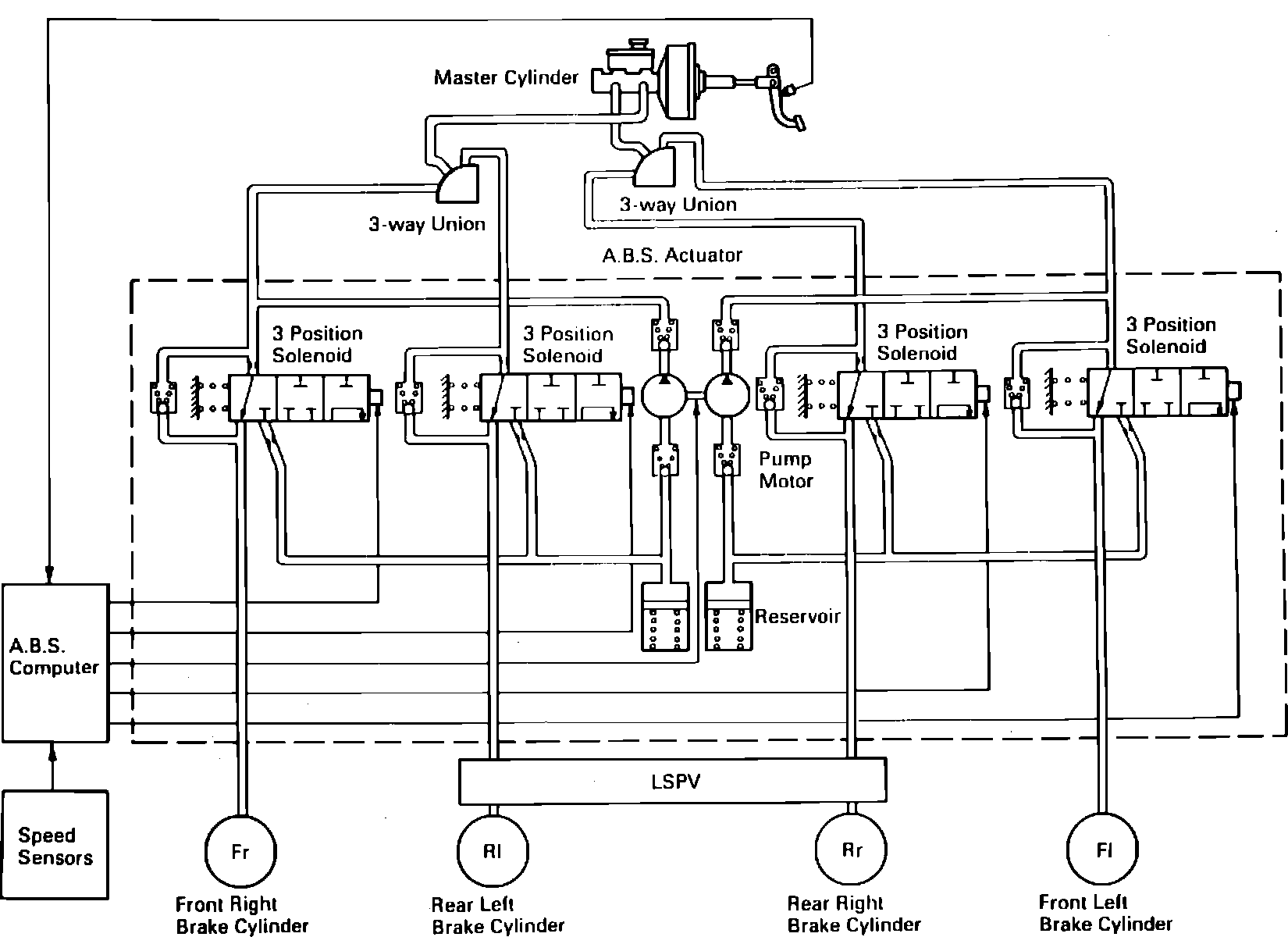

ABS Hydraulic Schematic:

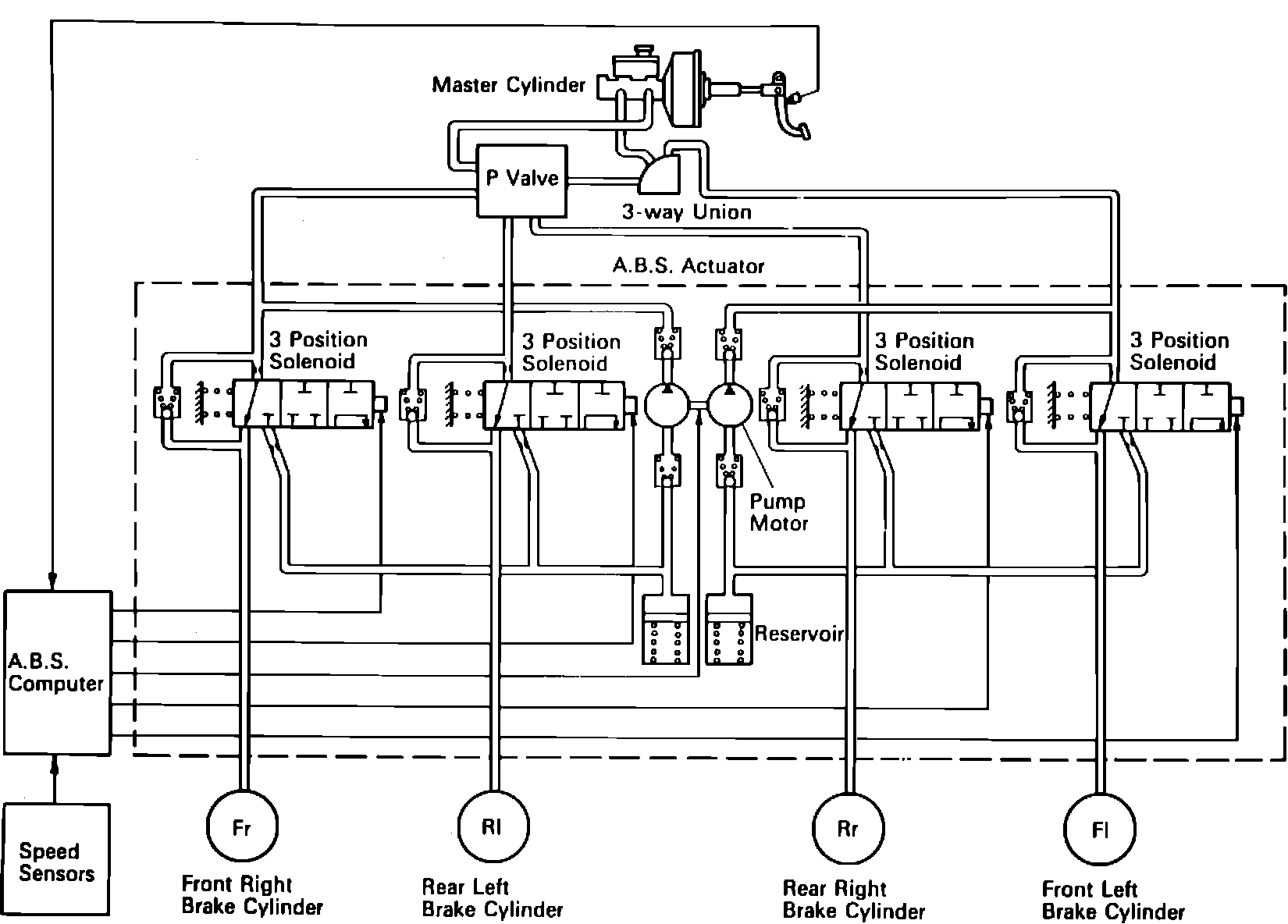

ABS Hydraulic Schematic:

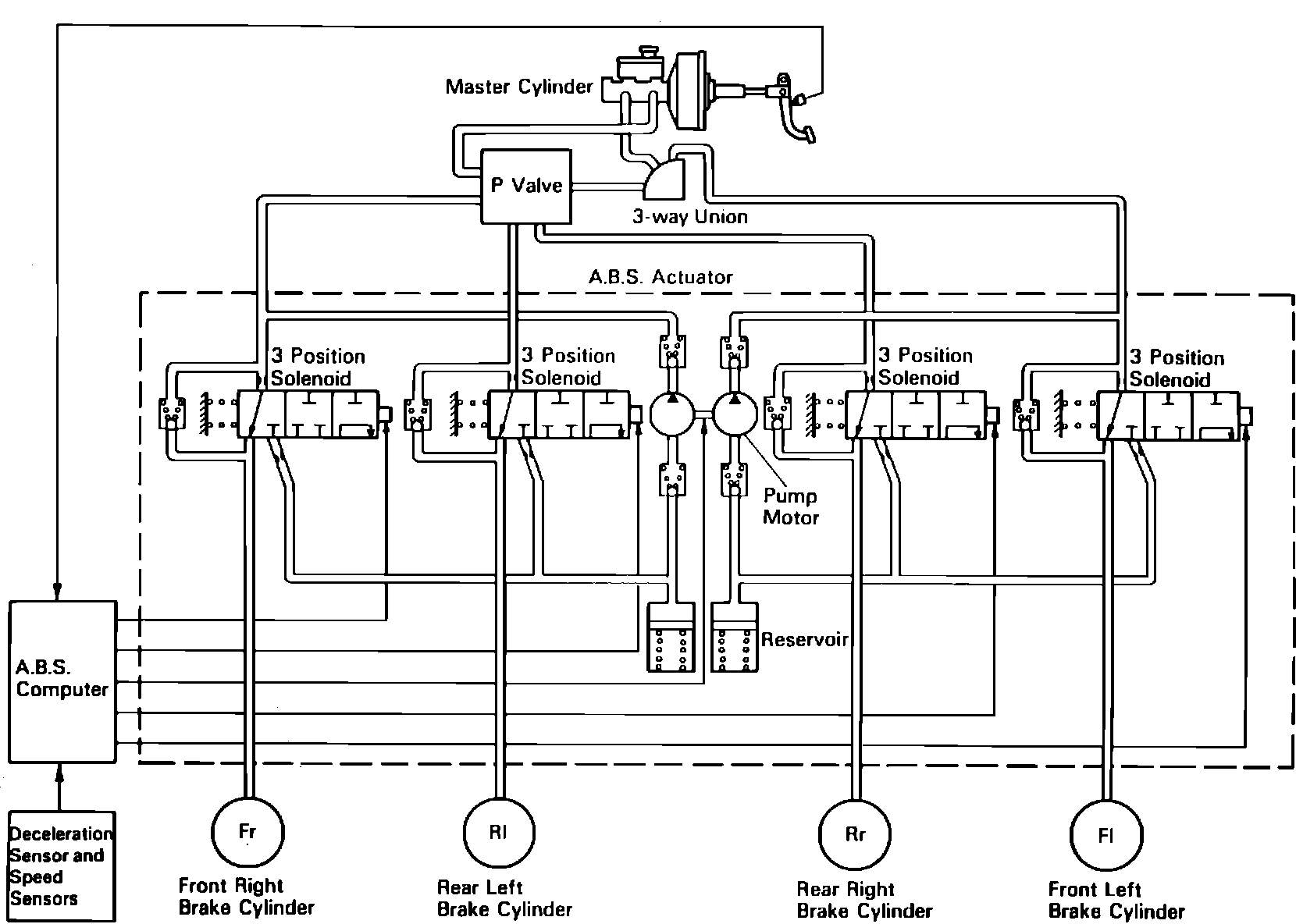

ABS Hydraulic Schematic:
