Symptom Index

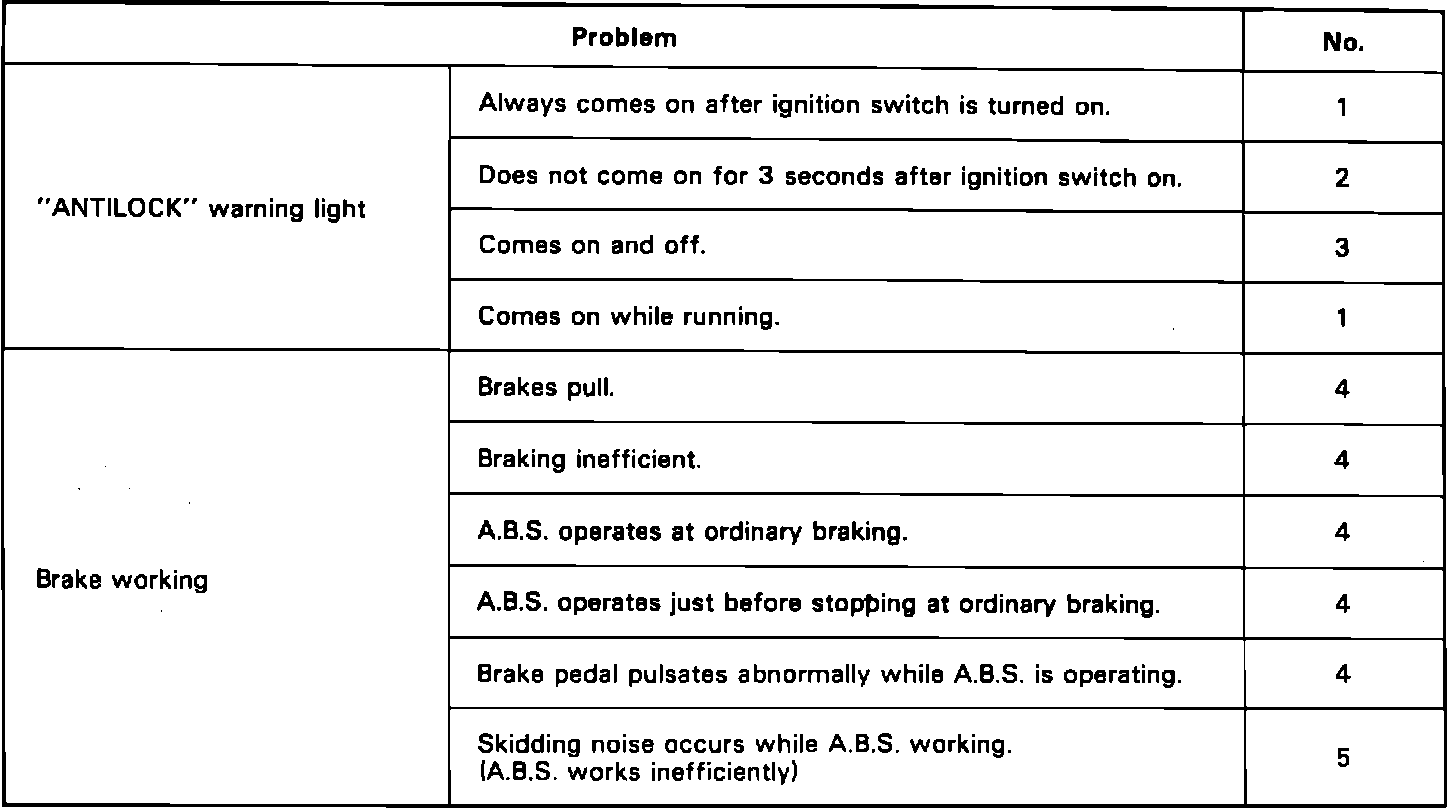

Symptom chart:

After checking the operation of the "ANTILOCK" warning light and checking the operation of the brake system on a test drive, refer to the chart for the correct symptoms displayed by the vehicle. The number (N0.) column indicates the DIAGNOSTIC PROCEDURE where testing should start.
