Brakes - Beveled Pad Reduces Squeak Noise

90toyota10

REFERENCE BRAKES
NUMBER 013
DATE 12-21-90
MODEL V V W/ABS





TITLE FRONT BRAKE, SQUEAK NOISE

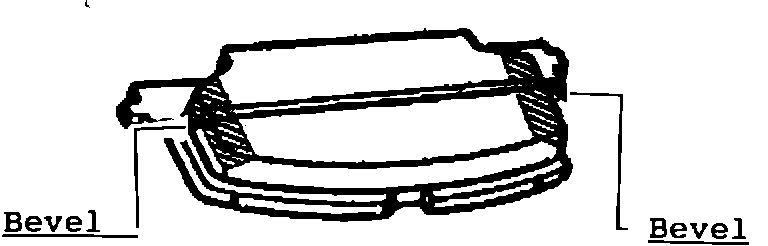

To reduce front brake squeaking noise, the outside edges of the front brake pad have been beveled as shown:


PRODUCTION EFFECTIVE:

From Vin Production Date
JT2VV21 # # L0120026 April, 1990
JT2VV21 # # L3012471 April, 1990

PART NUMBER INFORMATION:

PREV. PART NO. NEW PART NO. PART NAME
04491-32291 04491-32390 Front Disc Brake Pad Kit

Previous part and new part are interchangeable as a kit only.
