Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Stop Light Switch
Stop Light Switch
Stop Light Switch Check:
1.

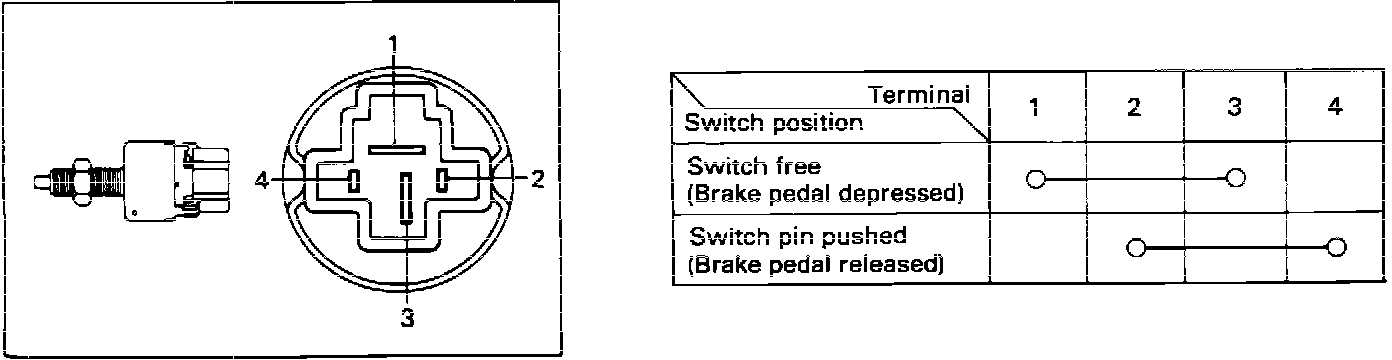

Check switch continuity as described on image chart.
2.
If not as specified, replace switch.
