Vacuum Pump

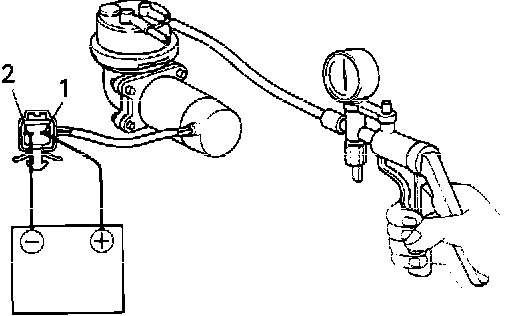

Vacuum Pump Check:

1. Connect vacuum gauge to ACT side of pump.
2. Connect battery positive to terminal 1 and negative to terminal 2.
3. Check that vacuum is 7.87 inHg (200 mmHg) or above.
4. If not as specified, replace pump.
