Home >> Toyota >> 1990 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Code Inspections >> Section A -- Power Source Circuit

Section A -- Power Source Circuit

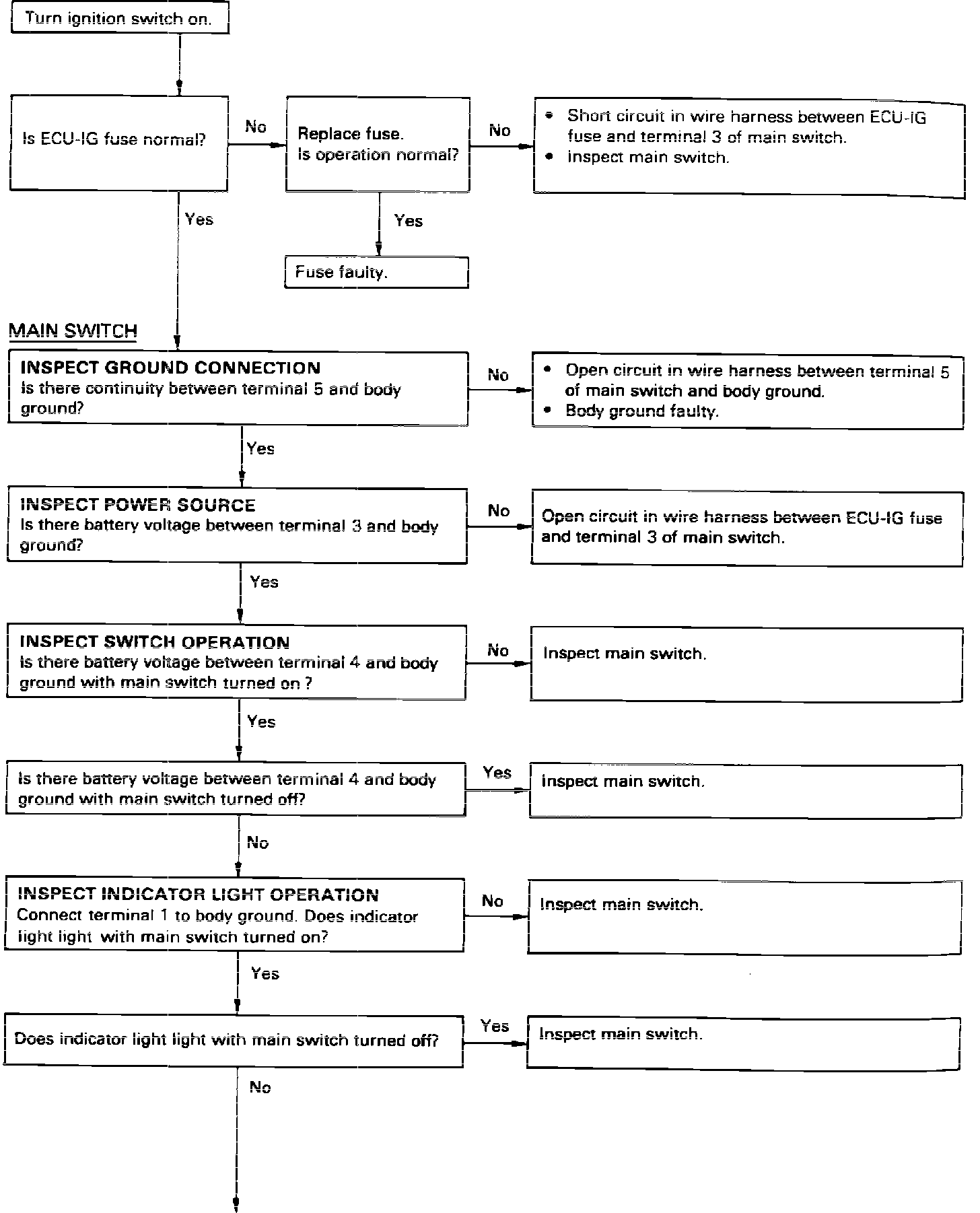

Power Source Circuit Inspection (Part 1):

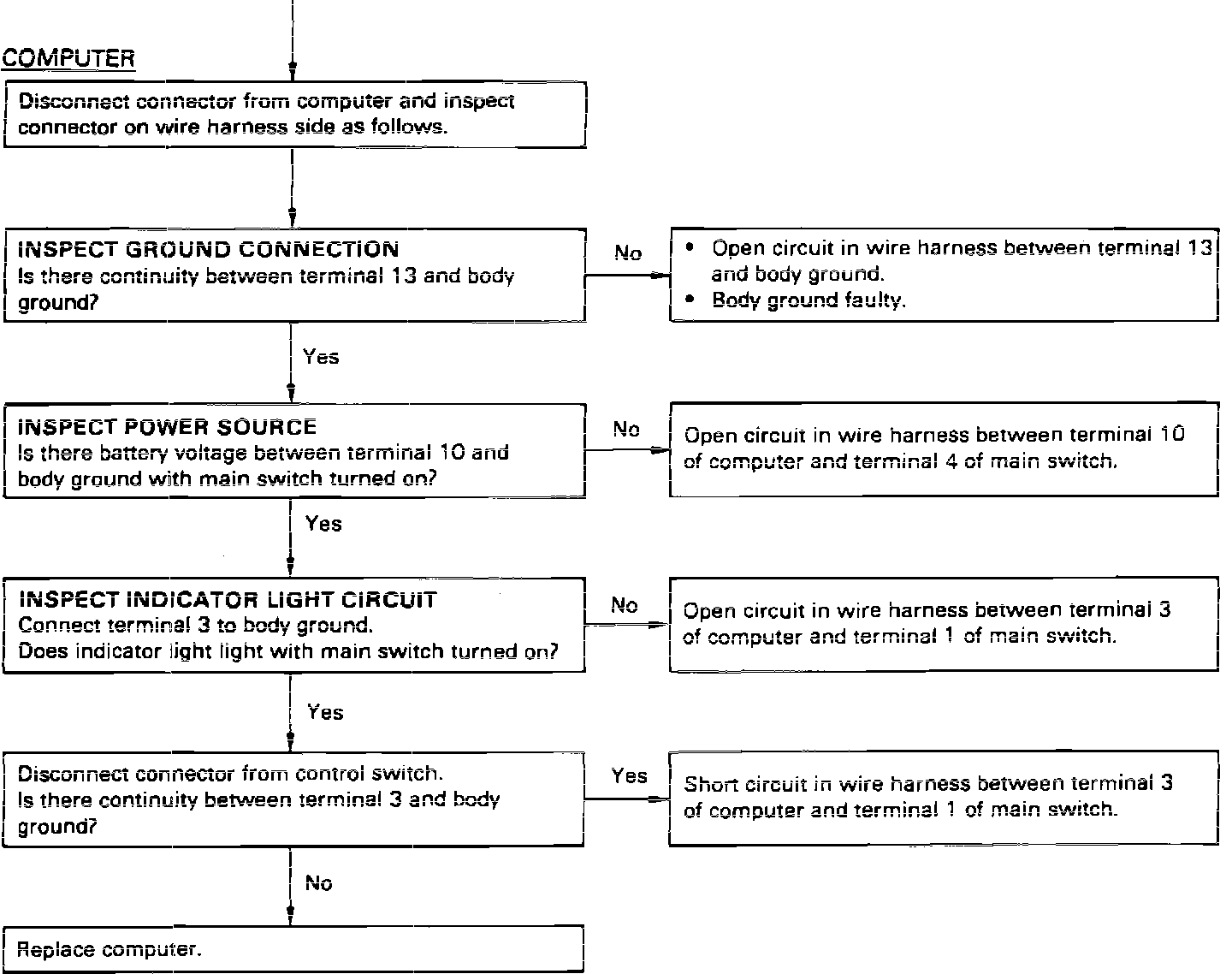

Power Source Circuit Inspection (Part 2):
