Section D -- Actuator Circuit

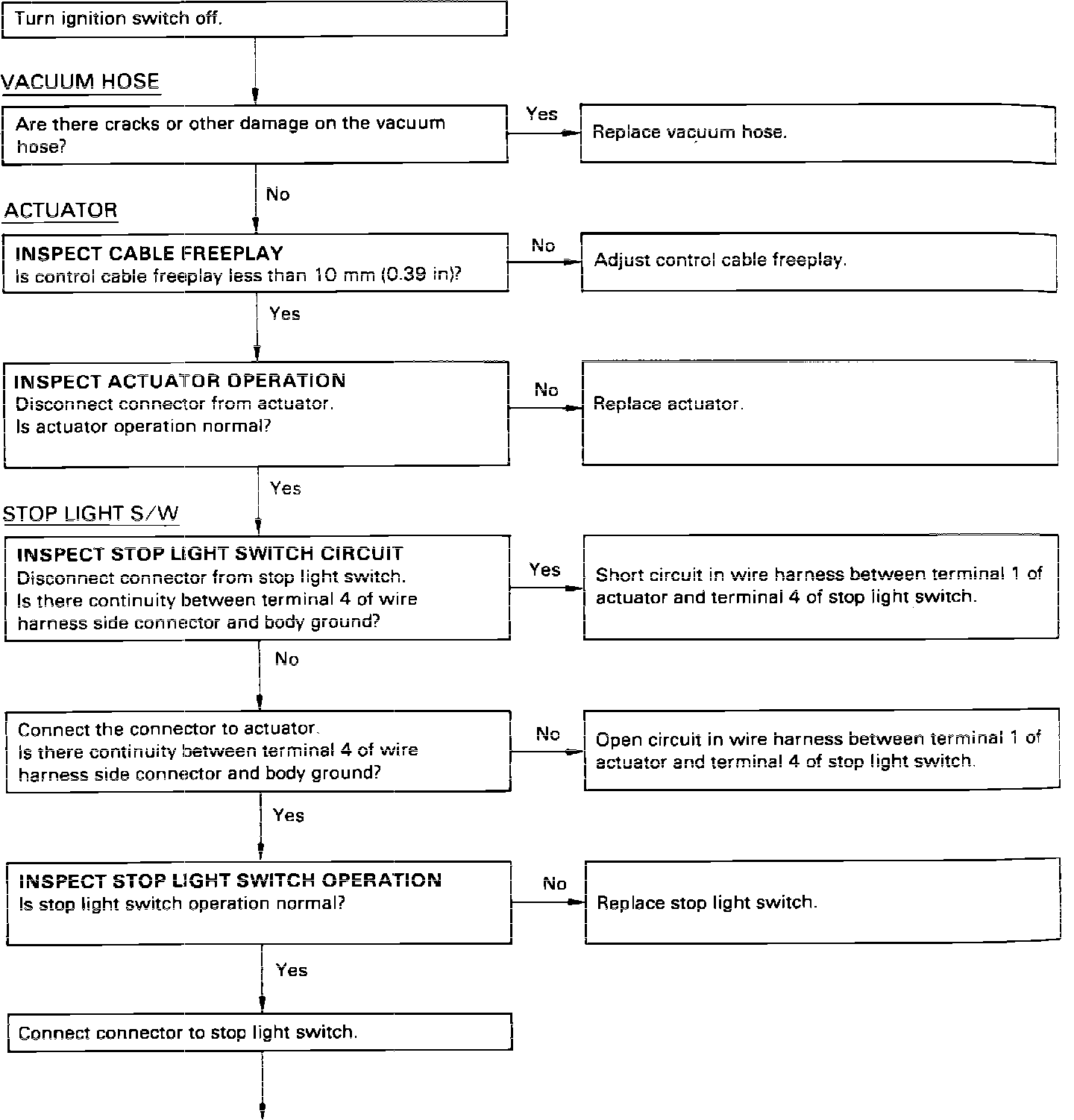

Actuator Circuit Inspection (Part 1):

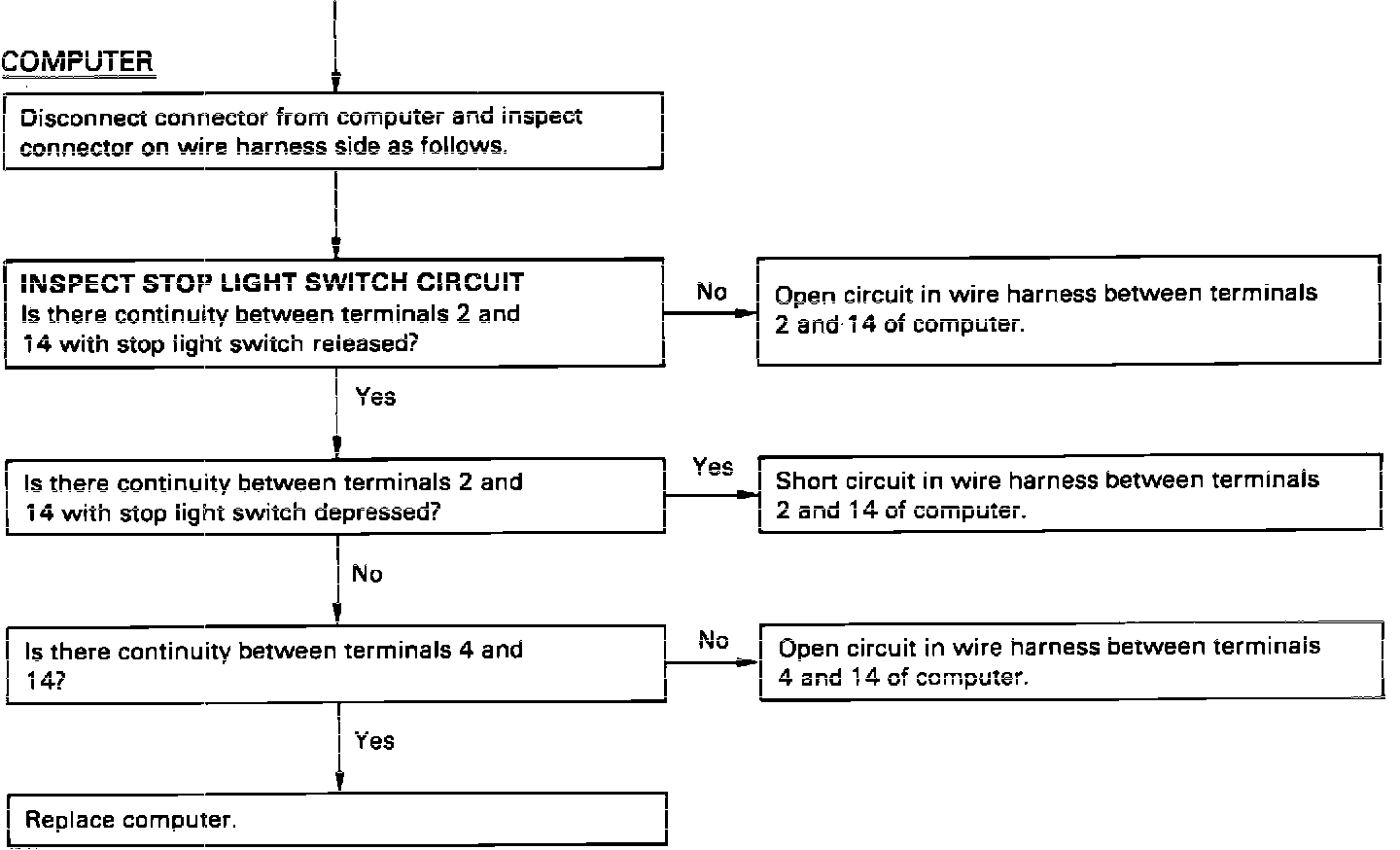

Actuator Circuit Inspection (Part 2):
