Section J -- Vacuum Circuit
Section J -- Vacuum Circuit

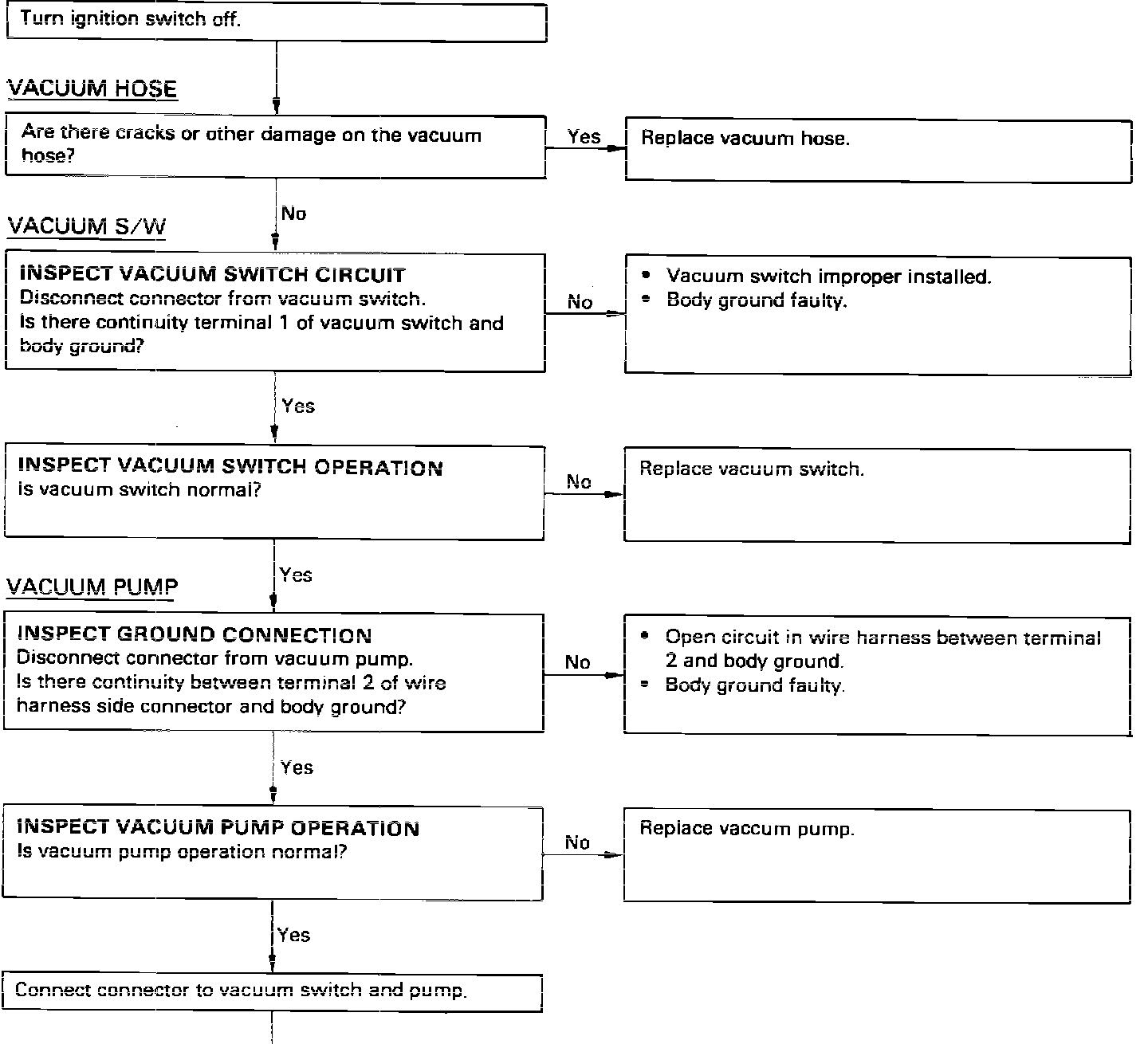

Vacuum Circuit Inspection (Part 1):

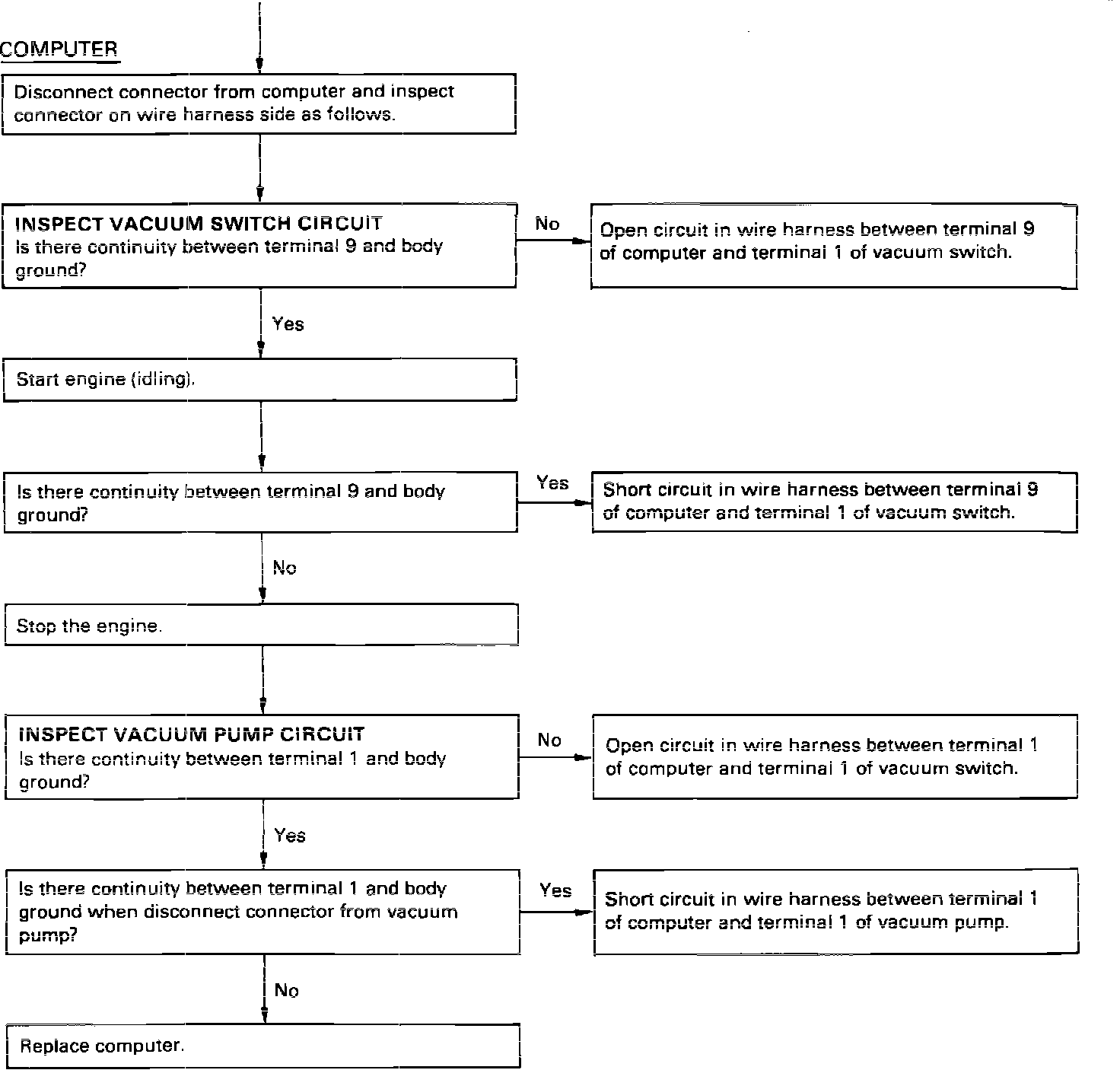

Vacuum Circuit Inspection (Part 2):
