Cruise Control
Cruise Control
WIRING DIAGRAM

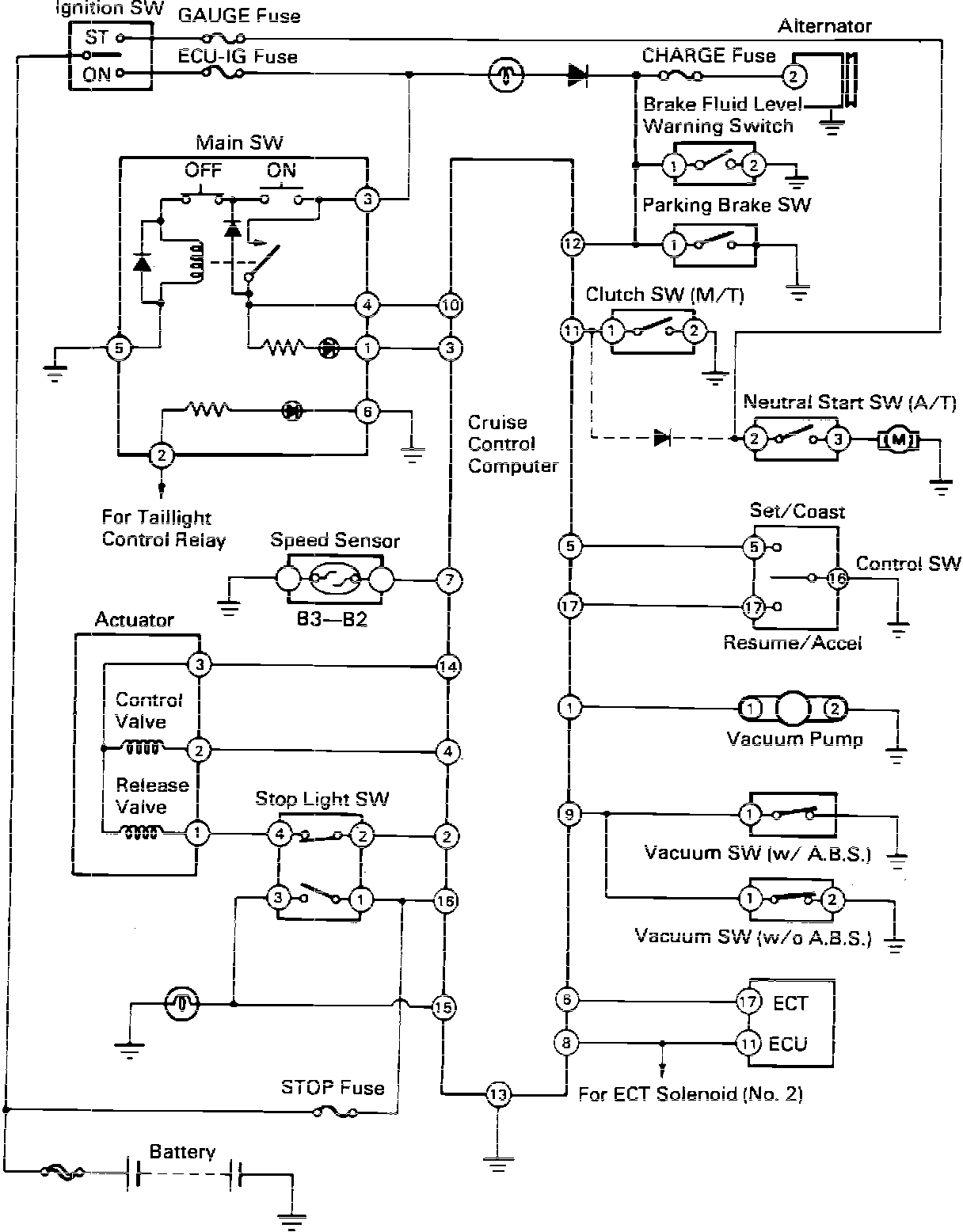

Cruise System Wiring Diagram:
CONNECTORS

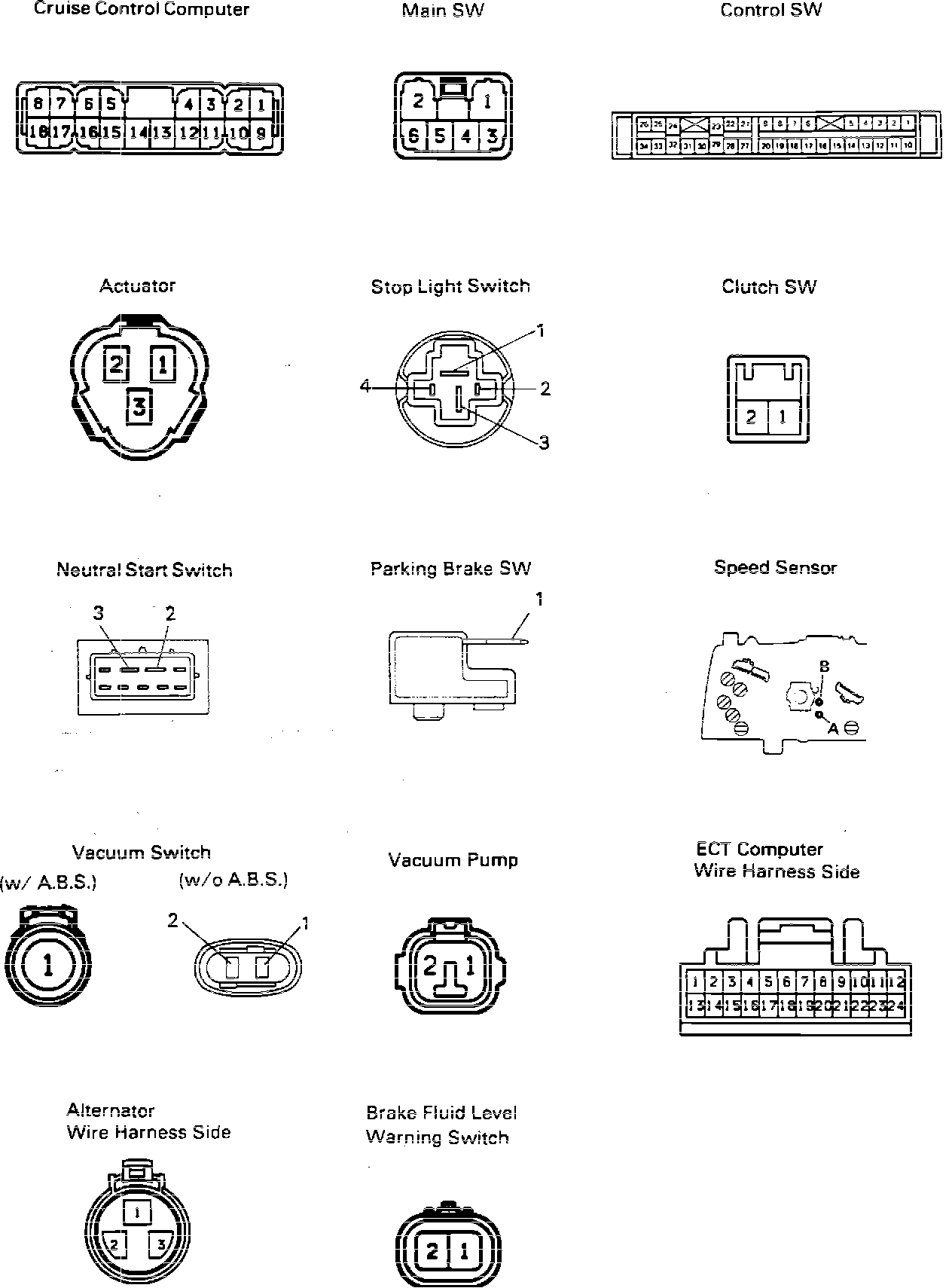

Cruise System Connectors:
