Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Body
>>
Sedan
Sedan

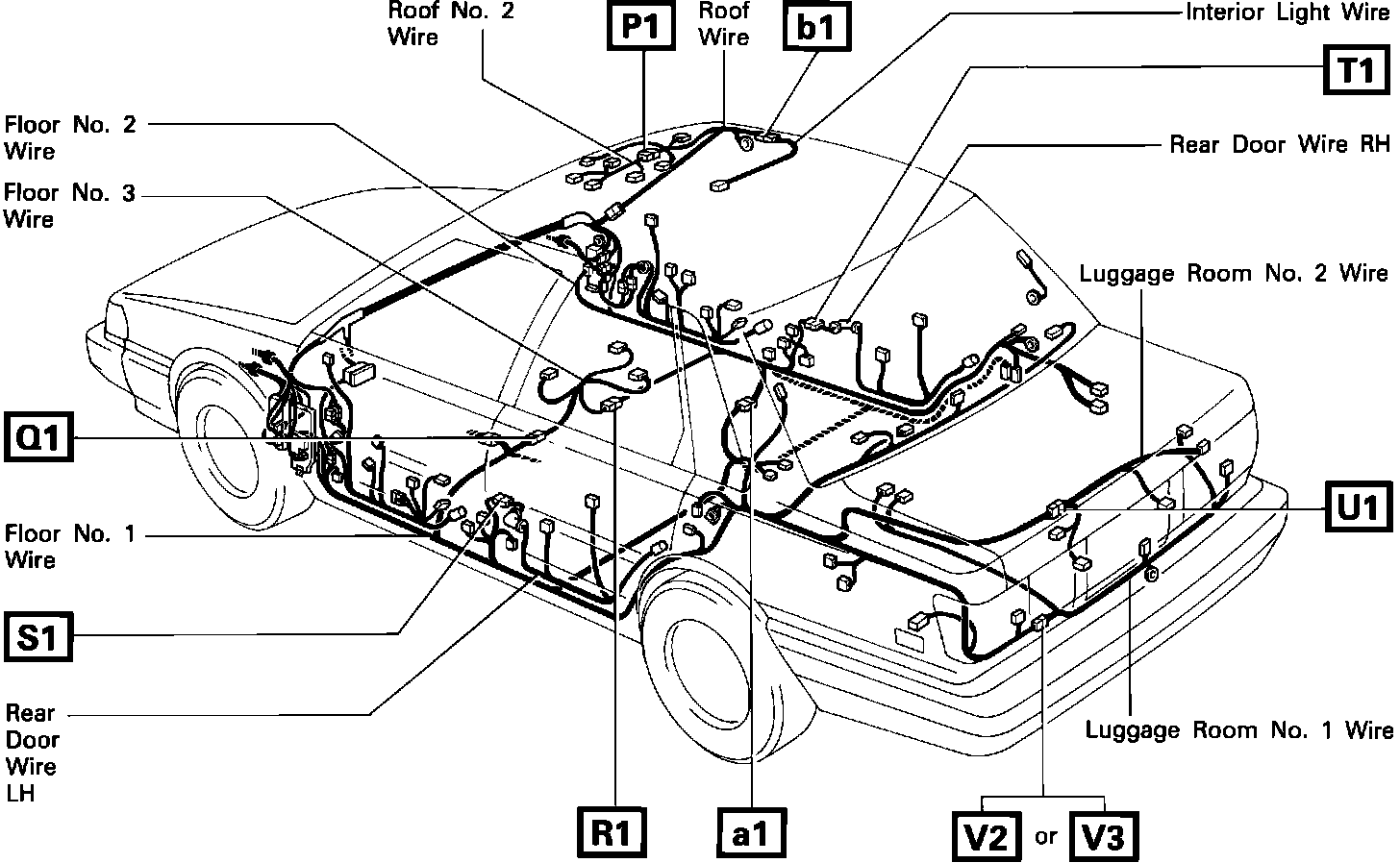

Location Of Connector Joining Wire Harness And Wire Harness (Sedan):

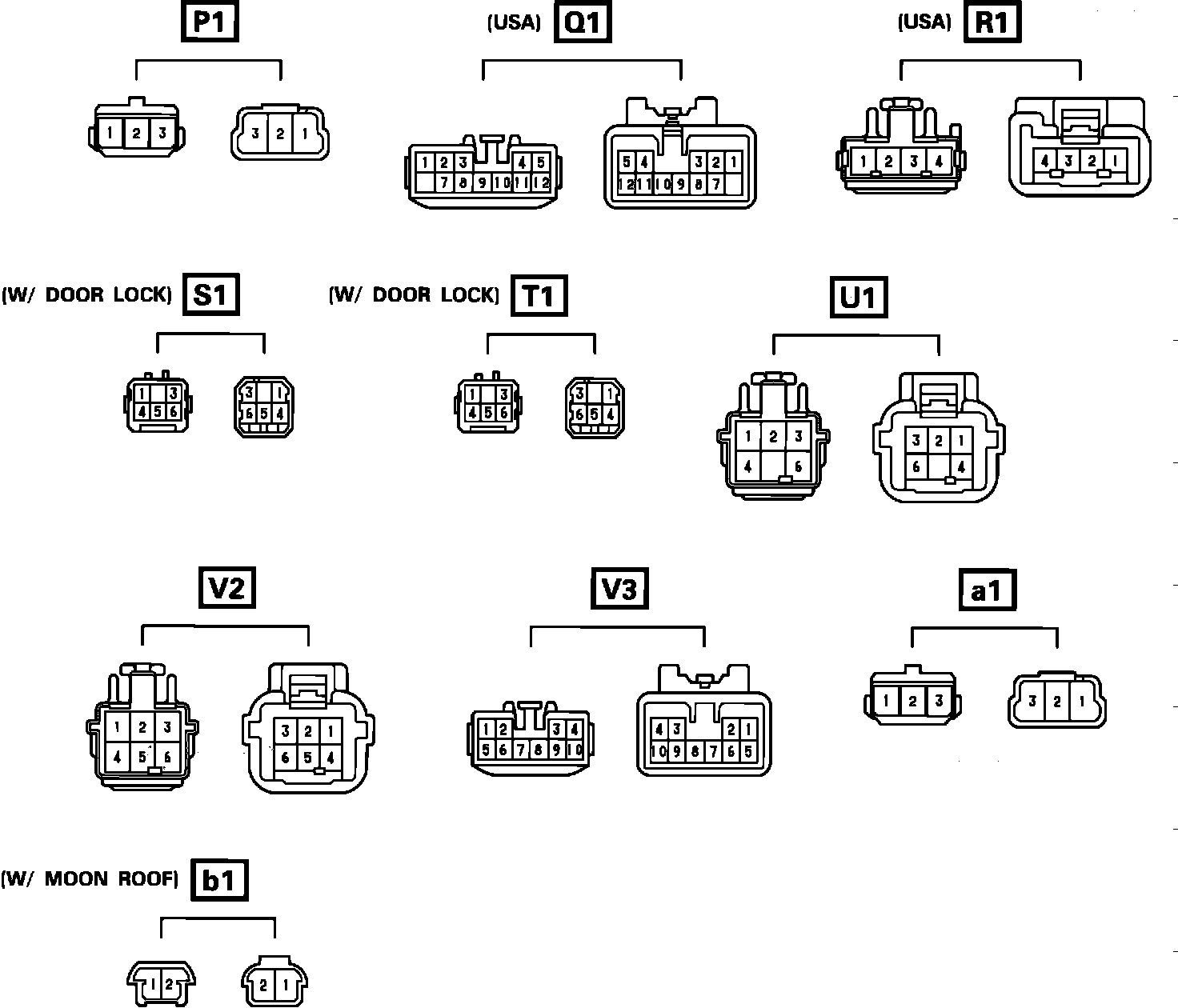

Connector Joining Wire Harness And Wire Harness:
