System Diagram

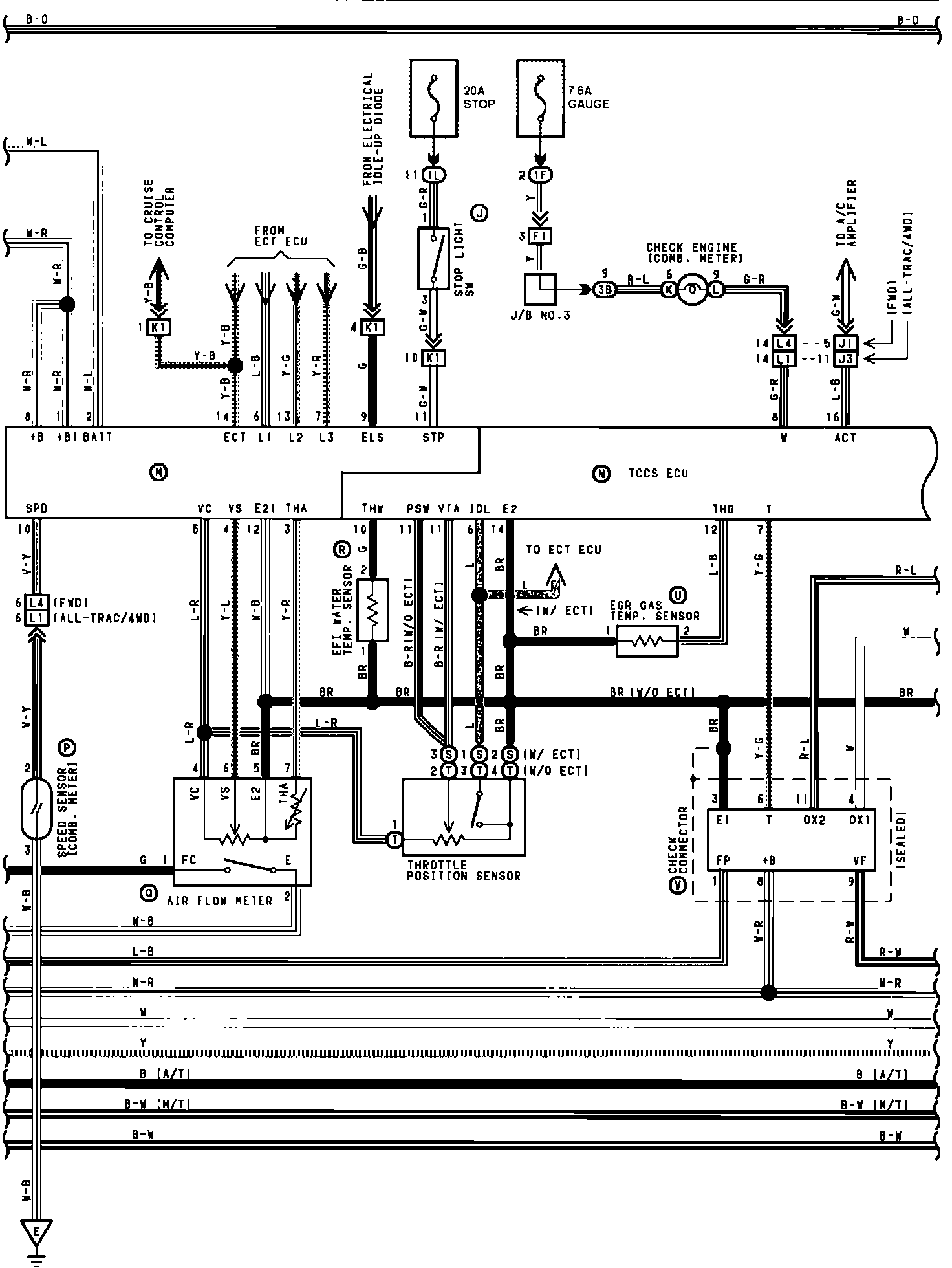

Engine Controls (Part 1 Of 3):

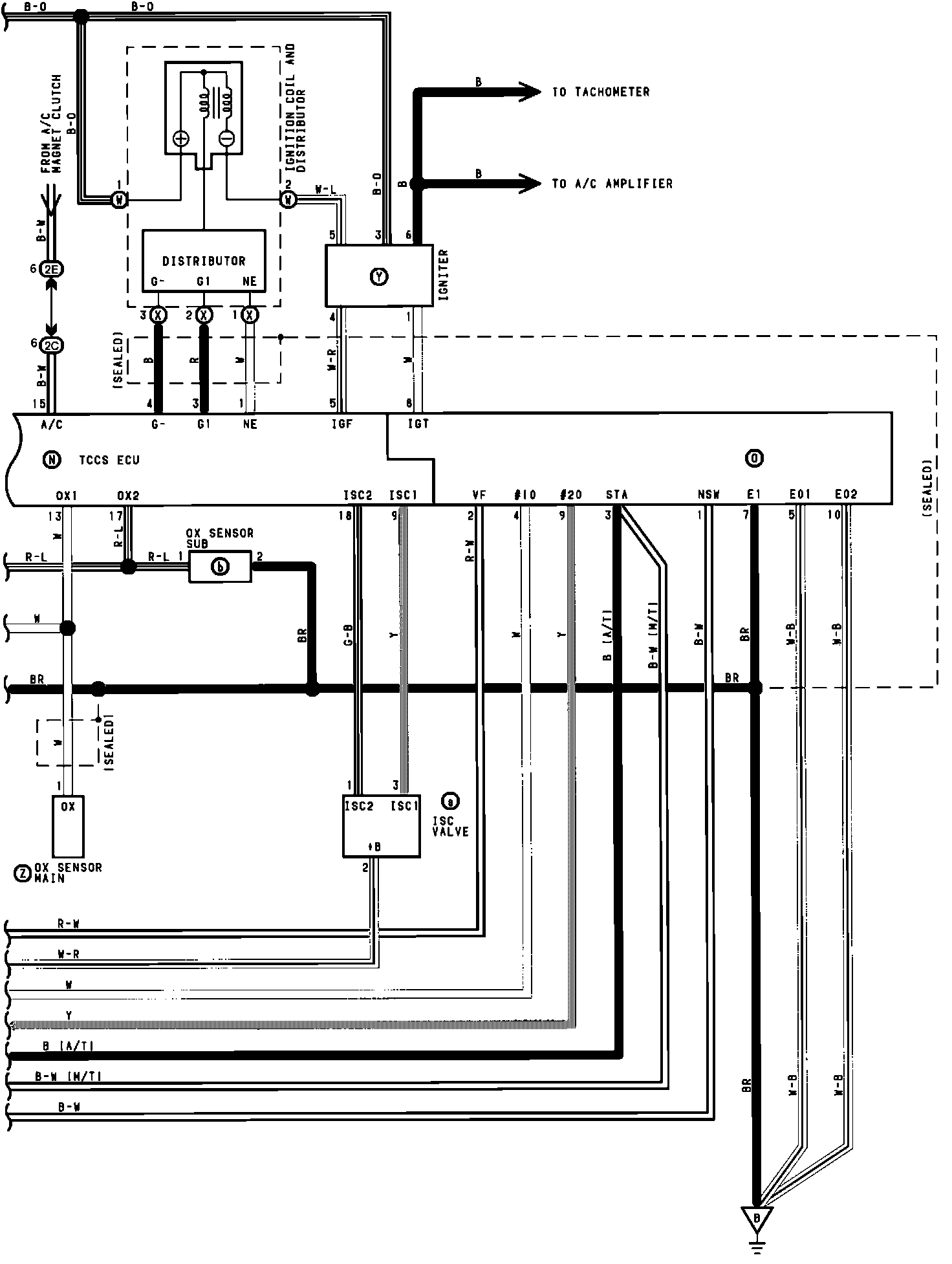

Engine Controls (Part 2 Of 3):



Engine Controls (Part 3 Of 3):
