Instrument Panel Gauges
>>
Tachometer
Tachometer

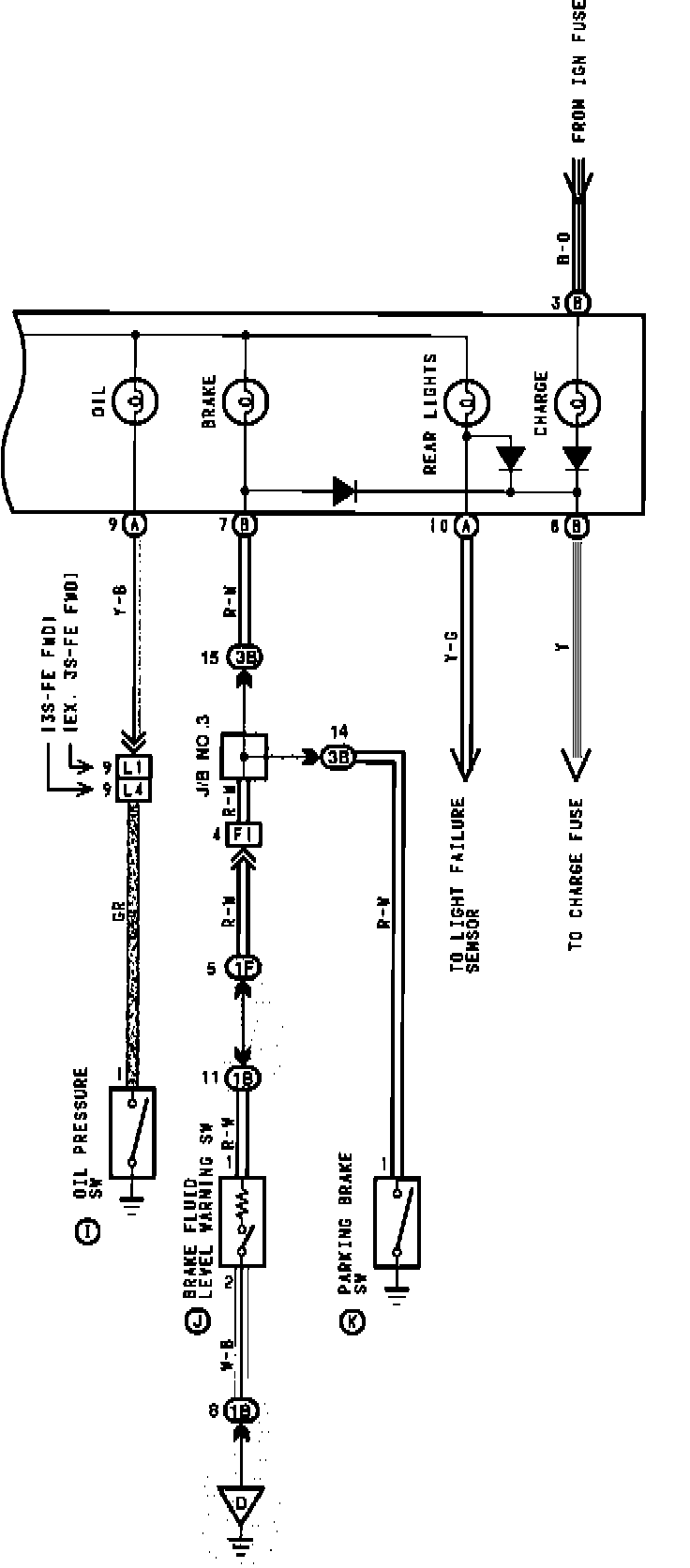

Instrument Panel: Combination Meter:

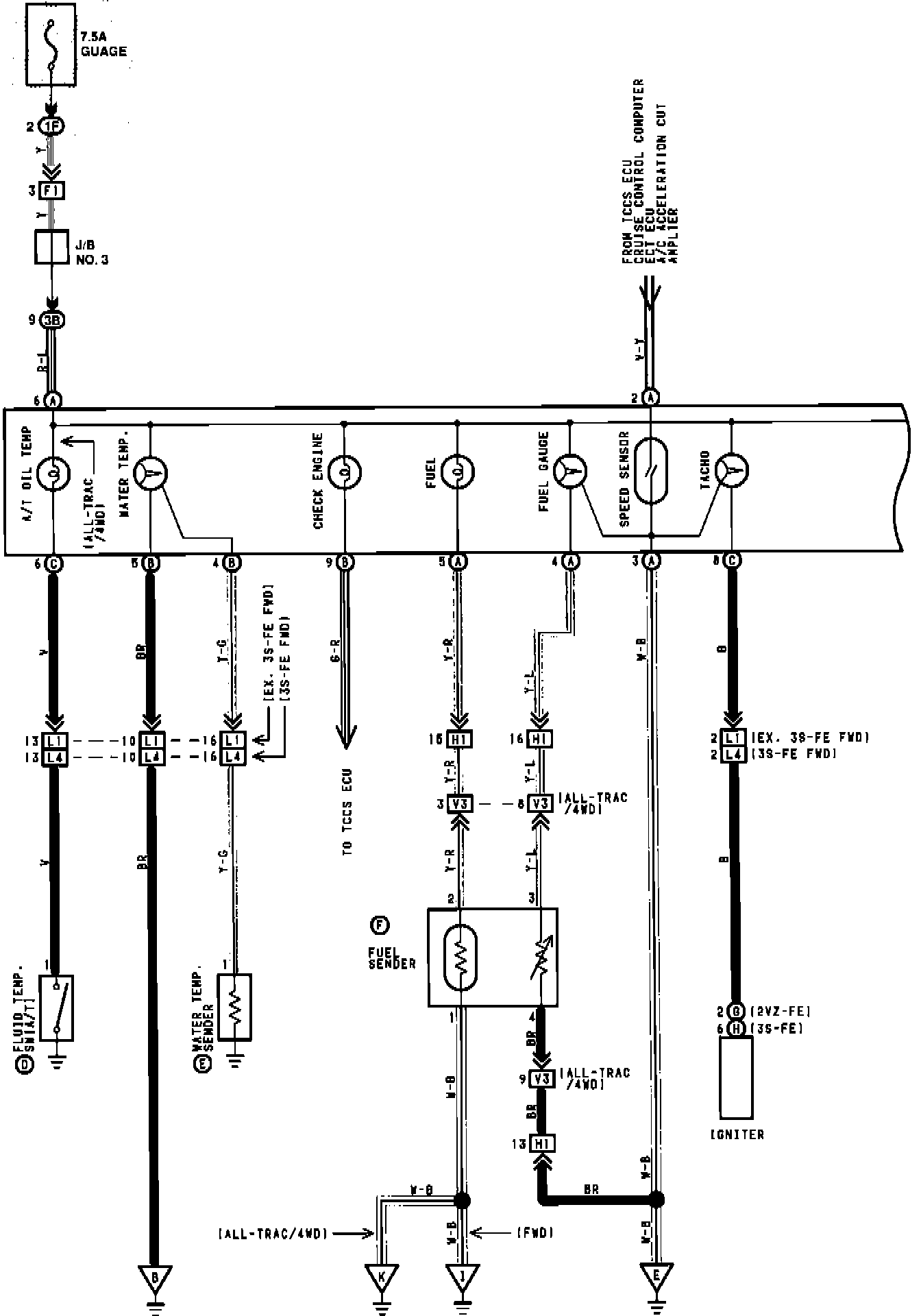

Instrument Panel: Combination Meter:
