Diesel Data: Automotive Repair

Home >> Toyota >> 1990 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Backup Lamp

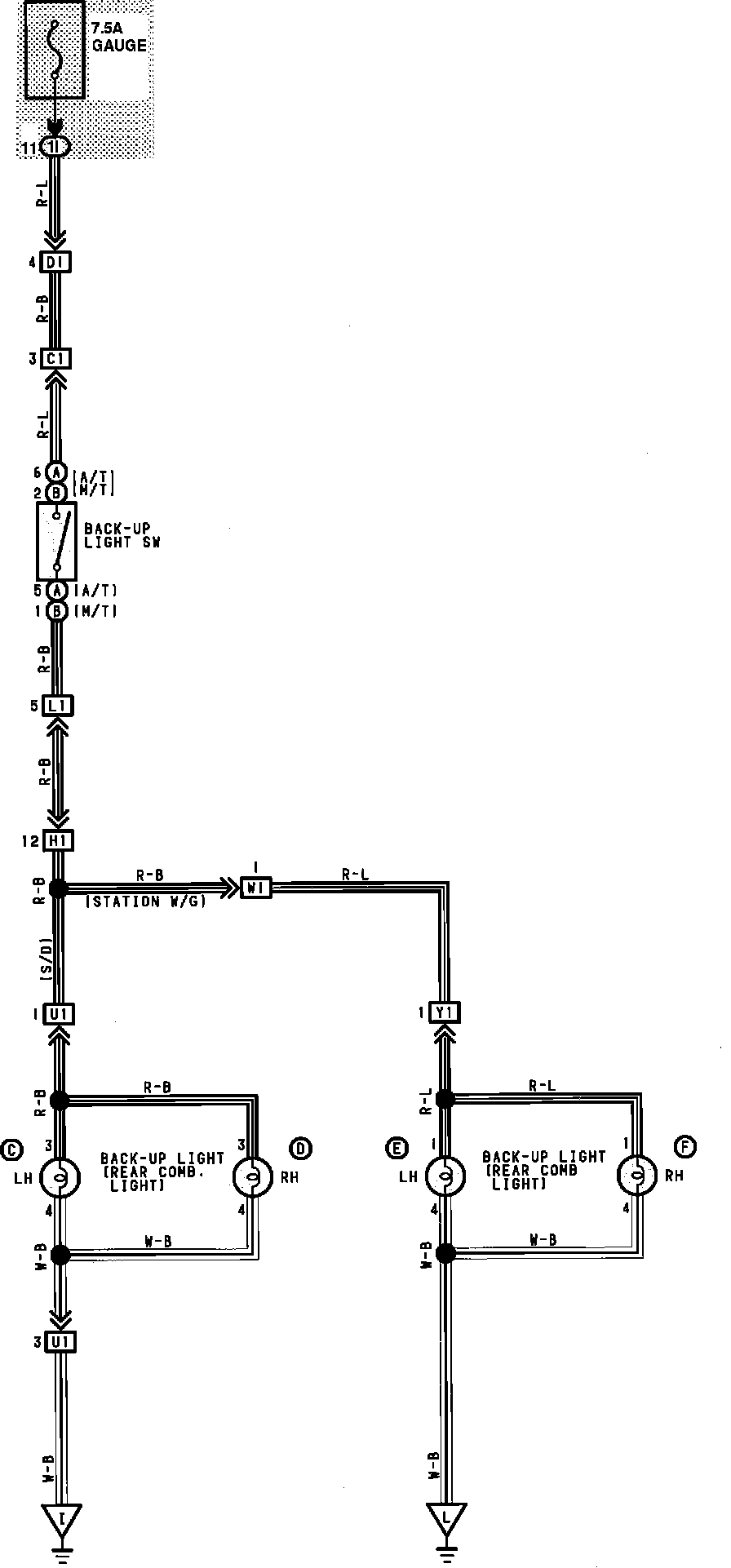

Backup Lamp

Back-Up Lights:
