Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Courtesy Lamp
>>

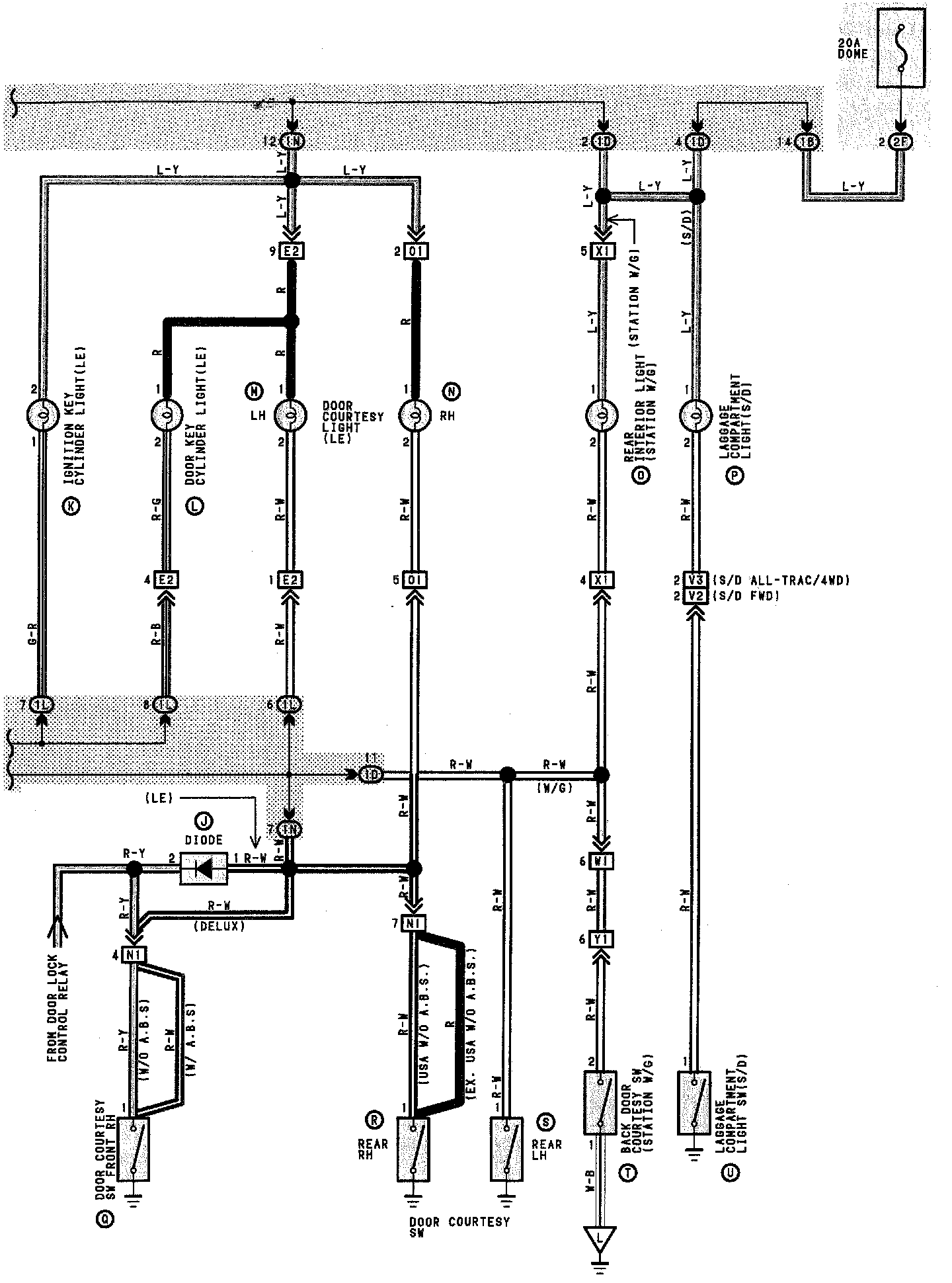

Interior Lights (With Door Lock)

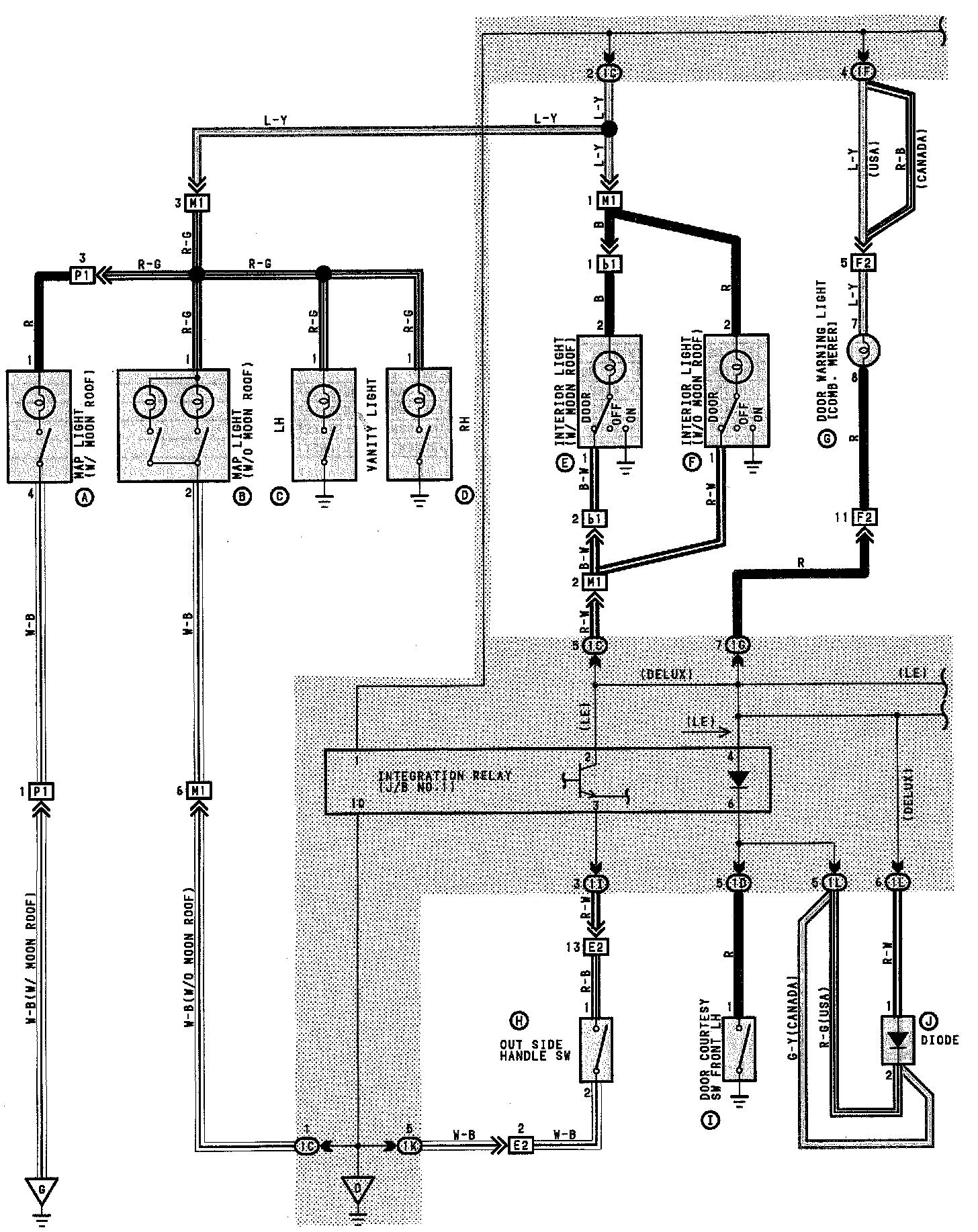

Interior Lights (With Door Lock)
