Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Courtesy Lamp
>>

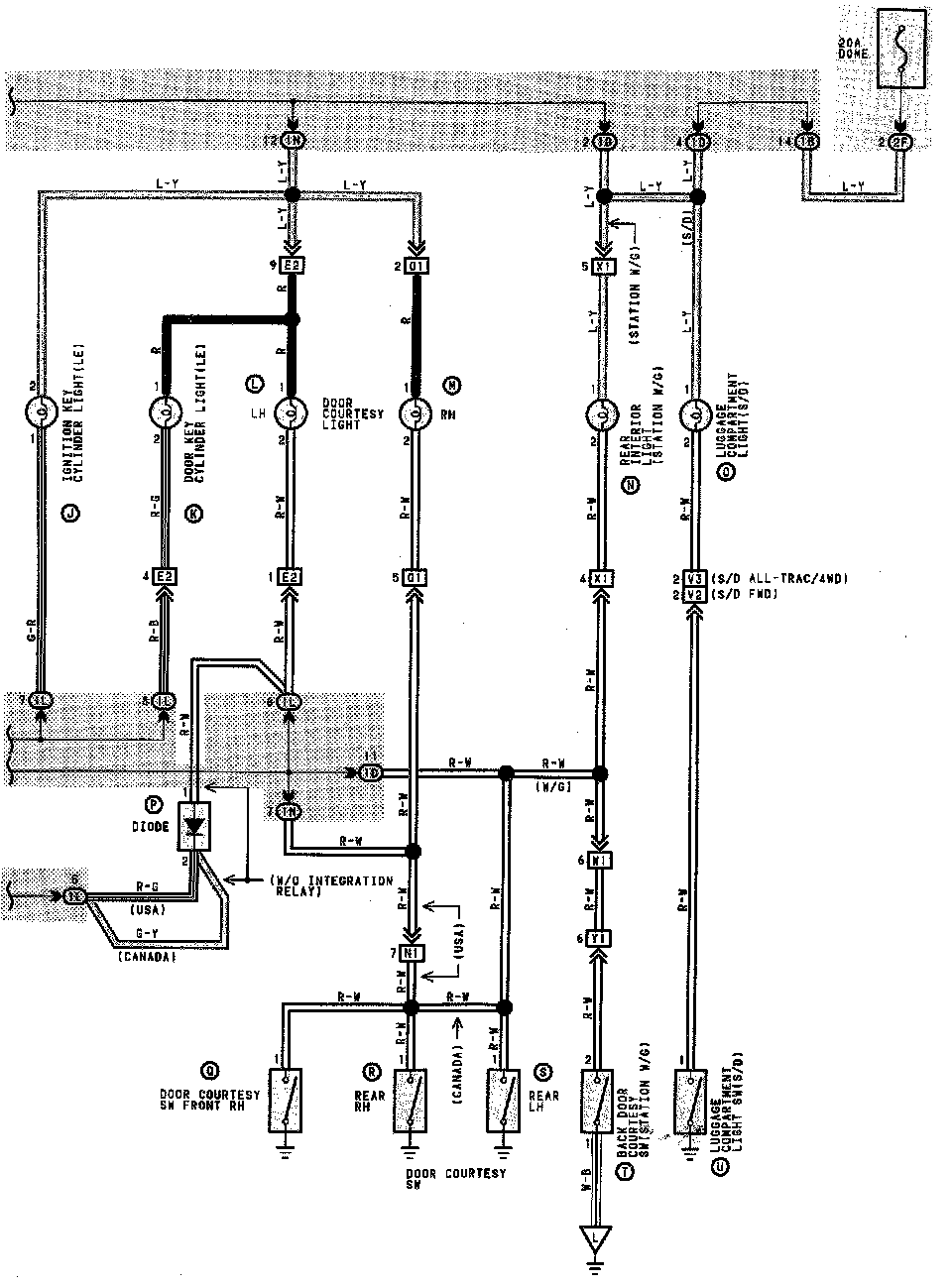

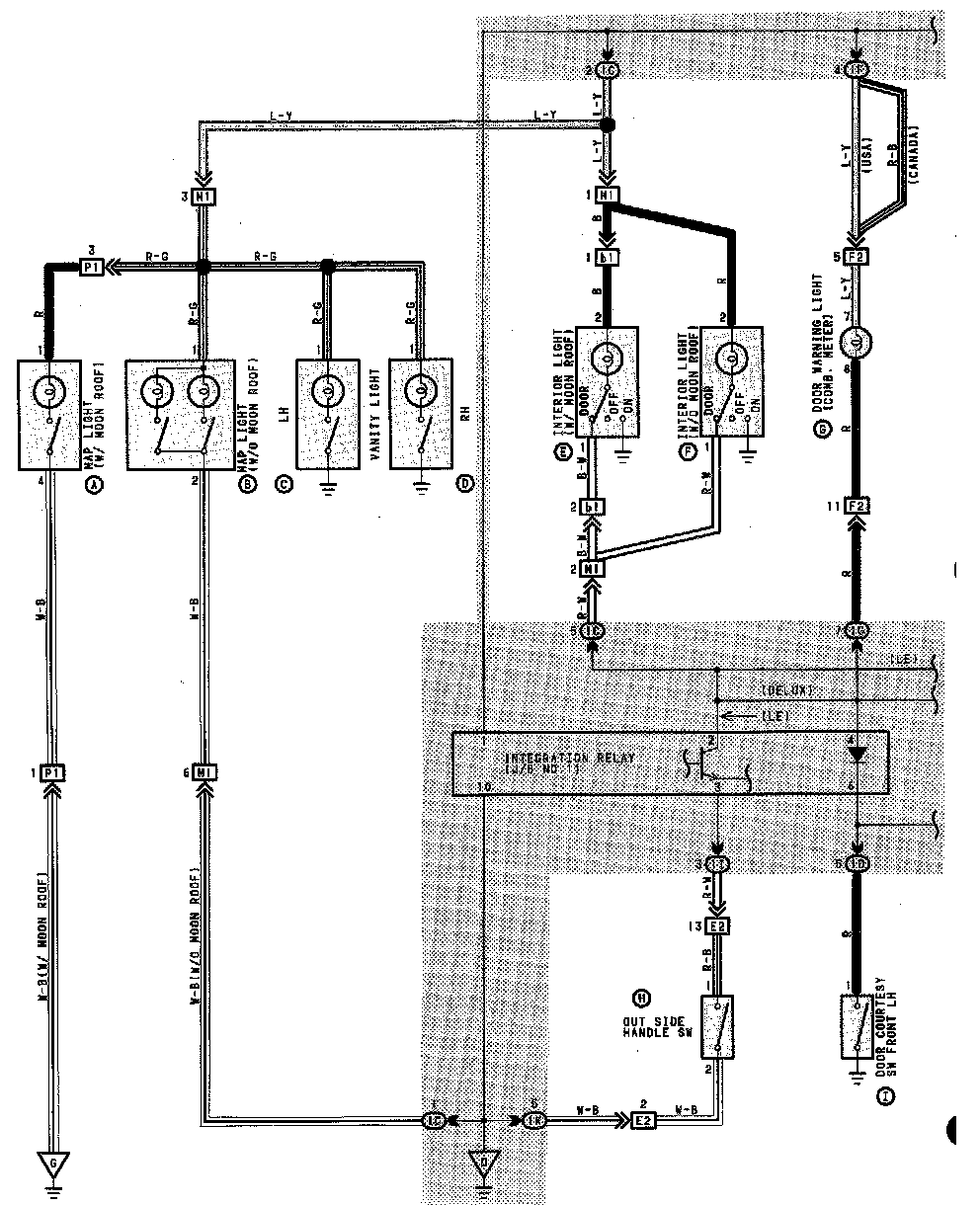

Interior Lights (Without Door Lock)
Interior Lights (Without Door Lock)
