Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Rear Door (Station Wagon)
Rear Door (Station Wagon)

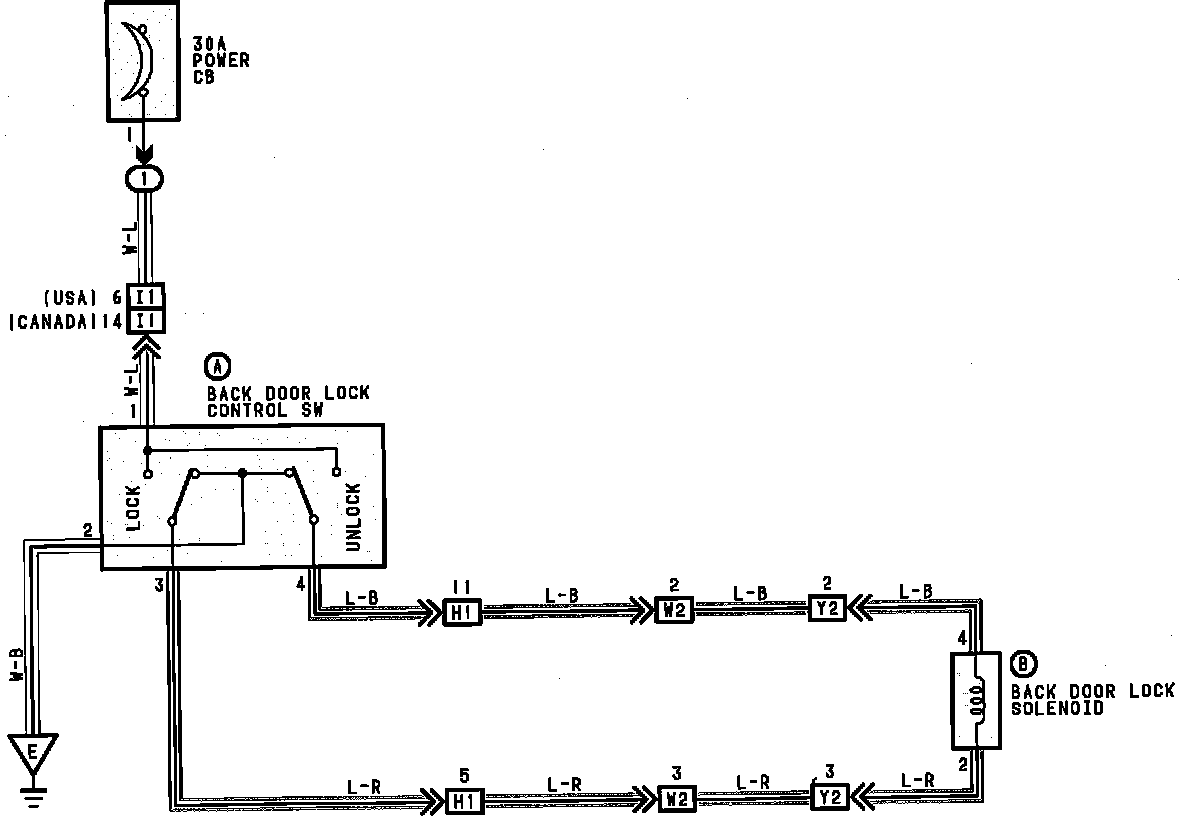

Power Rear Door Lock ((Station Wagon):
