Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Ground Points
>>
E, F, G, H, J and O
E, F, G, H, J and O

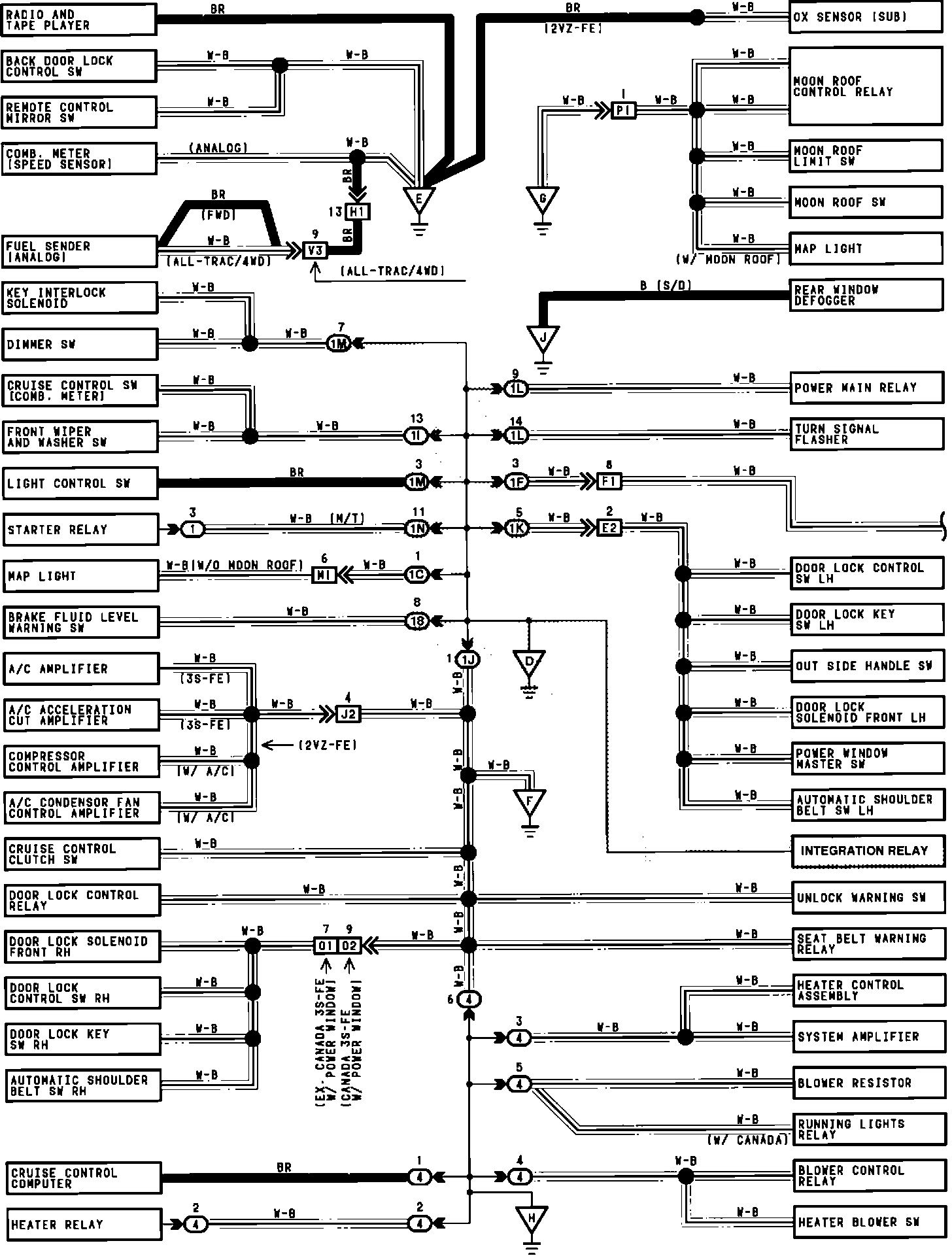

Ground Distribution:
