Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
>>
Unlock and Seat Belt Warning
Unlock and Seat Belt Warning

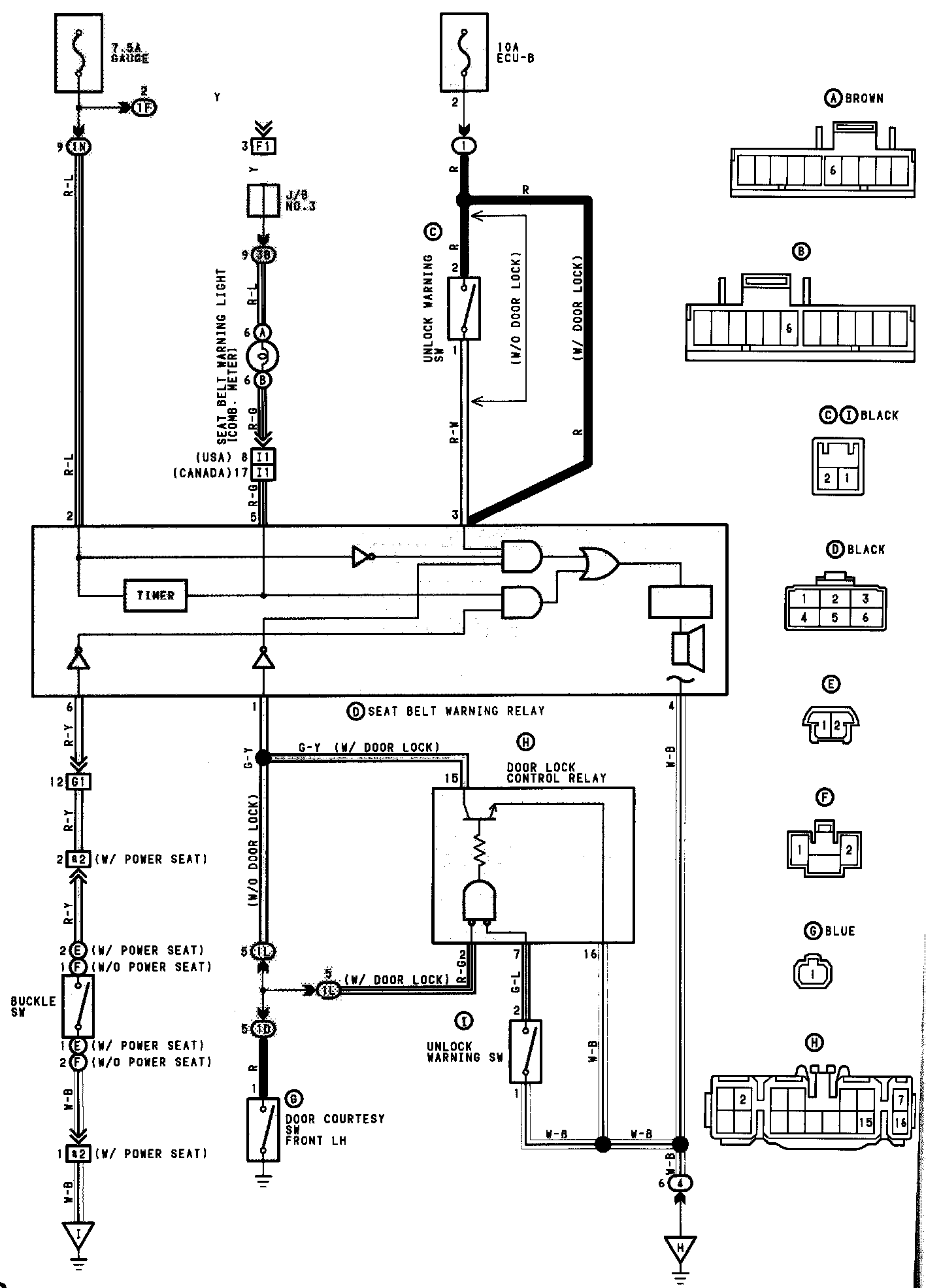

SEAT BELT
/UNLOCK WARNING SYSTEM
