Torque Specifications

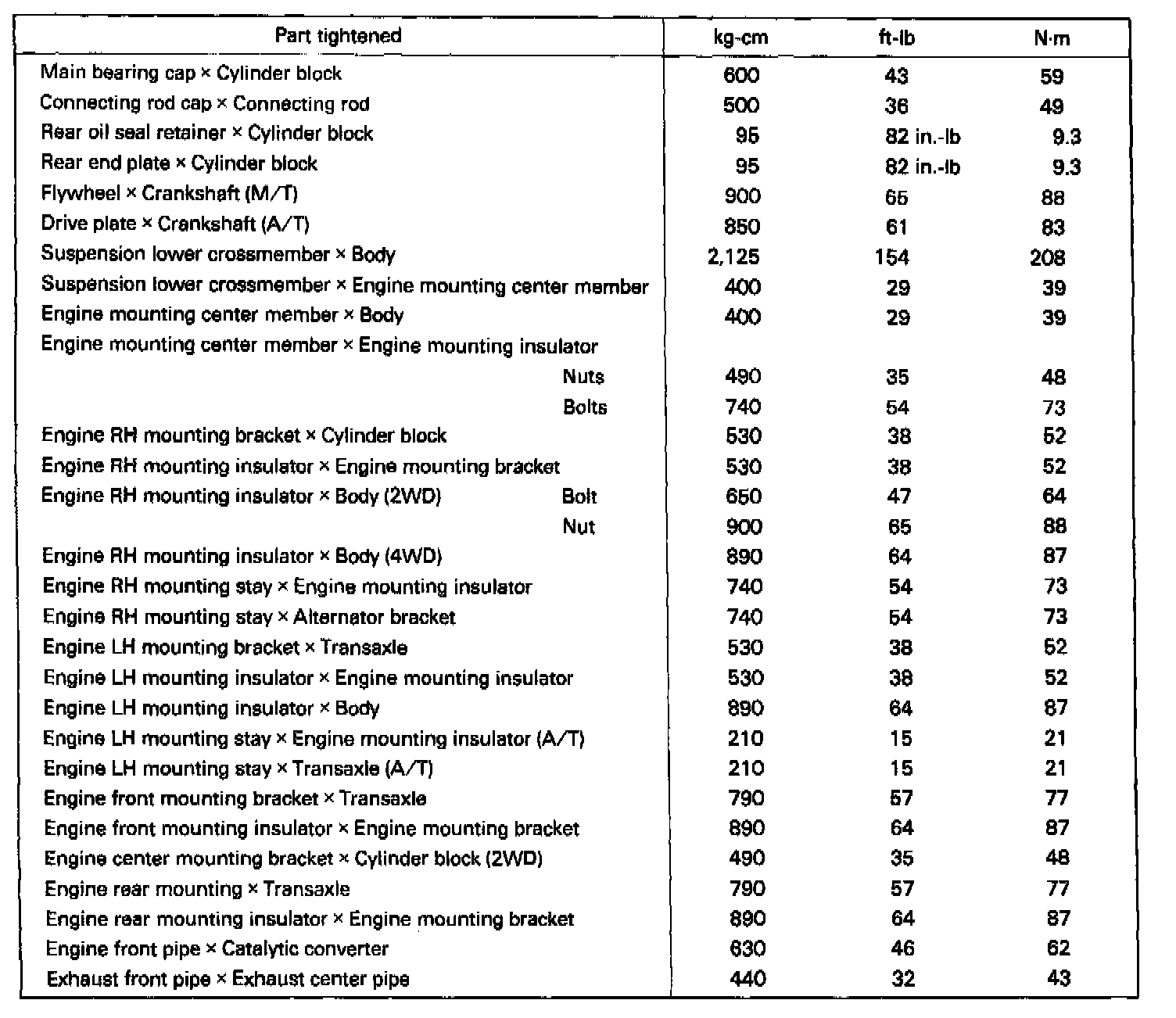

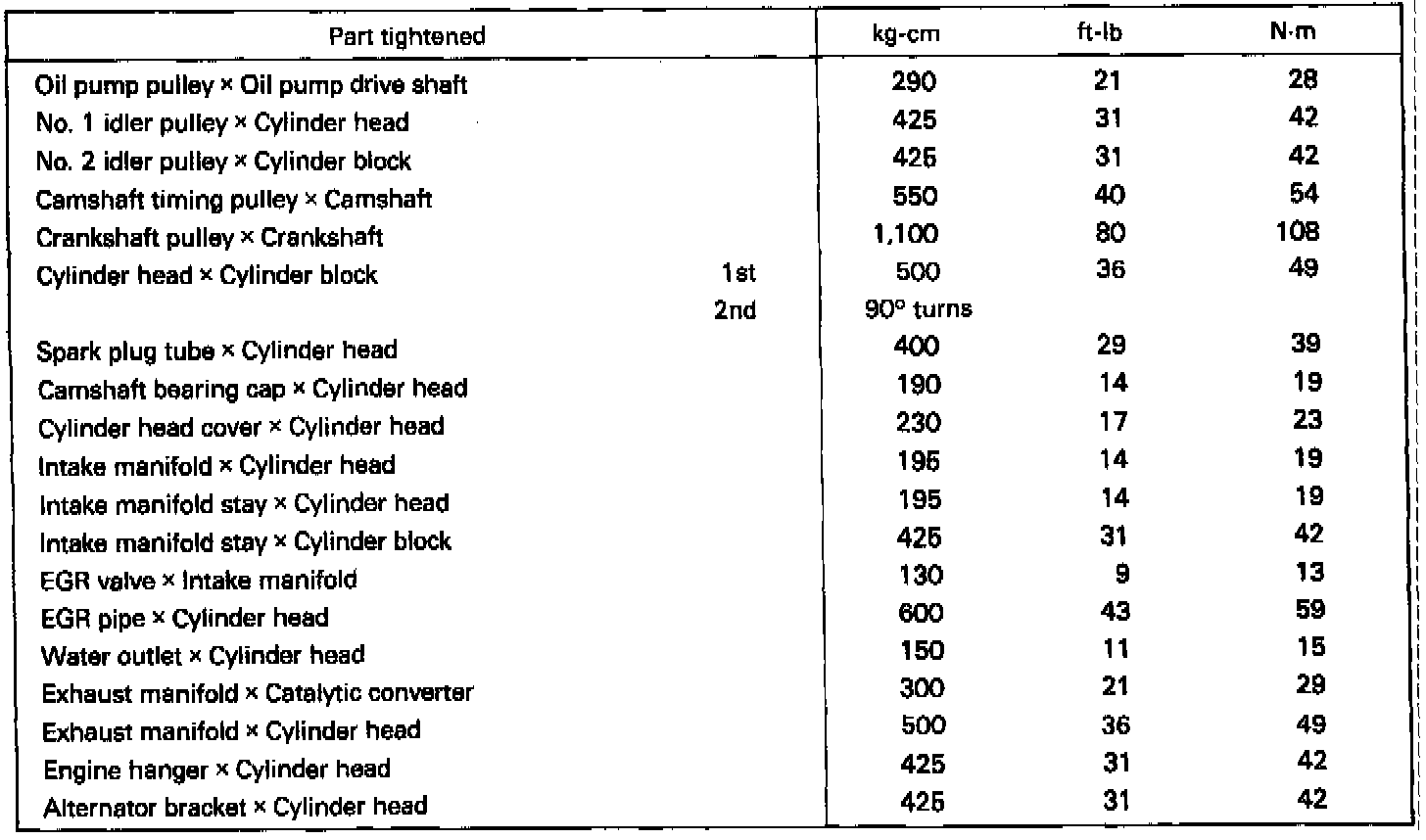

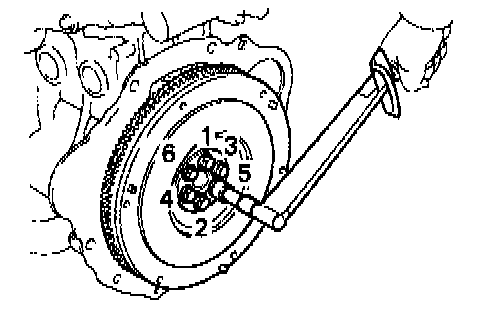

Torque Specifications (1 Of 2):

Torque Specifications (2 Of 2):

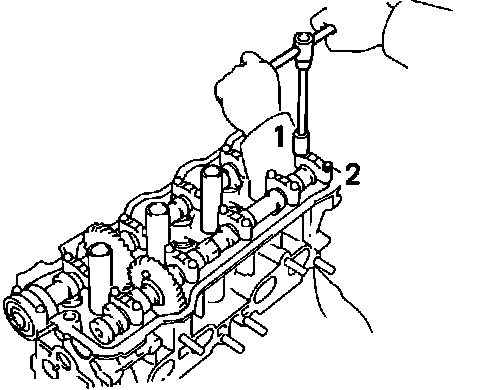

Fig. 1 Exhaust Camshaft Bearing Cap Bolts 1 & 2 Removal. 3S-FE:

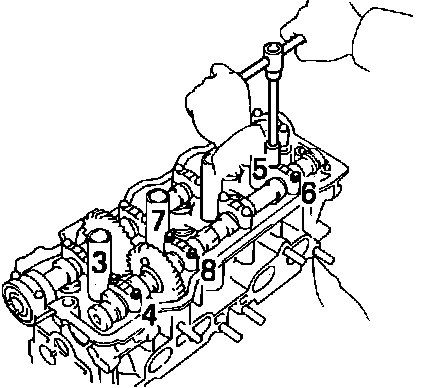

Fig. 2 Exhaust Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

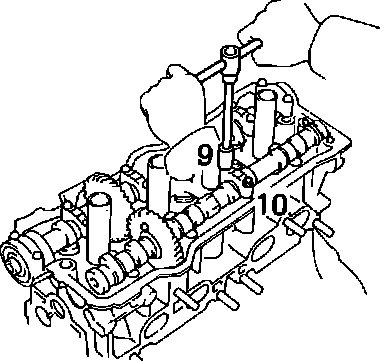

Fig. 3 Exhaust Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

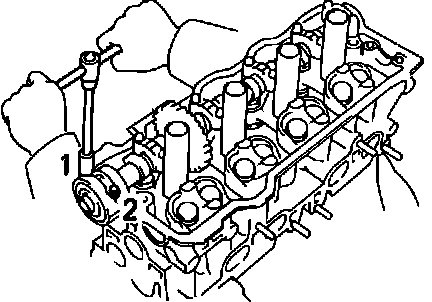

Fig. 4 Intake Camshaft Bearing Cap Bolt 1 & 2 Removal. 3S-FE:

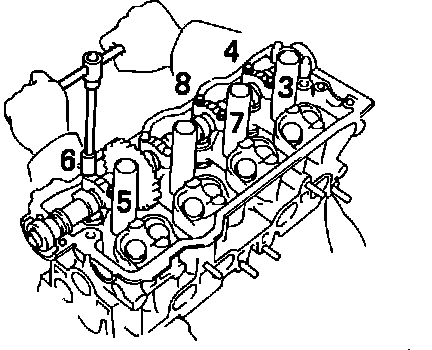

Fig. 5 Intake Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

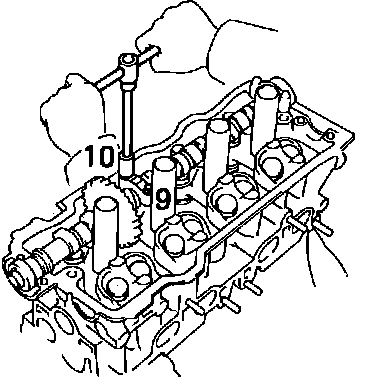

Fig. 6 Intake Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

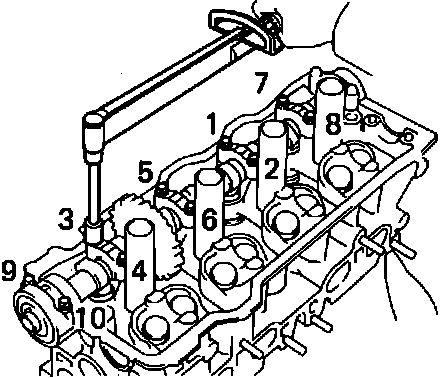

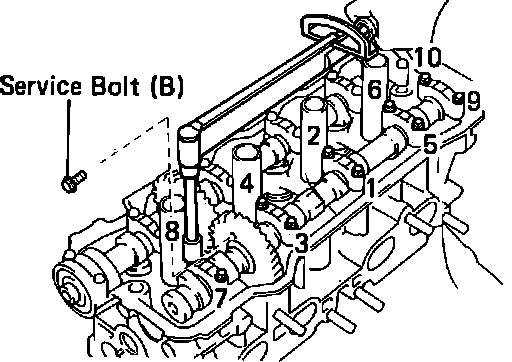

Fig. 9 Intake Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

Fig. 11 Exhaust Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

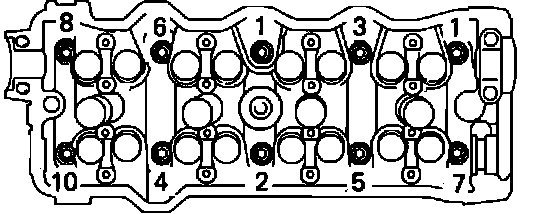

Fig. 8 Cylinder Head Bolt Tightening Sequence. 3S-FE:
