Compressor Clutch Relay: Testing and Inspection
1.

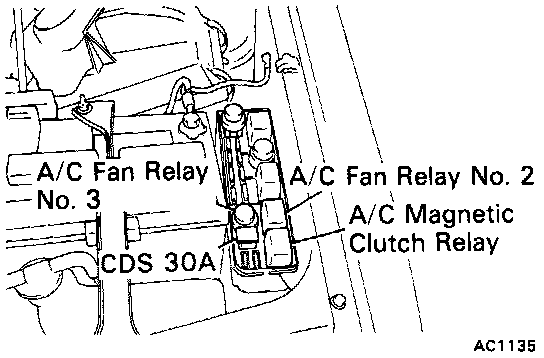

Remove cover of
relay box
.
2.
Remove relay.
3.

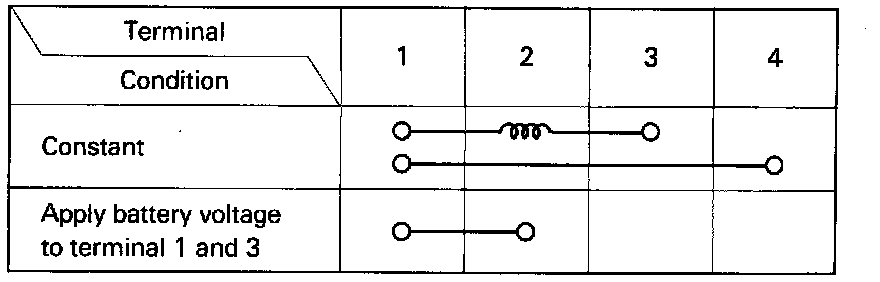

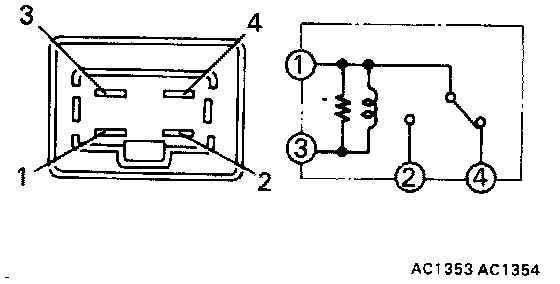

Inspect relay continuity.
If continuity is not as specified, replace the relay.
