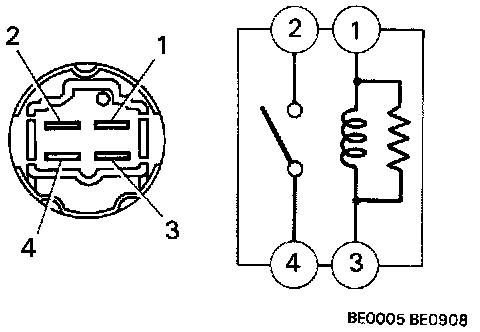

Fan Relay Number 3
Fan Relay Number 3
1.
Remove cover of
relay box
.
2.
Remove relay.
3.

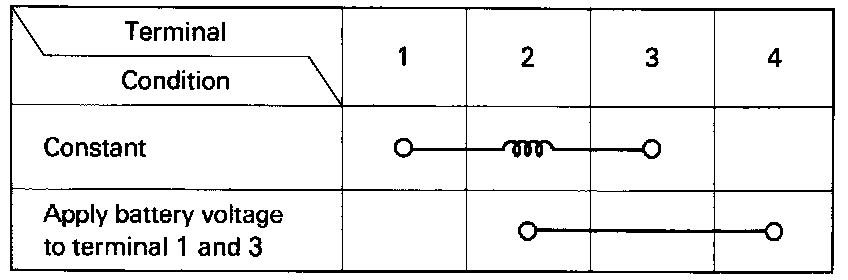

Inspect relay continuity.
If continuity is not as specified, replace the relay.
