Air Conditioning Amplifier

A/C Amplifier Inspection:

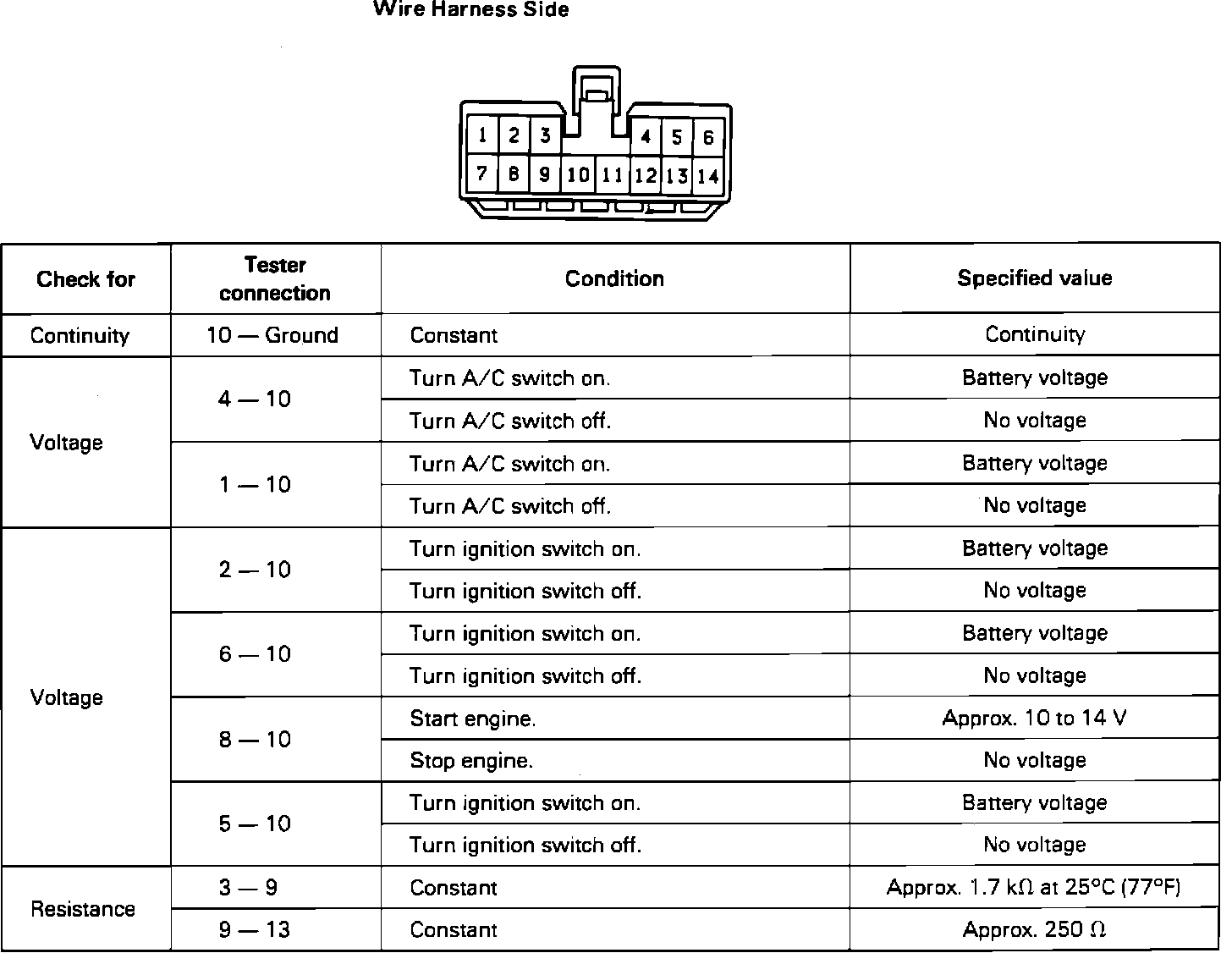

1. Disconnect amplifier and check connector on wire harness side as shown on image chart.
2. If circuit is as specified, replace amplifier.

TEST CONDITIONS

1. Ignition switch: "ON."
2. Temperature control dial: "MAX COOL."
3. Blower control: "HI."
