Under Hood and Interior
Under Hood and Interior

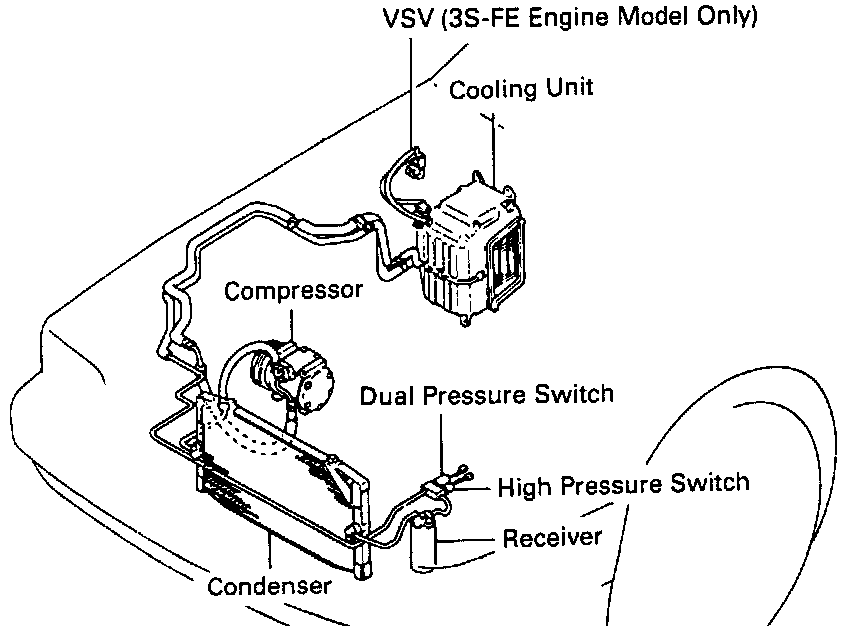

Underhood HVAC Component And Tubing Layout:
UNDERHOOD LAYOUT
Interior HVAC Component Layout:
INTERIOR COMPONENTS
