Initial Inspection and Diagnostic Overview
>>
Refrigerant Volume
Refrigerant Volume
1.
Run engine at approx. 2OOO RPM.
2.
Operate air conditioner at maximum cooling for a few minutes.
3.

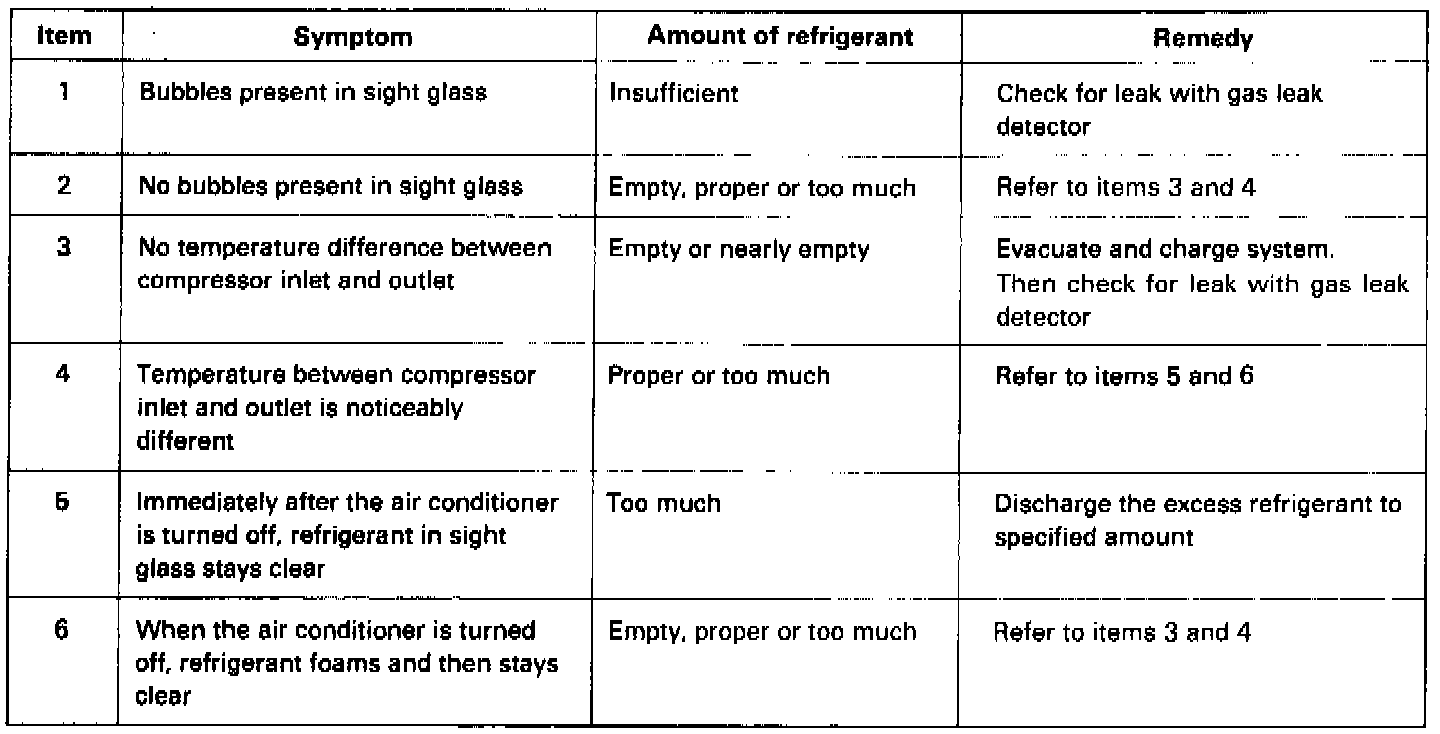

Check amount of
refrigerant
, observe the

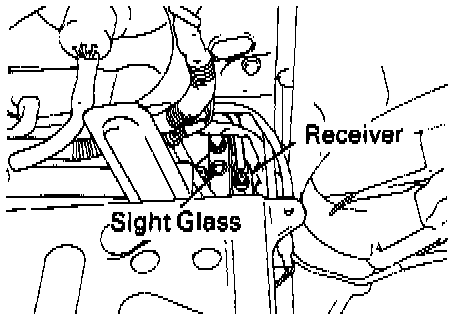

sight glass
on the receiver.
