Instrument Panel, Gauges and Warning Indicators
>>
ABS Light
>>
Description and Operation
>>
System Components
System Components

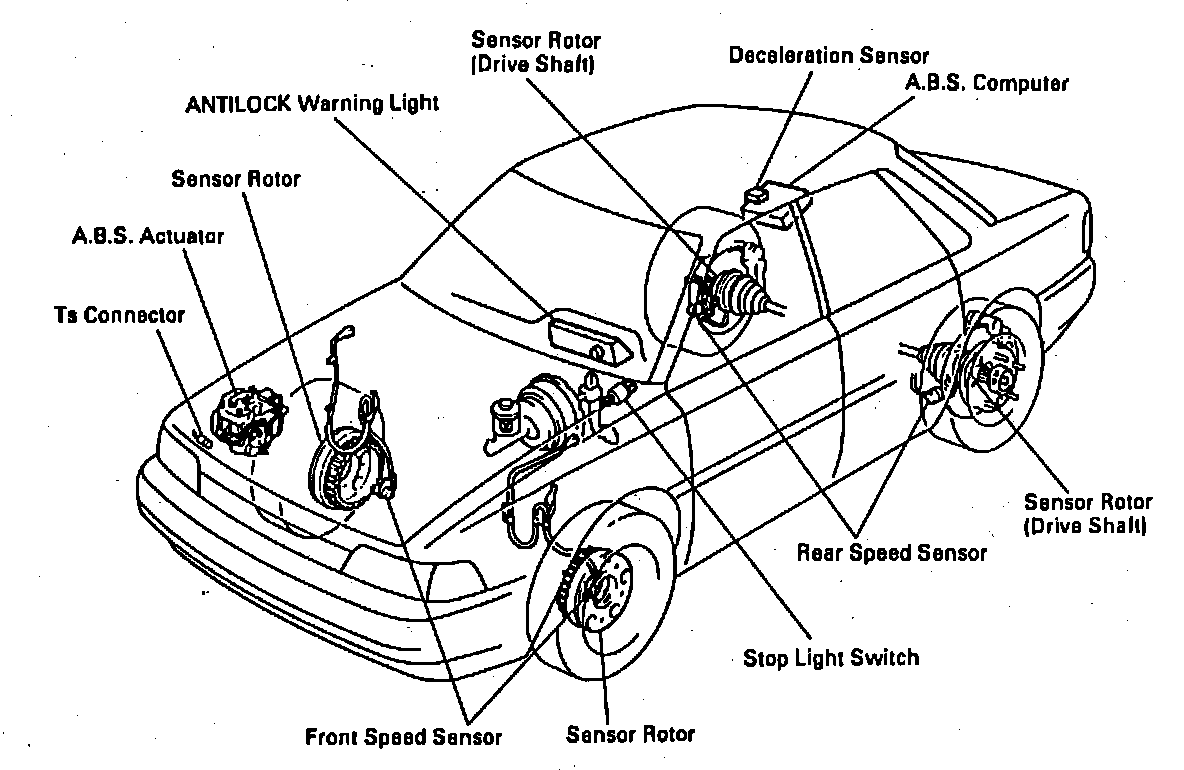

Fig. 5 Component Location & Function (Part 1 Of 2). 1989-91 Camry:

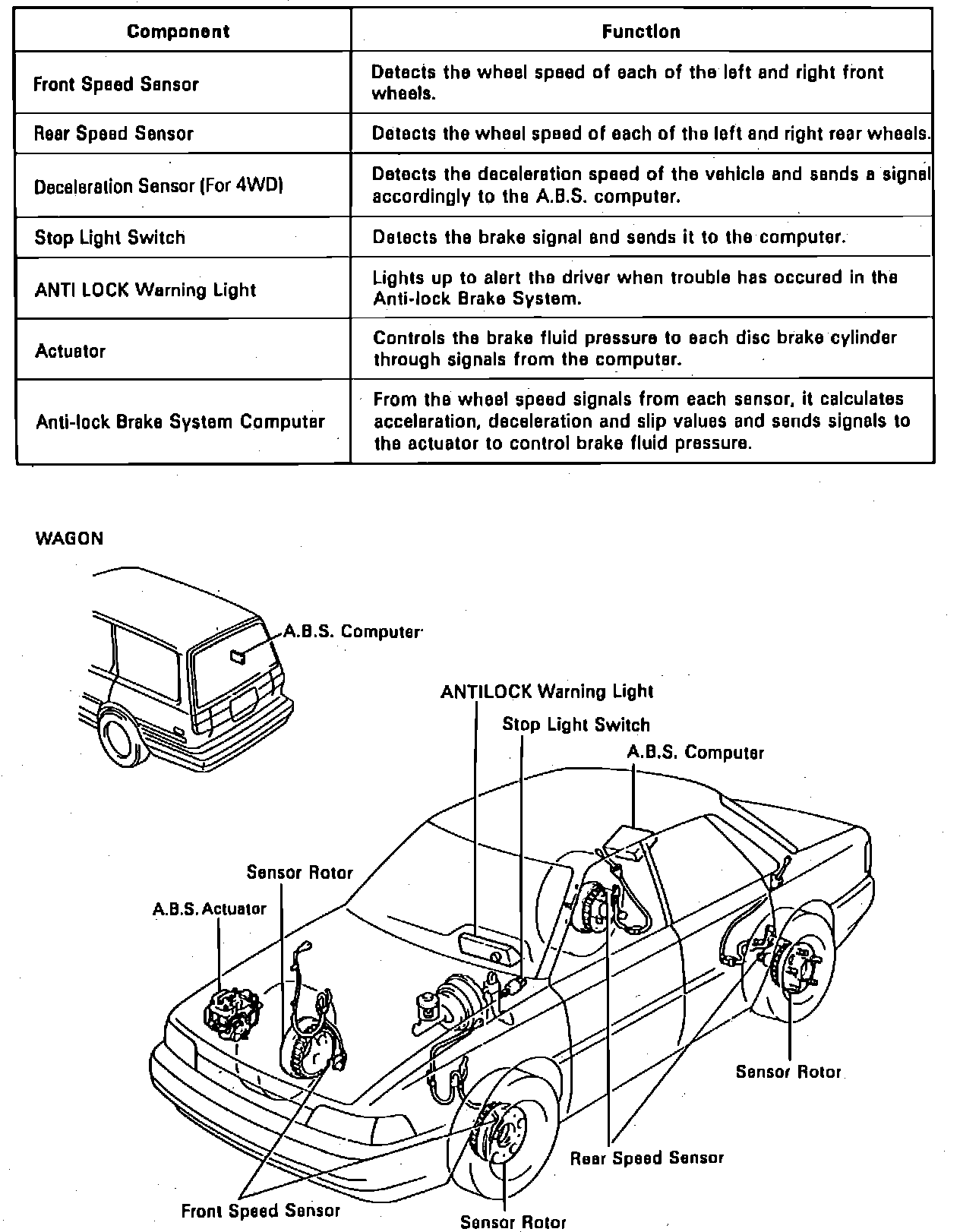

Fig. 5 Component Location & Function (Part 2 Of 2). 1989-91 Camry:
