Audio - Contact Between Speaker and Instrument Panel
90toyota01 REPERENCE NVHNUMBER 001
DATE 01-12-90
MOOEL SV, VV
TITLE CAMRY FRONT SPEAKER
To prevent contact between the front speaker and the instrument panel, the speaker has been changed as shown below:
ILLUSTRATION::

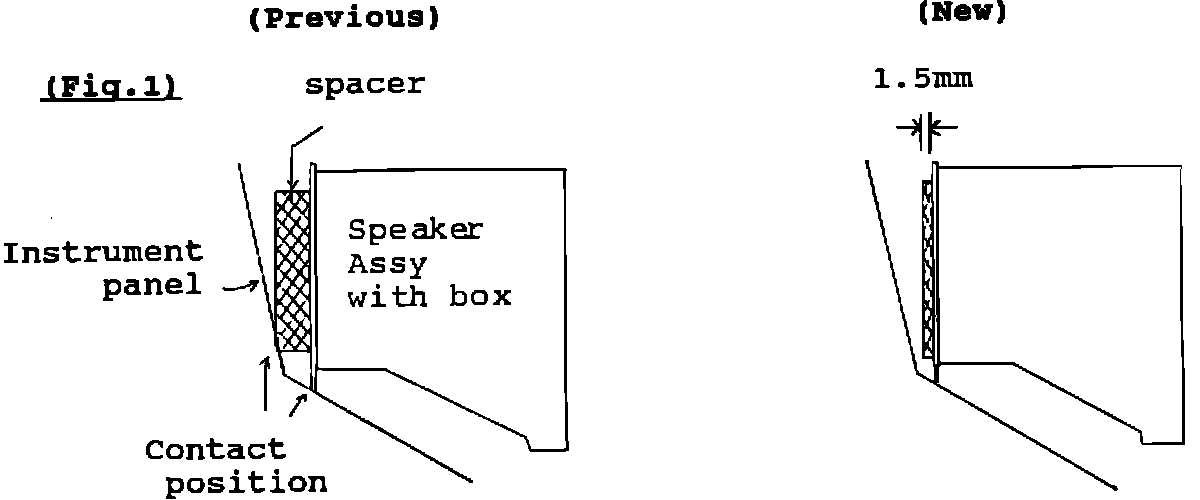

1) The thickness of the spacer has been changed from 5.0 mm to 1.5 mm. (See Fig. 1)

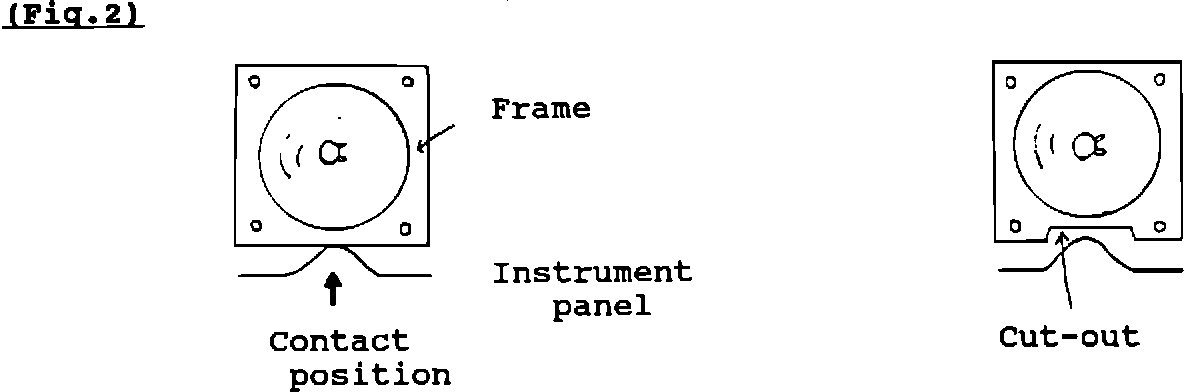

2) The design of the speaker frame has been changed. (Fig. 2)
3) The speaker net is no longer used.
PRODUCTION EFFECTIVE:
VIN Prod. Date
JT2SV2 # # # K0305213 June, 1989
JT2SV2 # # # K3388740 " "
JT2SV2 # J # K0026763 " "
JT2VV2 # # # K0082450 " "
4T1SV2 # E # KU063000 " "
PART NUMBER INFORMATION: Part numbers remain unchanged.
Part No. Part Name
86150-32140 SPEAKER ASSY, w/Box (RH)
86150-32150 SPEAKER ASSY, w/Box (LH)
86160-32141 SPEAKER ASSY, FRONT NO.1
INTERCHANGEABILITY:
New parts can be installed on previous vehicles.
