Home >> Toyota >> 1990 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Relays and Modules - Instrument Panel >> Panel Dimming Relay >> Locations

Panel Dimming Relay: Locations

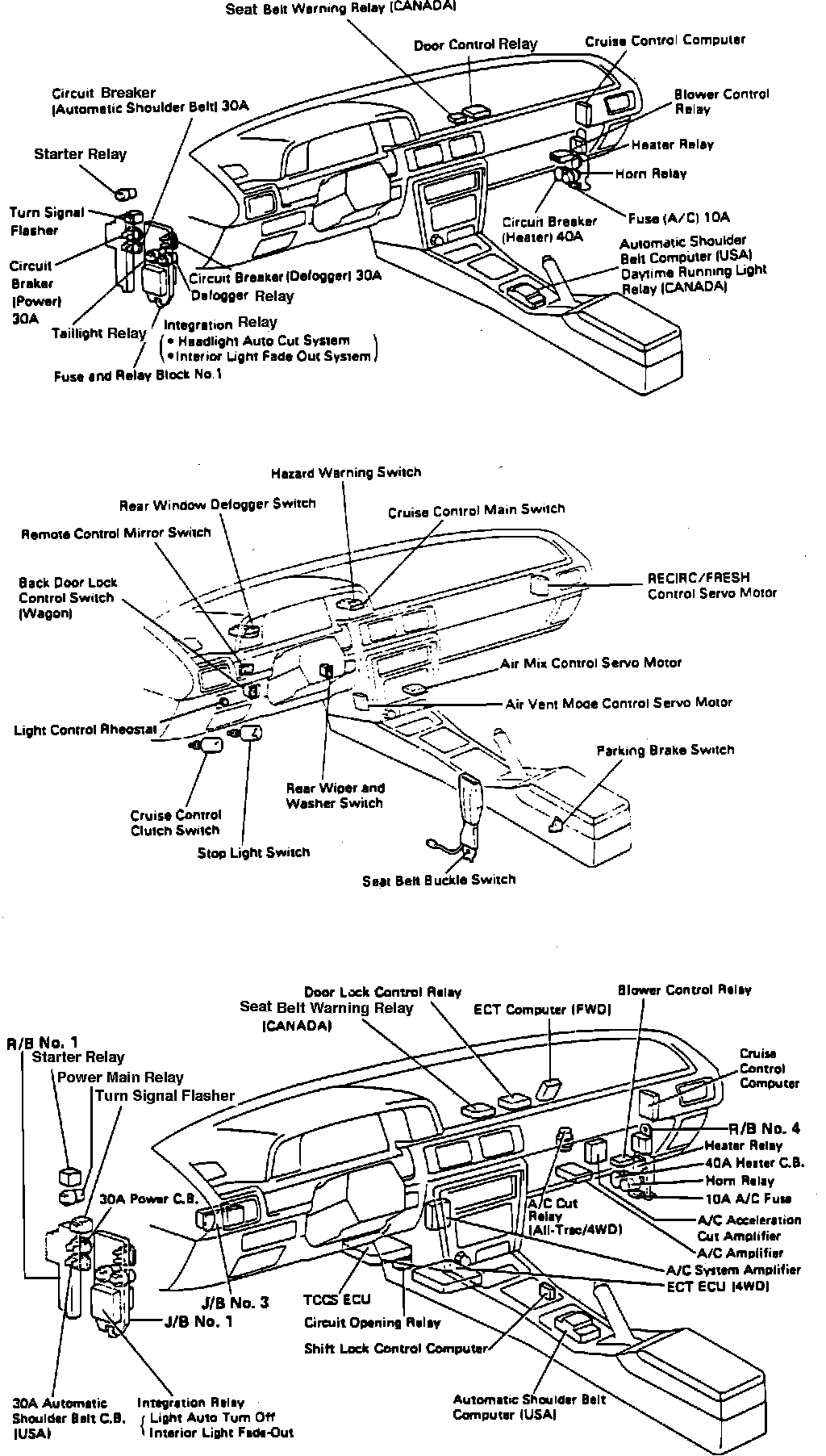

Instrument Panel Component Locations:




LH Side Of I/P
