Unlock Warning Switch

Ignition/Unlock Warning Switch Testing:

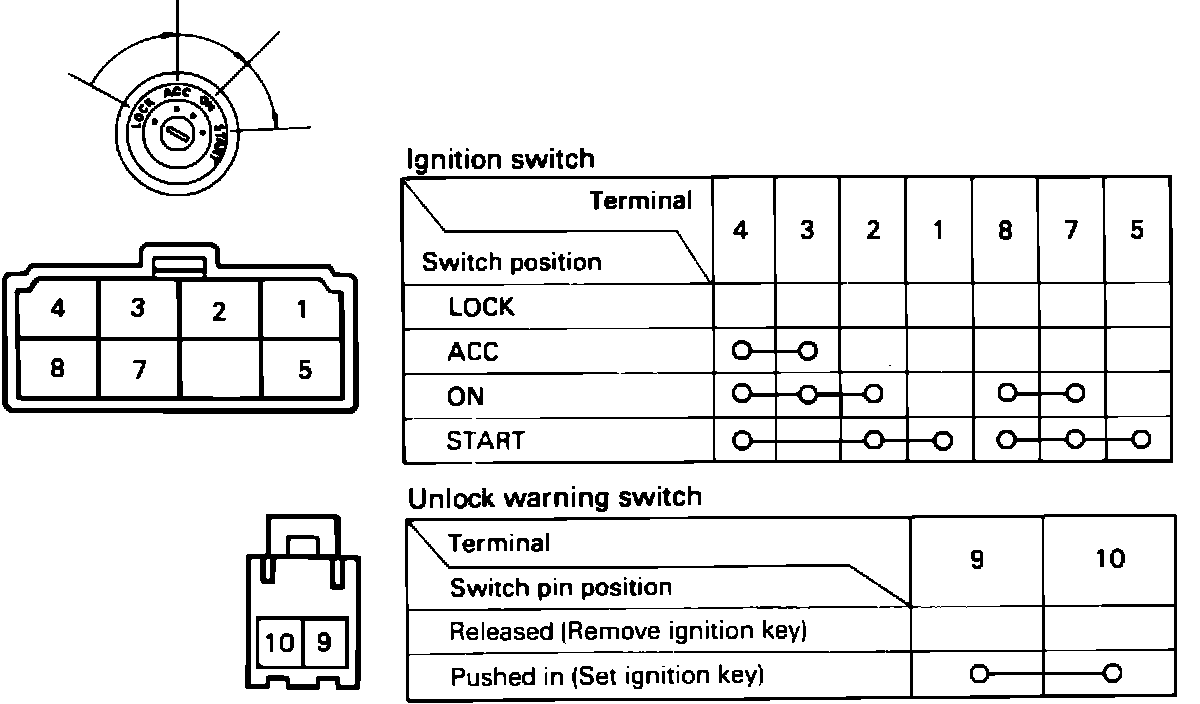

1. Check switch as described on image chart.
2. If not as specified, replace switch.
