Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Illumination
Illumination

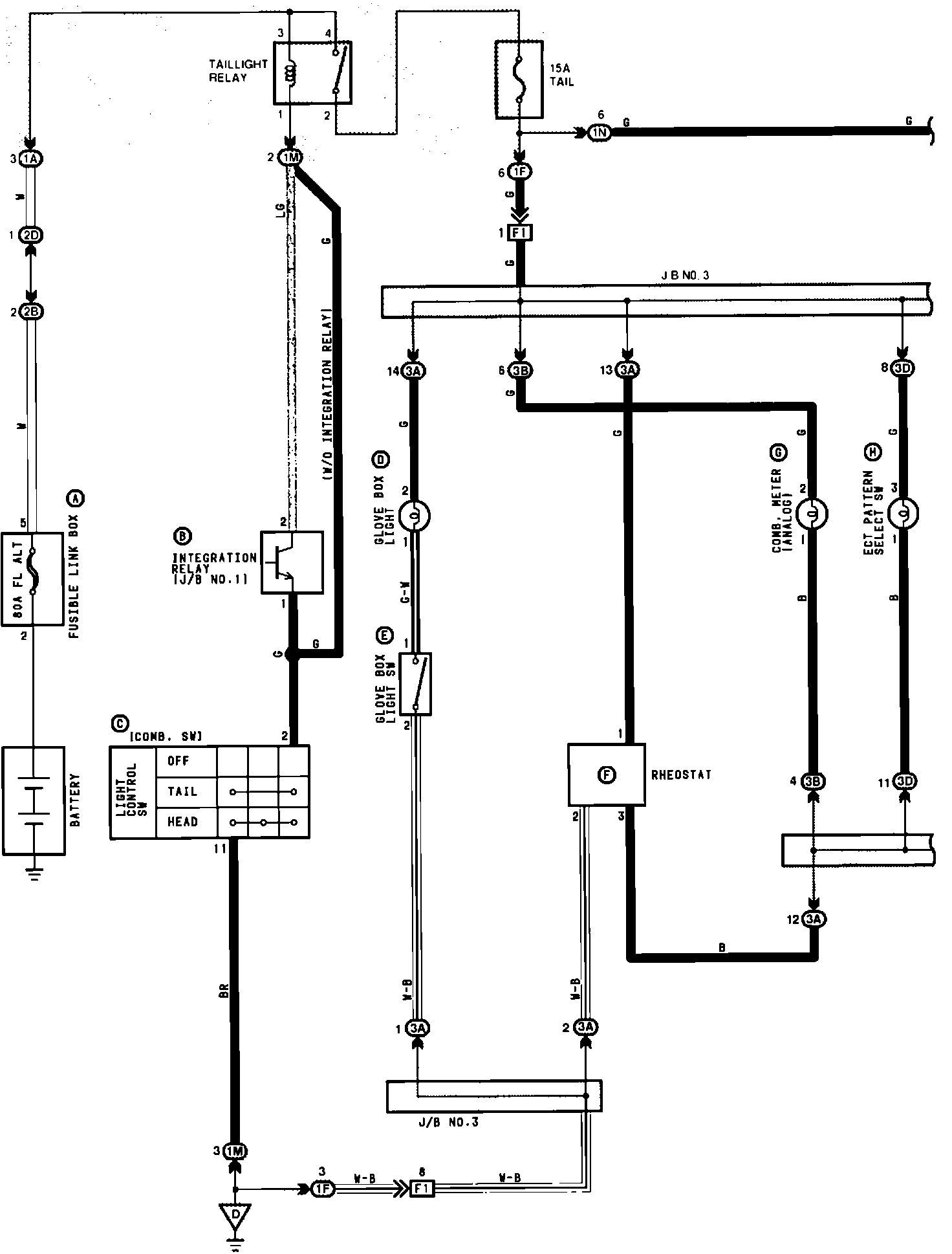

Illumination (Part 1 Of 3):

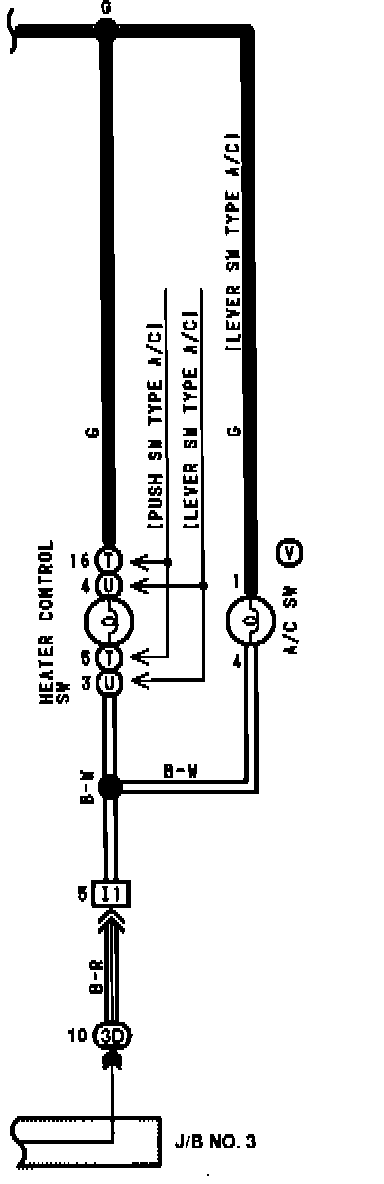

Illumination (Part 2 Of 3):
Illumination (Part 3 Of 3):
