Diesel Data: Automotive Repair
Home >> Toyota >> 1990 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior >> Less Door Locks

Less Door Locks

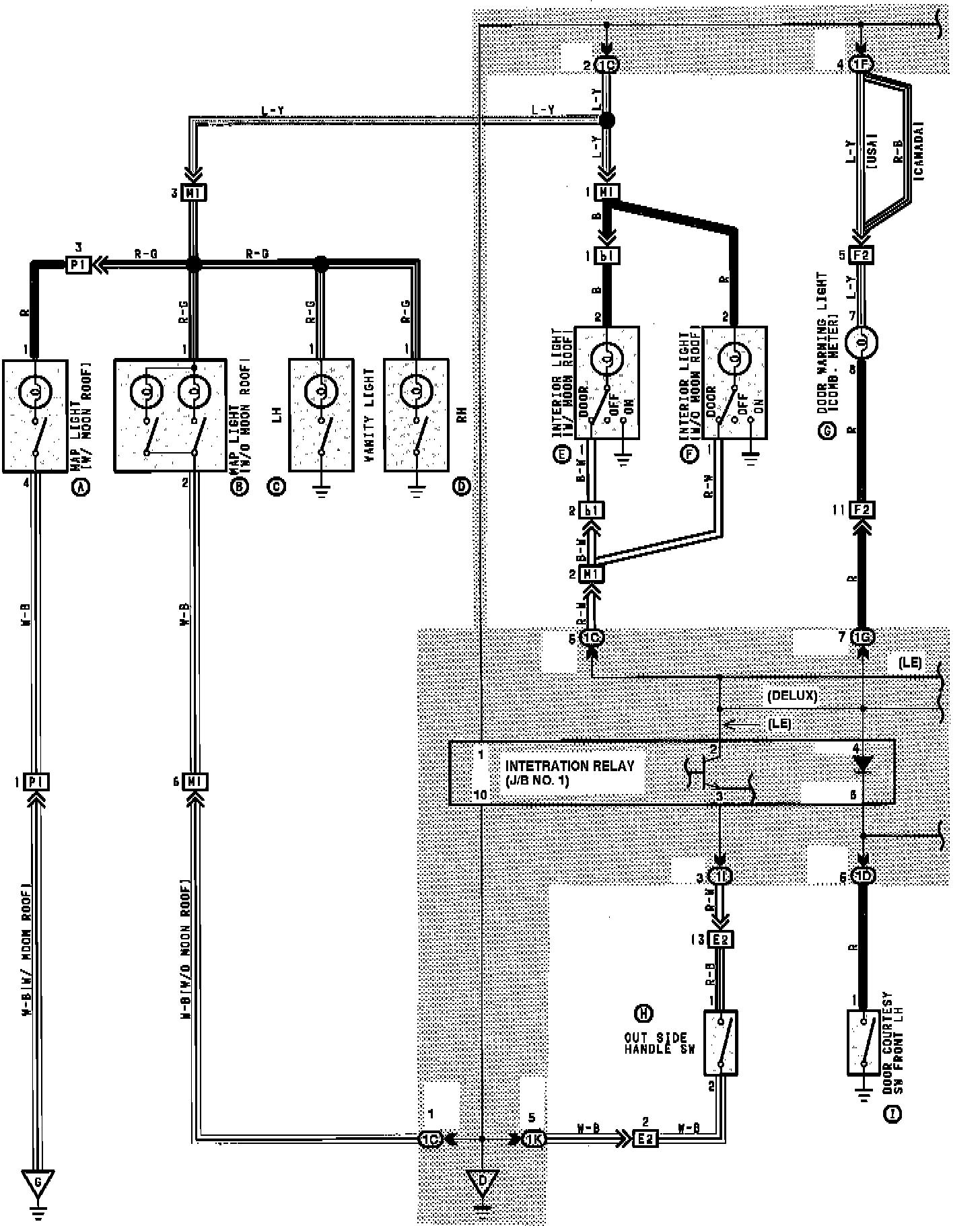

Interior Lights Less Power Door Locks (Part 1 Of 2):



Interior Lights Less Power Door Locks (Part 2 Of 2):
