Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Fuse and Fusible Link Locations
>>
Fuse and Relay Block Details
>>
Junction Block
>>
Number 1
Number 1

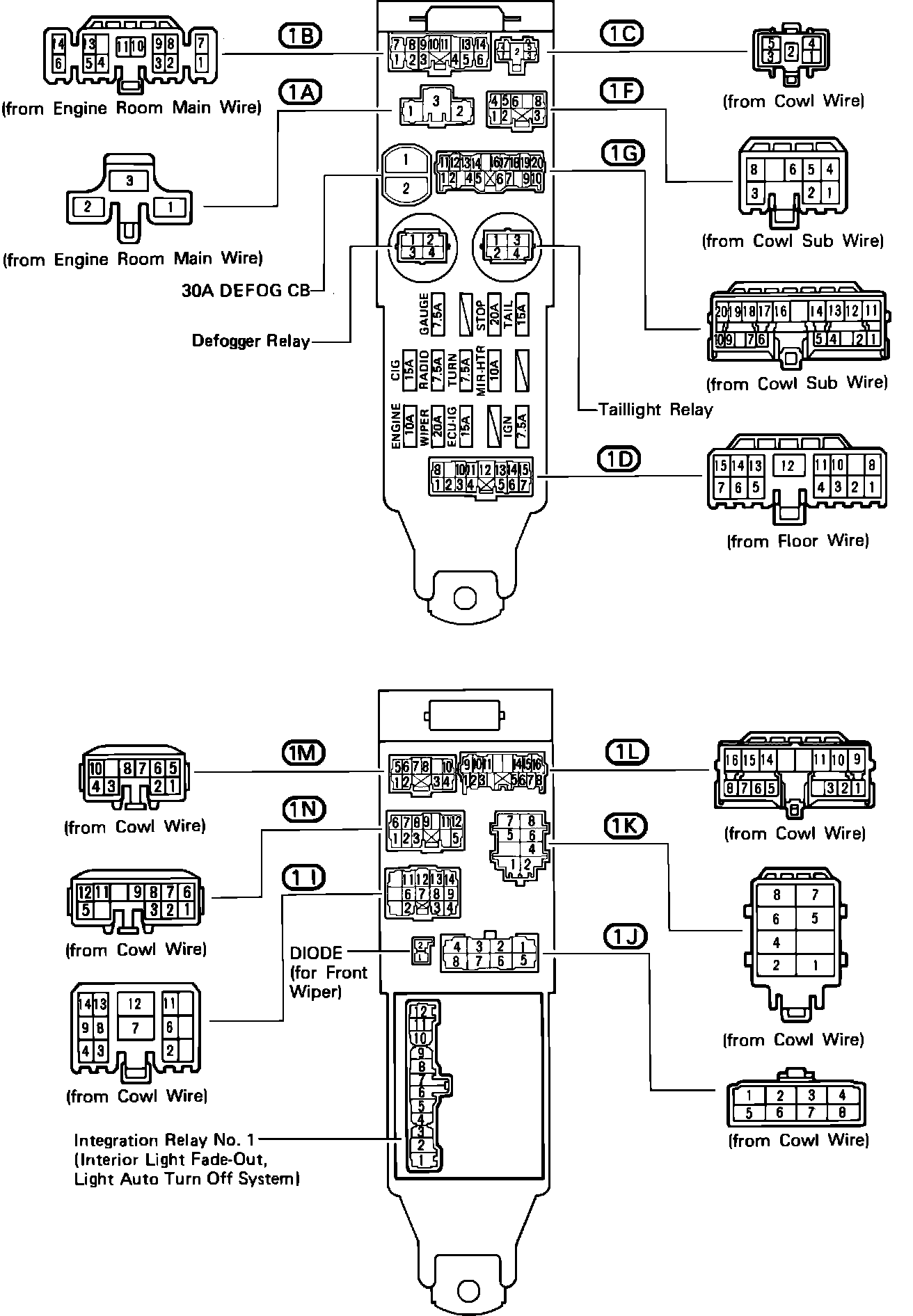

Fuse Panel: Junction Box No. 1 (Left Kick Panel):

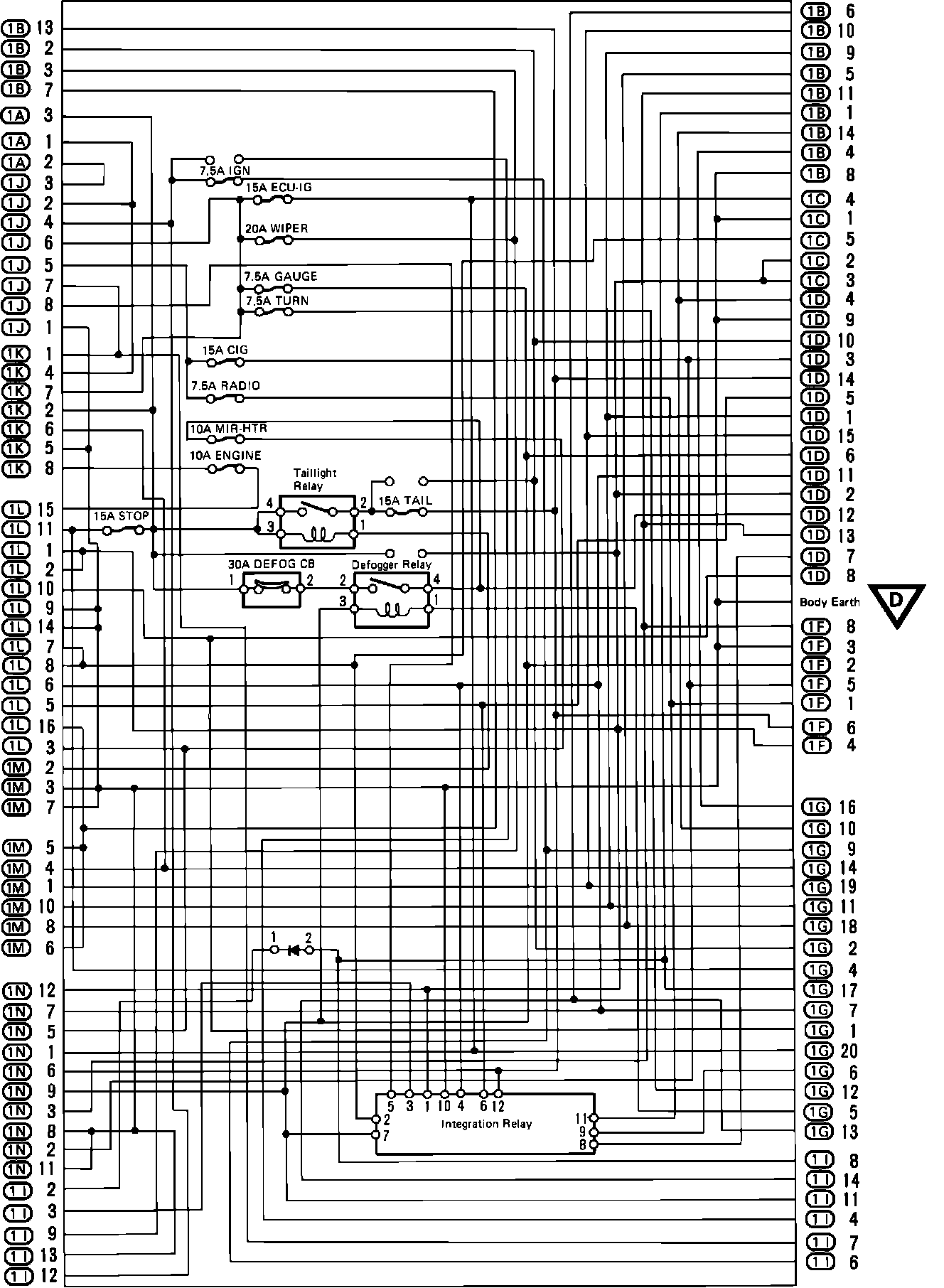

Fuse Panel: Junction Box No. 1 (Inner Circuit):
