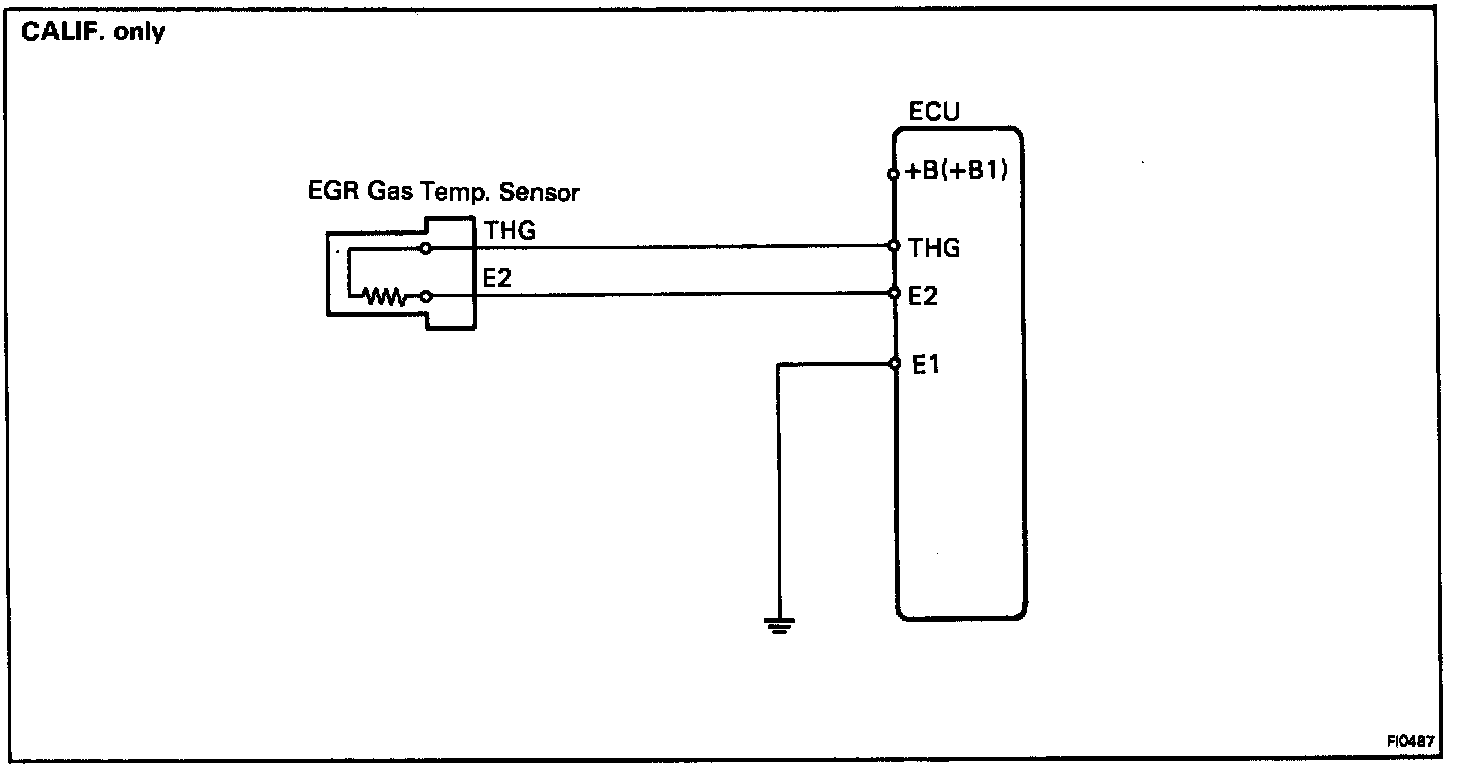

THG / EGR Gas Temp. Sensor (California Only)
THG / EGR Gas Temp. Sensor (California Only)
THG / EGR GAS TEMP. SENSOR (California Only)

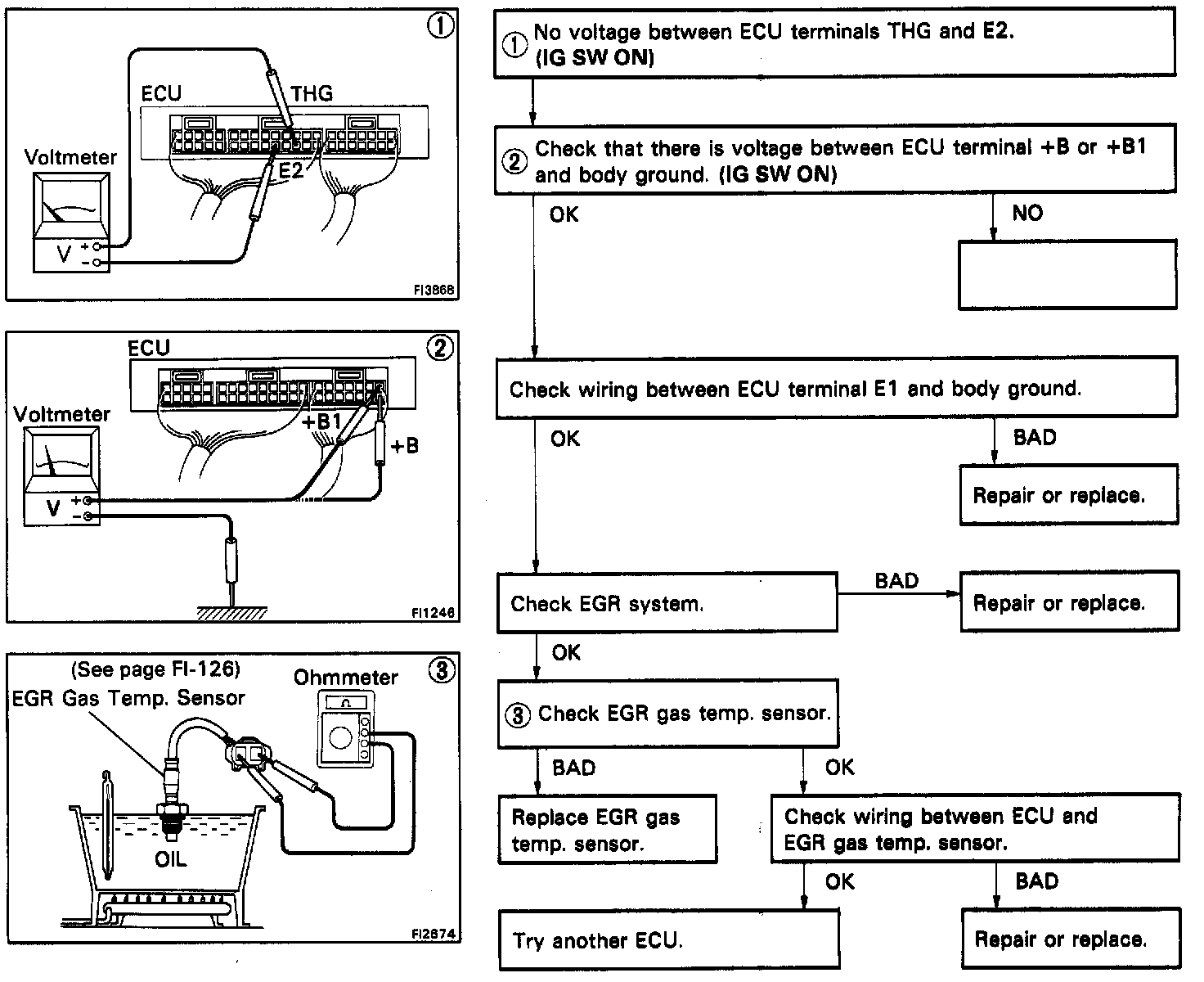

No. 1 of 2
No. 2 of 2
