Vacuum Delay Valve: Description and Operation

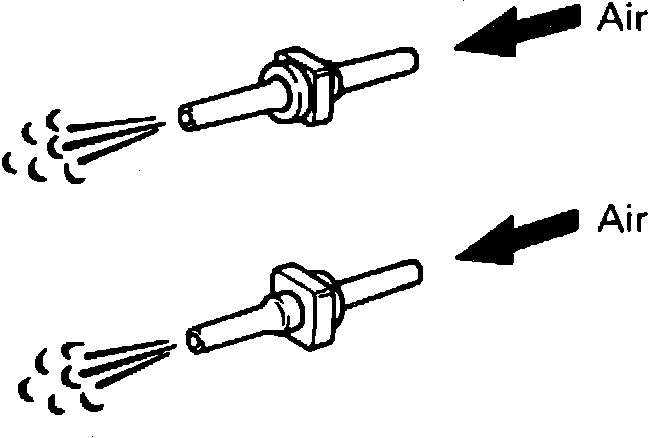

Fig. 11 Testing Purge Jet:

1. Remove Jet from vacuum line between charcoal canister and engine.
2. Blow air through each side of Jet and check for blockage. Fig. 11
3. If a problem is found, replace Jet.
