Home >> Toyota >> 1990 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Temperature Sensor >> Locations

EGR Temperature Sensor: Locations

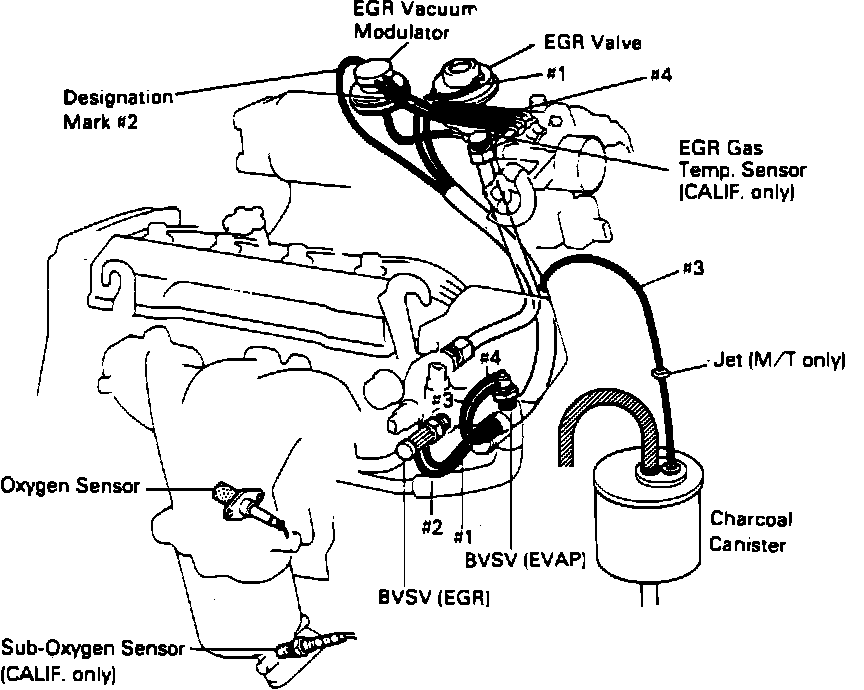

Emission Control System Locations.:




Rear RH Side Of Engine

Applicable to: 3S-FE Engine
