Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Testing and Inspection
>>
Circuit Test
Circuit Test

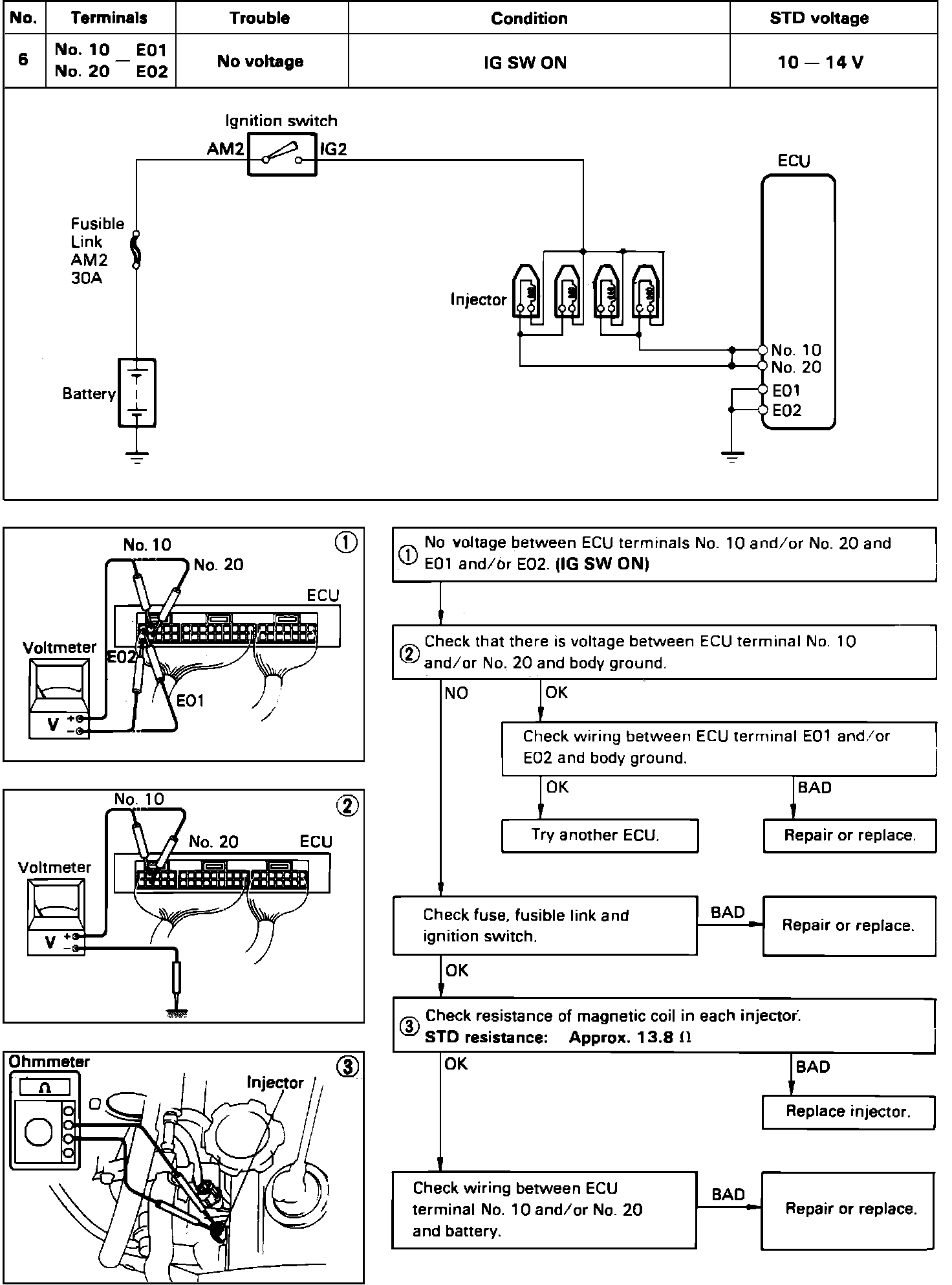

EFI Fuel Injector Circuit Test:
