Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Circuit Test
>>

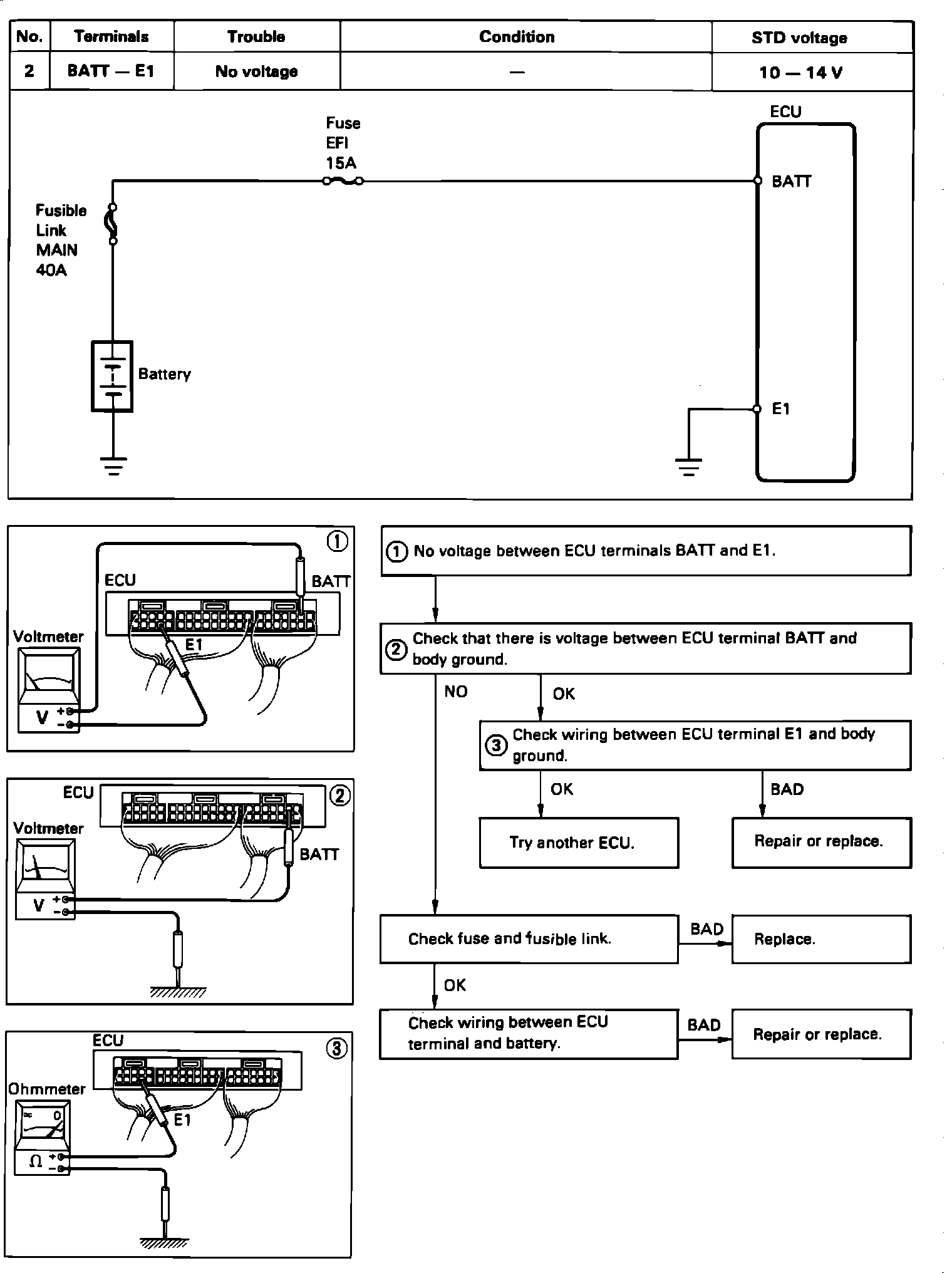

Battery Power Input
Battery Power Input
ECU Power Supply:
