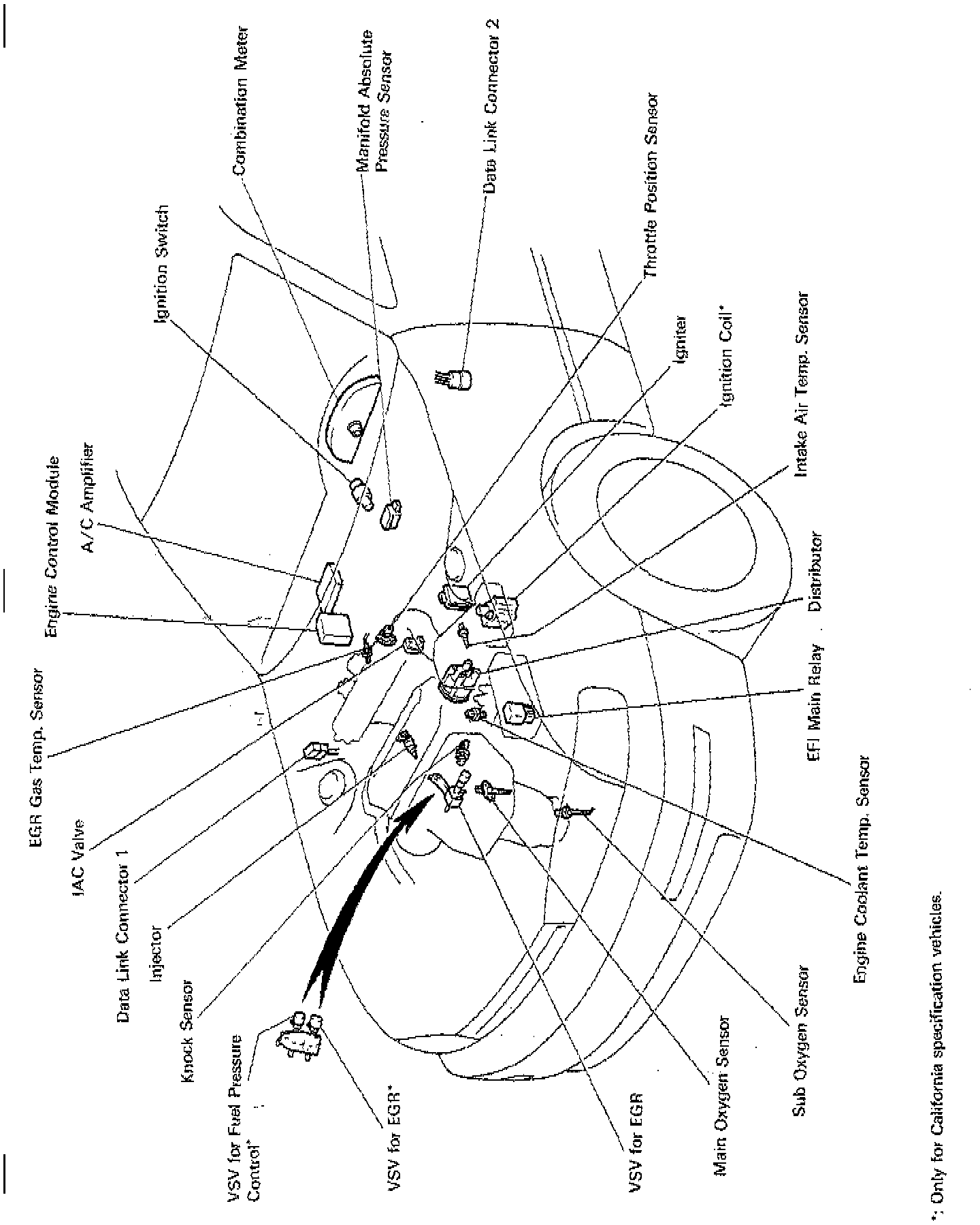

Ignition Control Module: Locations

Fig. 41a Check Connector And Service Wire:

DIAGNOSTIC CHECK CONNECTOR:
Located in engine compartment toward rear of engine

Distributor:

DISTRIBUTOR:
Located on rear of cylinder head

Behind Center Console:

ELECTRONIC CONTROL UNIT (ECU):
Located under center of dash

IGNITER:
Located near left strut tower, rear of engine





IGNITION COIL:
Located inside distributor

SIGNAL GENERATOR PICKUP COILS:
Located inside distributor

SPARK PLUGS:
Located in top of cylinder head, center of valve cover

Fig. 40a Connecting Tachometer:

TACHOMETER CONNECTOR:
Located near distributor
