Wiring Diagrams

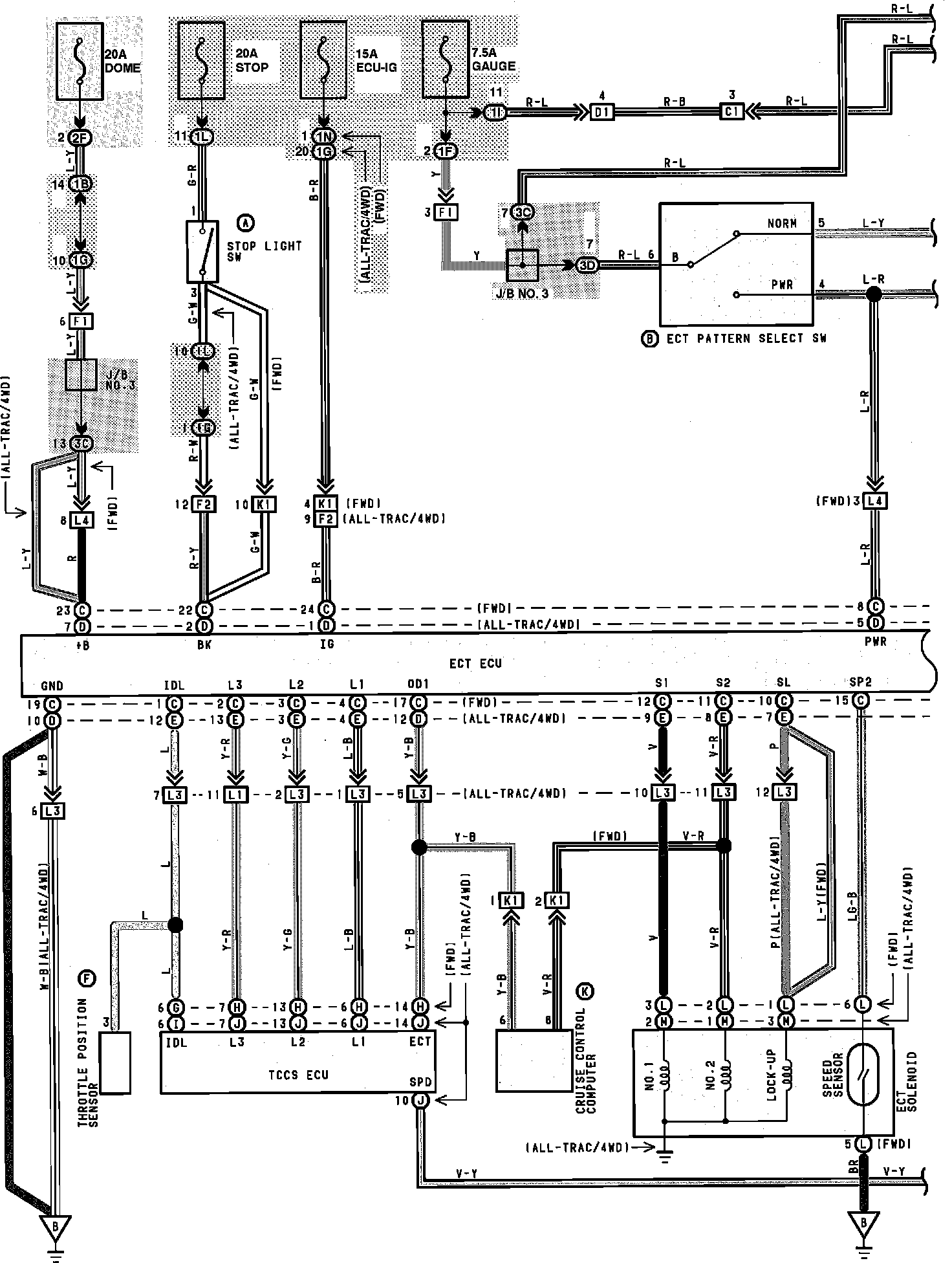

Electronic Controlled Transaxle (ECT) And Automatic Transaxle Indicator:

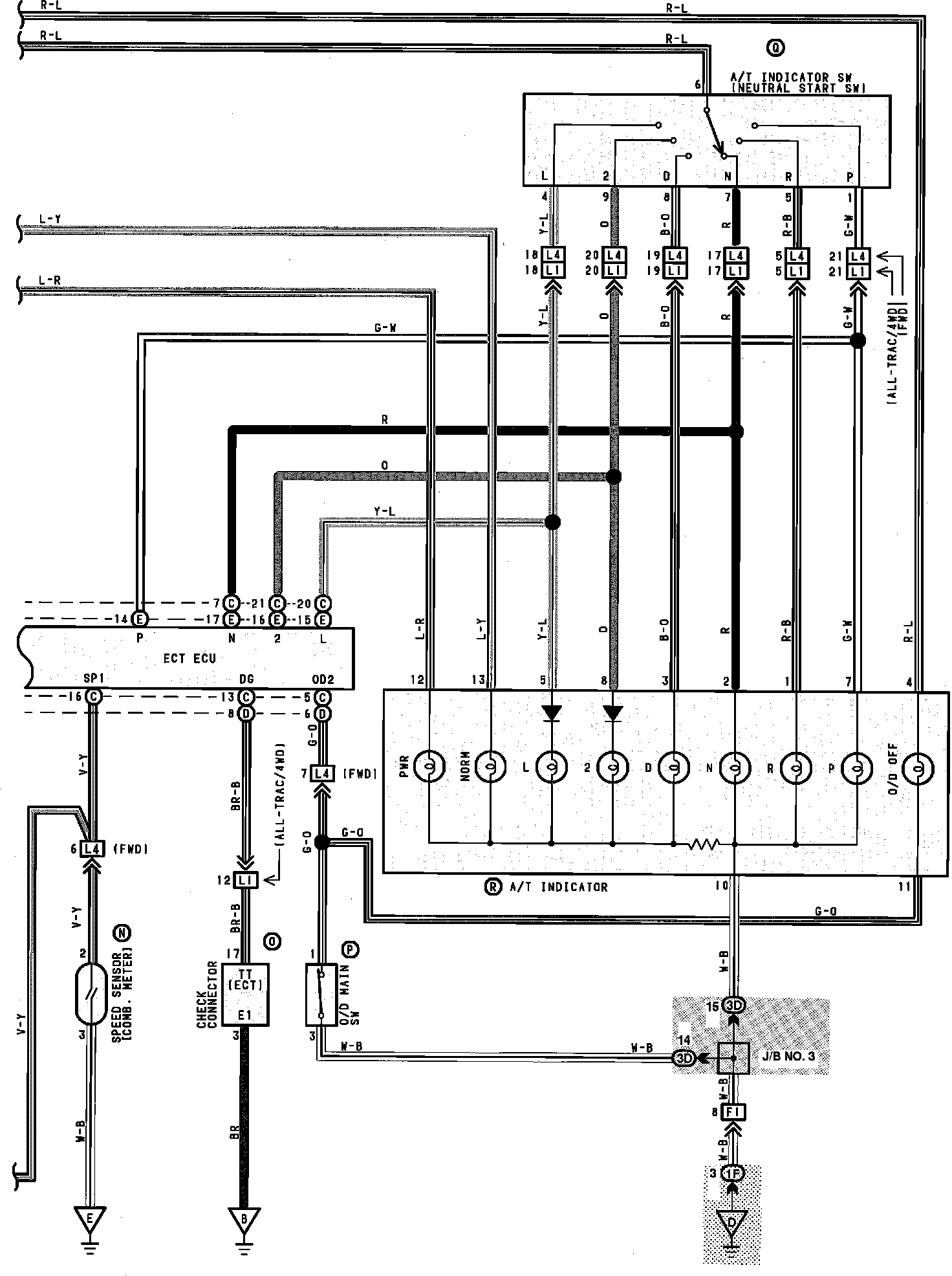

Electronic Controlled Transaxle (ECT) And Automatic Transaxle Indicator:
