Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>

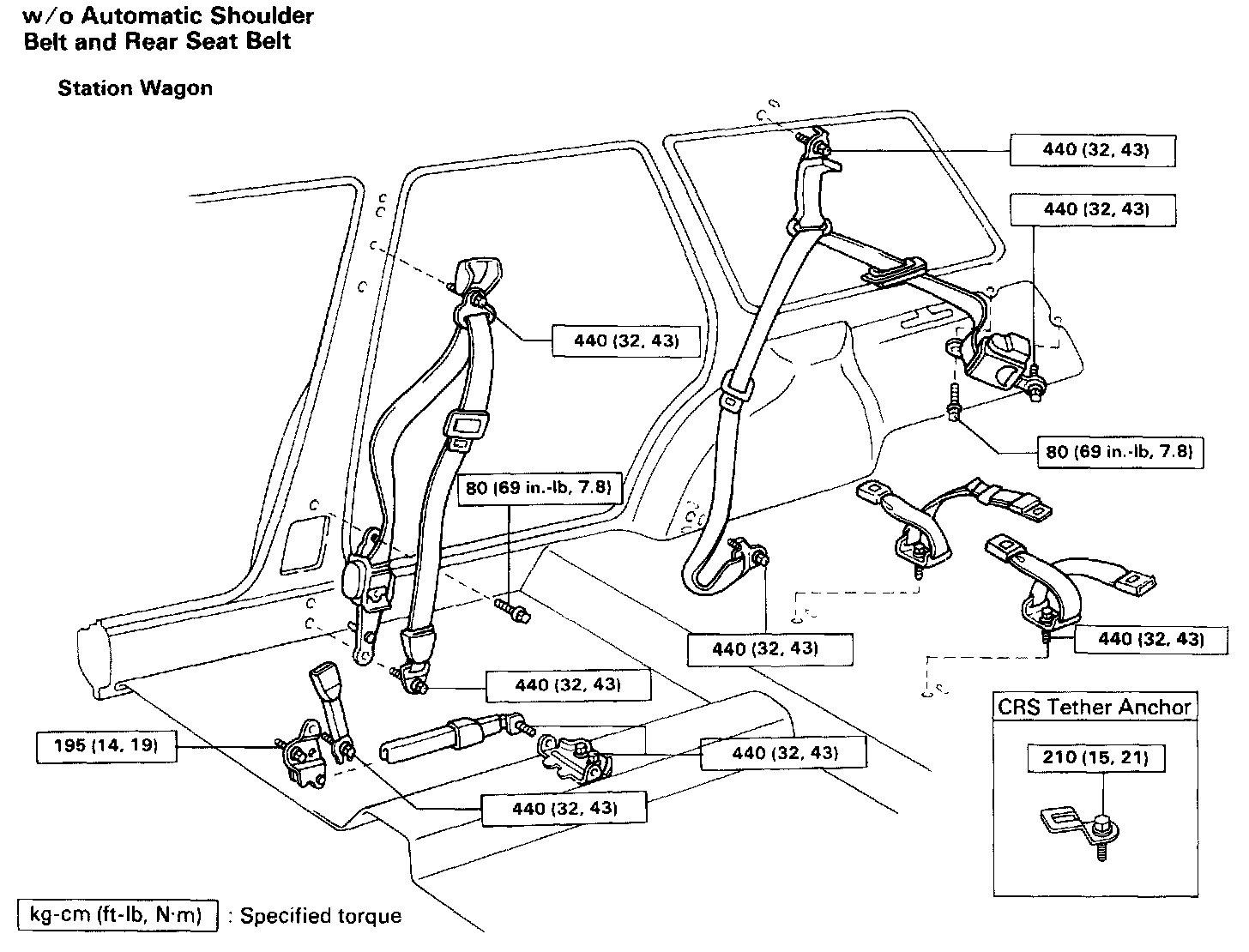

Exploded Views
Exploded Views
Part 1 Of 2:
Part 2 Of 2:
