Automatic Shoulder Belt Switch

Automatic Shoulder Belt Switch:

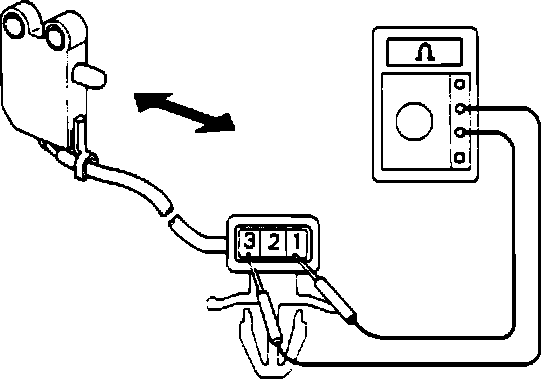

1. Disconnect automatic shoulder belt switch connector.

2. Ensure continuity between terminals #1 and #3 with switch pin pushed in (door closed).

3. Ensure continuity between terminals #1 and #2 with switch pin free (door opened).

4. If continuity is not as specified, replace automatic shoulder belt switch.
