Power Seat Switch: Testing and Inspection

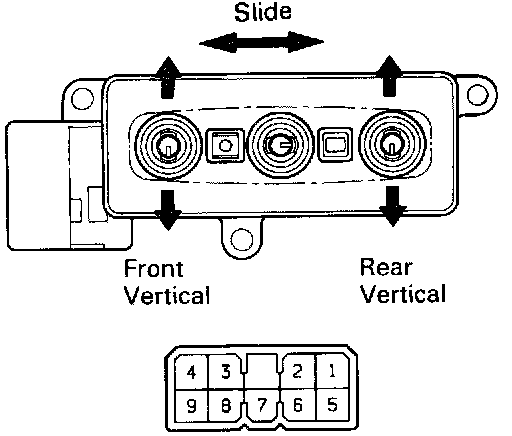

INSPECTION OF POWER SEAT SWITCH

INSPECT SWITCH CONTINUITY

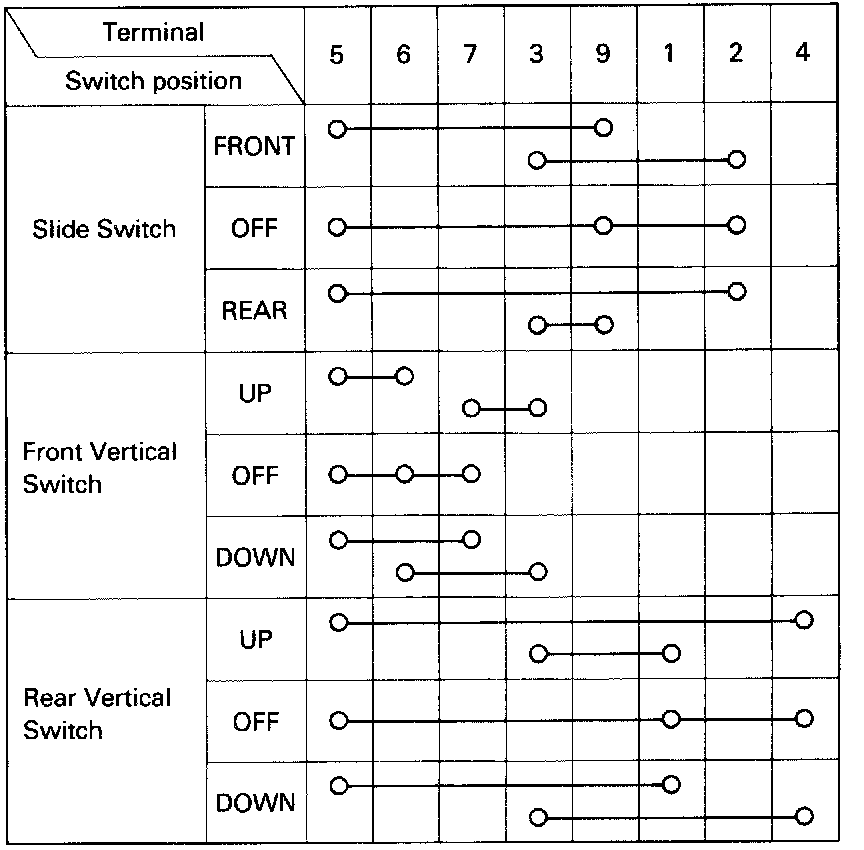

- Inspect the switch continuity between terminals.

If continuity is not as specified, replace the switch.
