Camry Wagon L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
Ignition Coil
>>
Ignition Coil Specifications
Ignition Coil Specifications

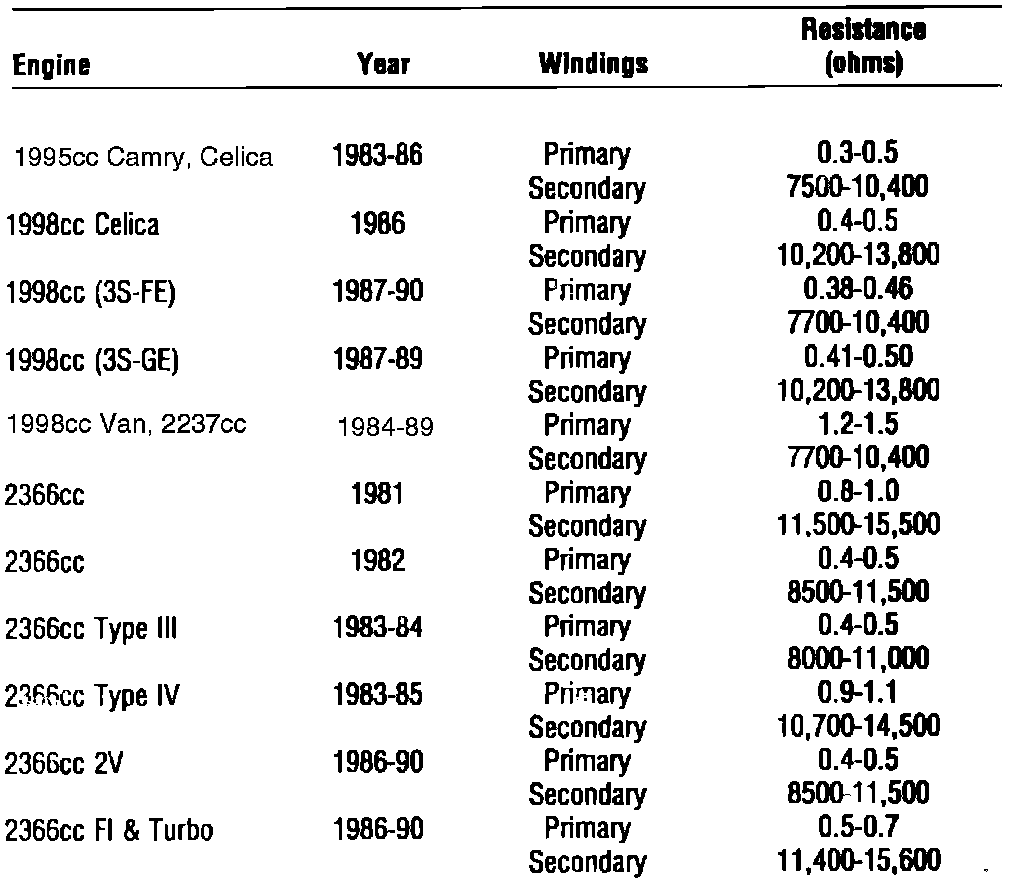

Fig. 12 Ignition Coil Specifications:
