Removal and Installation

REMOVAL AND INSTALLATION OF STEERING COLUMN
Remove and install the parts as shown.

(MAIN POINTS OF REMOVAL AND INSTALLATION)
1. REMOVE UNIVERSAL JOINT
(a) Remove the two set bolts.

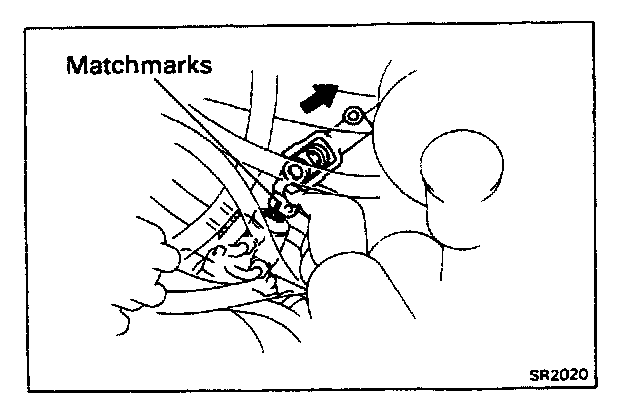

(b) Place matchmarks on the universal joint and control valve shaft.
(c) First pull the universal joint from the gear housing, and then pull it out from the main shaft.





2. REMOVE STEERING WHEEL
Using SST, remove the steering wheel. SST 09609-20011





3. CHECK STEERING WHEEL CENTER POINT AFTER INSTALLING STEERING COLUMN
