Part 3

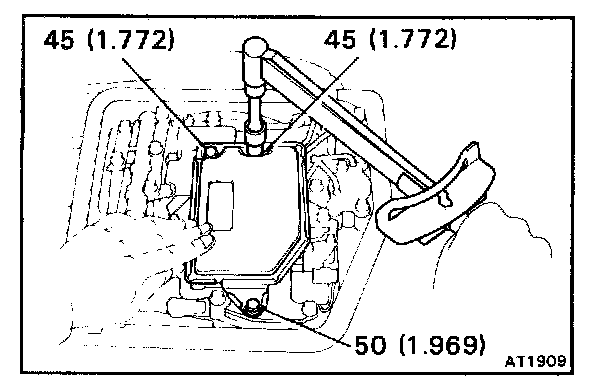

50. INSTALL OIL STRAINER
Each bolt length (mm (in.)) is indicated in the figure.

Torque: 100 kg-cm (7 ft-lb, 10 N.m)

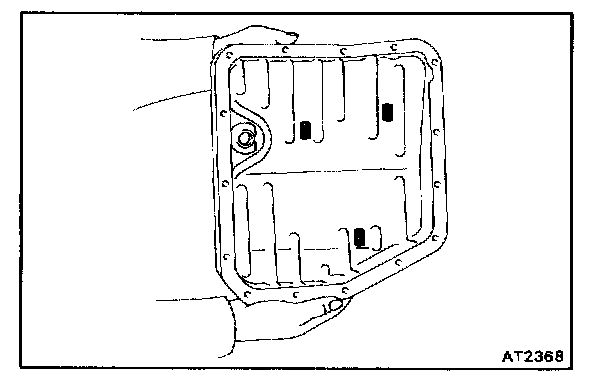

51. INSTALL MAGNETS IN PLACE AS SHOWN

NOTE: Make sure that the magnets do not interfere with the oil tubes.

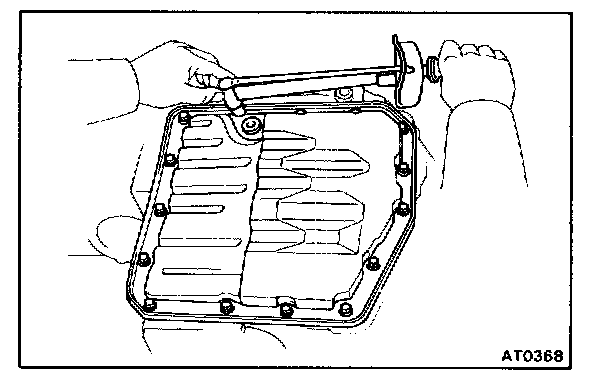

52. INSTALL OIL PAN WITH NEW GASKET

Torque: 50 kg-cm (43 in.-lb, 4.9 N.m)




53. (A140E)

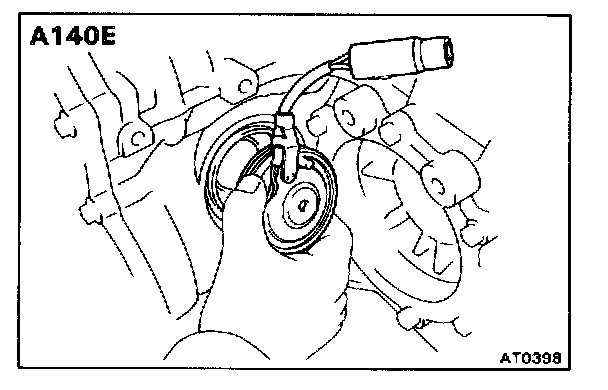

INSTALL NO.2 SPEED SENSOR
a. Install the speed sensor with a new O-ring.
b. Install the cover bracket with the two bolts.

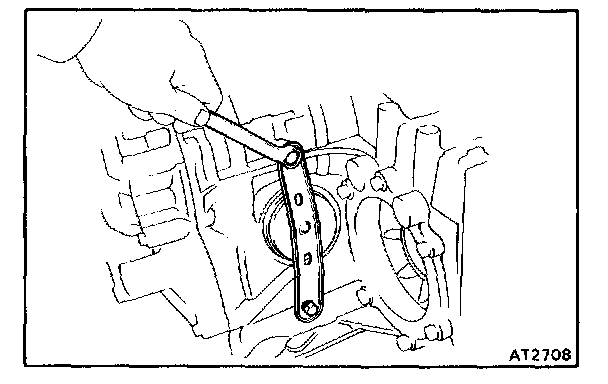

54. (140L)

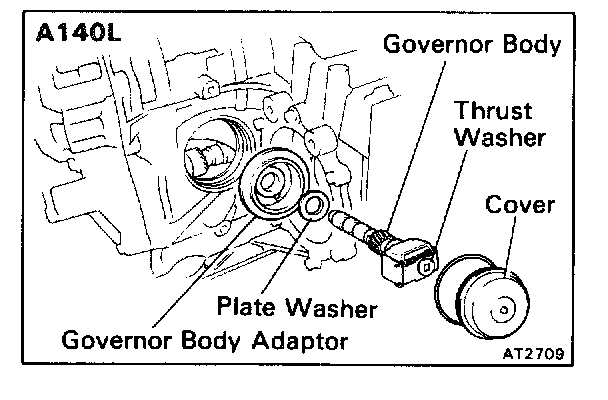

INSTALL GOVERNOR BODY
a. Install the governor body adaptor.
b. Install the governor body with the plate washer.
c. Install the thrust washer onto the governor body.
d. Install the new O-ring to the cover.
e. Install the cover to the case.




55. INSTALL COVER BRACKET




56. (A140E)
INSTALL SOLENOID WIRING RETAINING PLATE

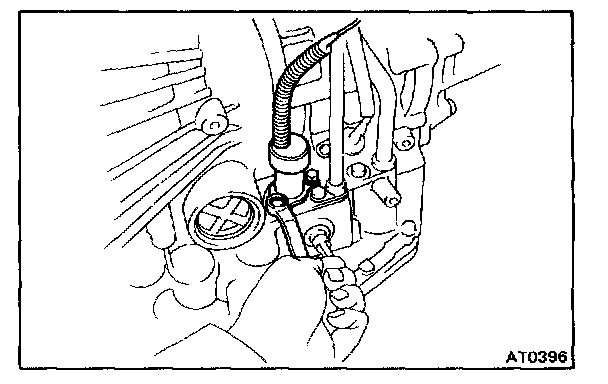

57. INSTALL THROTTLE CABLE RETAINING PLATE
58. INSTALL FILLER TUBE AND DIPSTICK

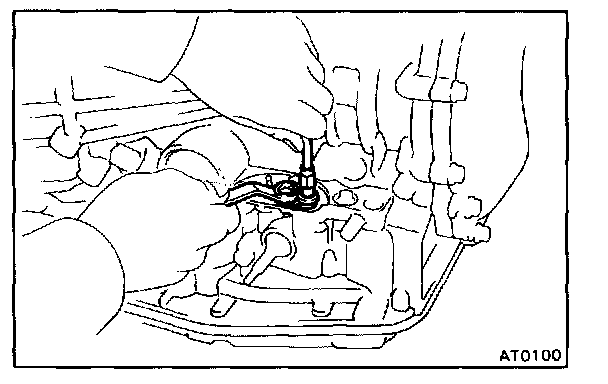

59. INSTALL SOLENOID
a. Coat the O-rings with ATF and push the tip of solenoid into the hole.
b. Tighten the two bolts evenly and gradually.

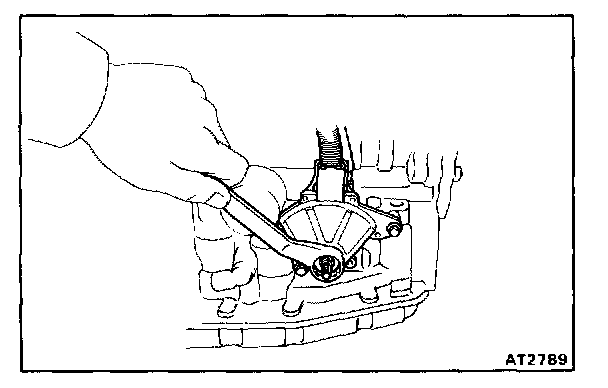

60. INSTALL NEUTRAL START SWITCH
a. Install the neutral start switch to the manual valve shaft.
b. Install the seal gasket and locking plate.
c. Tighten the nut and stake it with the locking plate.

Torque: 70 kg-cm (61 in.-lb, 6.9 N.m)

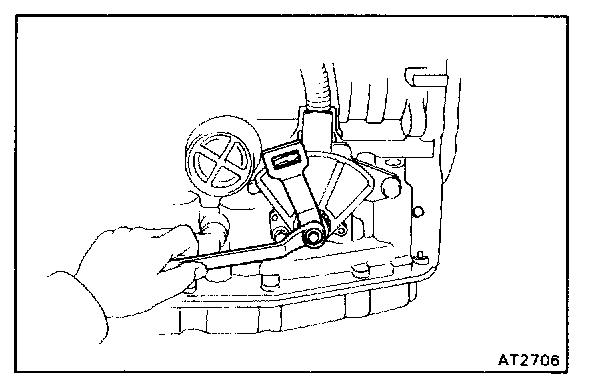

61. ADJUST NEUTRAL START SWITCH

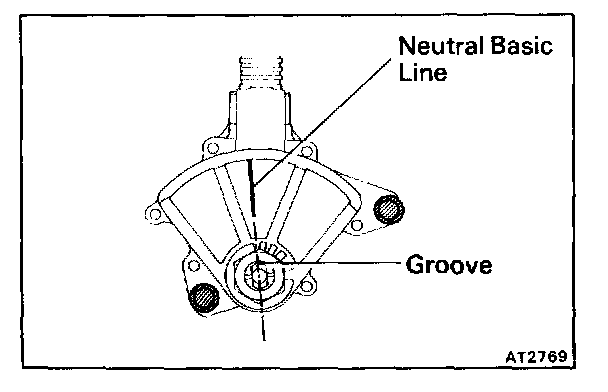

a. Align the groove and return neutral basic line.

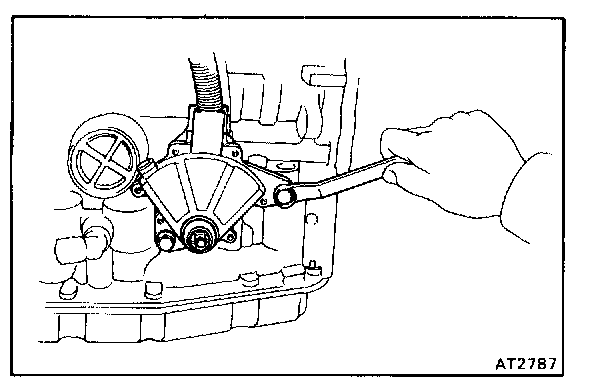

b. Lock the switch with two bolts.

Torque: 55 kg-cm (48 in.-lb., 5.4 N.m)




62. INSTALL MANUAL SHIFT LEVER

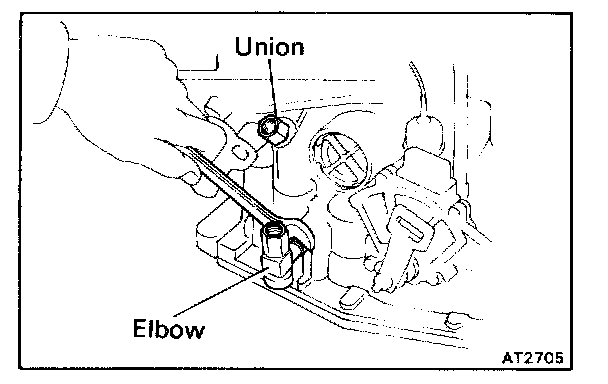

63. INSTALL UNION AND ELBOW
a. Coat a new O-rings with ATF.
b. Install the O-rings to the union and elbow.
c. Install the union and elbow to the transaxle case.

Torque: 275 kg-cm (20 ft-lb, 27 N.m)
