No.2 Speed Sensor (A140E)

NO.2 SPEED SENSOR (A140E)


REMOVAL OF SPEED SENSOR

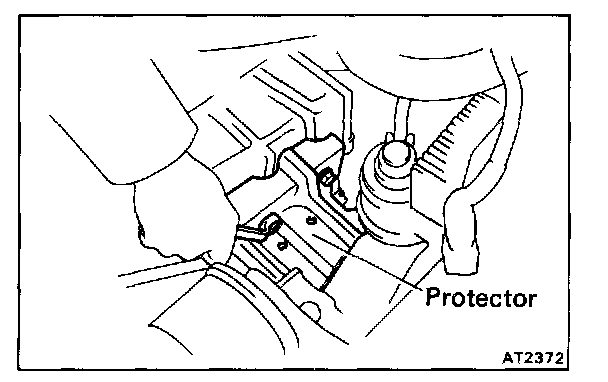

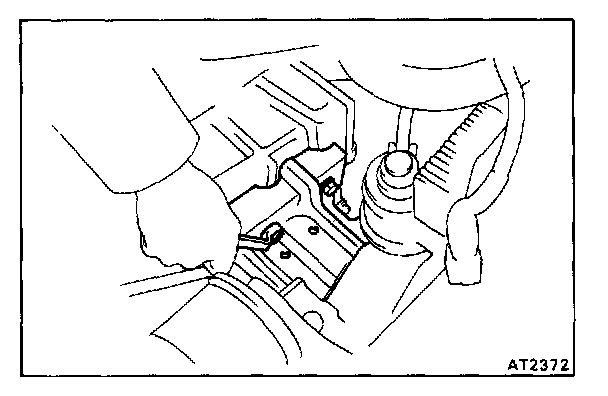

1. REMOVE TRANSAXLE CASE PROTECTOR




2. DISCONNECT SPEED SENSOR CONNECTOR

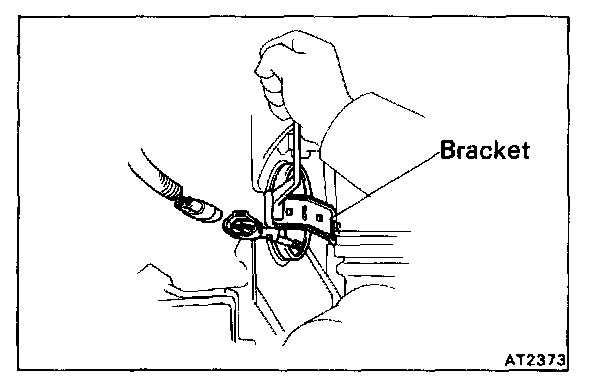

3. REMOVE BRACKET
4. REMOVE SPEED SENSOR AND O-RING

INSPECTION OF SPEED SENSOR
INSPECT SPEED SENSOR

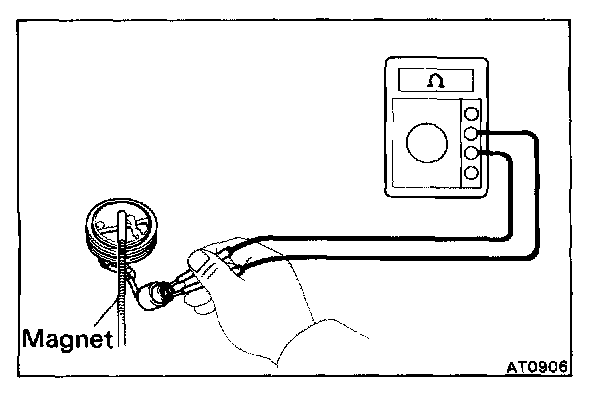

- Connect an ohmmeter to the speed sensor and check that the meter deflects when the sensor is repeatedly brought close to a magnet and removed from it.


INSTALLATION OF SPEED SENSOR



1. INSTALL SPEED SENSOR AND O-RING

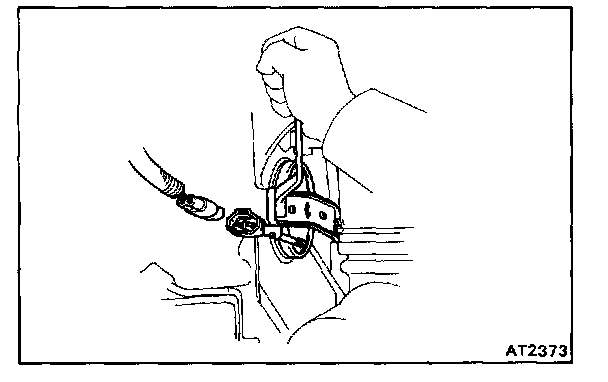

2. INSTALL BRACKET

Torque: 130 kg.cm (9 ft.lb, 13 N.m)

3. CONNECT SPEED SENSOR CONNECTOR




4. INSTALL TRANSAXLE CASE PROTECTOR
