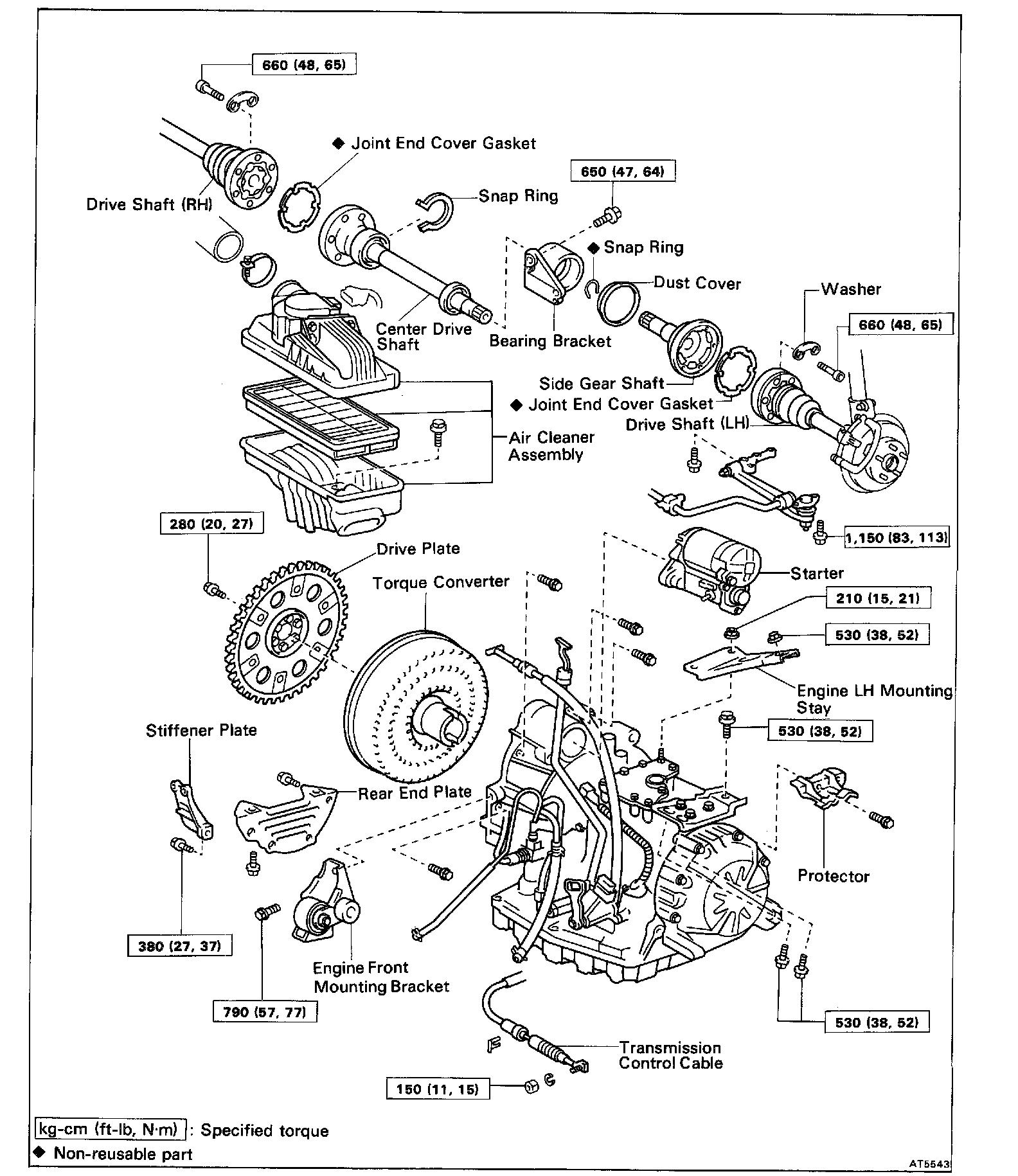

Removal and Installation

Remove and install the parts as shown.

(MAIN POINT OF INSTALLATION)

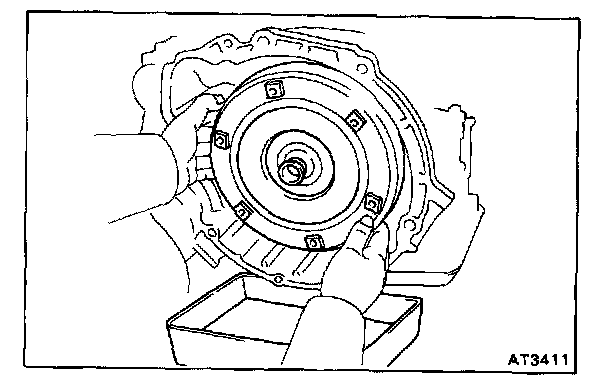

1. INSTALL TORQUE CONVERTER EN TRANSAXLE

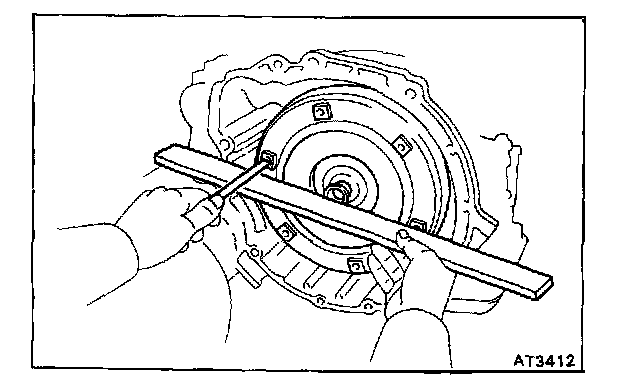

2. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the installed surface to the front surface of the transaxle housing.

Correct distance: 13 mm (0.51 in.)
